Product Description
ZLF-201 PowerNetworkBridge
Product Introduction
ZLF-200 power network bridge to take advantage of the existing power lines for data transmission, without additional wiring. Plug-and-play, as long as the power connector, two power network bridge can expand the network connection. Electricity network bridge in the power line network data transmission distance of up to 300 meters, to provide concise, easy networking solutions.
ZLF-200 power network bridge using the existing power lines maximum transfer rate of up to 200Mbps, and real-time requirements of the network applications, such as online games and multimedia applications, can achieve stability, good effect.
ZLF-200 power network bridge supports AES 128-bit encryption, simple operation can establish a secure connection, ensure the secure transmission of data. Power network bridge Group button, the button can quickly secure encrypted network set up multiple power network bridge between.
Product Features：
1. Comply with the HomePlug AV, IEEE 802.3, IEEE 802.3u standards
2. Convenient to solve IPTV wiring problem, no need to set the direct view
3 high-speed data transmission, the transmission rate of up to 200Mbps
Ultra-low electromagnetic radiation, green energy, standby only 0.5W
Through existing power lines to transfer data, plug-and-play, easy to set up a home network
6. AES128 bit encryption anti-surge, safe and reliable
7. Maximum transmission distance of up to 300 meters (theoretical)
8 compact: 6.5 * 5.6 * 3.1cm, the world's smallest
9 years warranty, quality assurance
Table of product specification parameters:
|
ZLF-201 Power network bridge
|
|
Functional description
|
Detailed description
|
|
Transmission rate at physical layer
|
Power line communication 500Mbps
|
|
Effective transmission rate
|
TCP: Up to 95 Mbps
UDP: Up to 95 Mbps
|
|
Communication frequency band
|
2~28 MHz (With Mask)
|
|
Access mode
|
CSMA/CA channel-access schemes
|
|
Quos
|
UPNP QOS DEVICE V3.0 LAYER2
|
|
Modulation mode
|
OFDM (QAM 8/16/64/256/1024, QPSK, BPSK, ROBO)
|
|
10/100 RJ-45 port
|
1 port
|
|
Distance
|
(farthest) 300m power line
|
|
Network protocol
|
IEEE 802.3, IEEE 802.3U,
|
|
Communication protocol
|
Home Plug AV, IEEE1901
Co-exists with existing Home Plug 1.0
|
|
Operating system
|
OS independent
|
|
IGMP
|
SUPPORT IGMP SNOOPING FOR IPV4
SUPPORT MLD SNOOPING FOR IPV6
|
|
Safety encryption mode
|
128-BIT AES LINK ENCRYPTION WITH KEY MANAGEMENT
|
|
LEDs
|
1. Power (green), 2. Power line Activity (green), 3. Ethernet Link/Activity (green)
|
|
Working temperature
|
0~40 ℃ (working temperature); -20~60 ℃ (storage temperature)
|
|
Relative humidity
|
Working humidity 10~85%RH, non-condensing
Storage humidity 5~90% RH, non-condensing
|
|
Power consumption power
|
FULL LOAD: < 2.5 W
STANDBY MODE: <0.5 W
|
|
Power supply specification
|
100 ~ 240V AC 50/60Hz
|

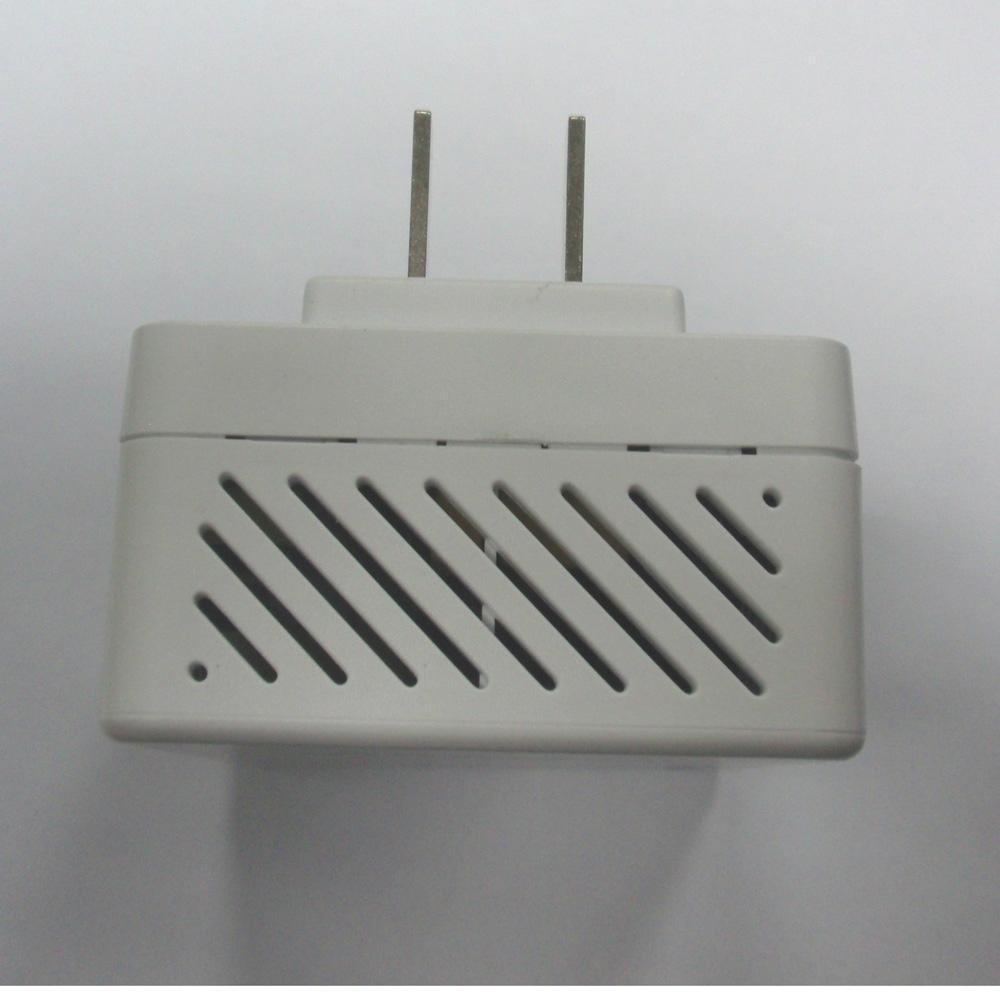

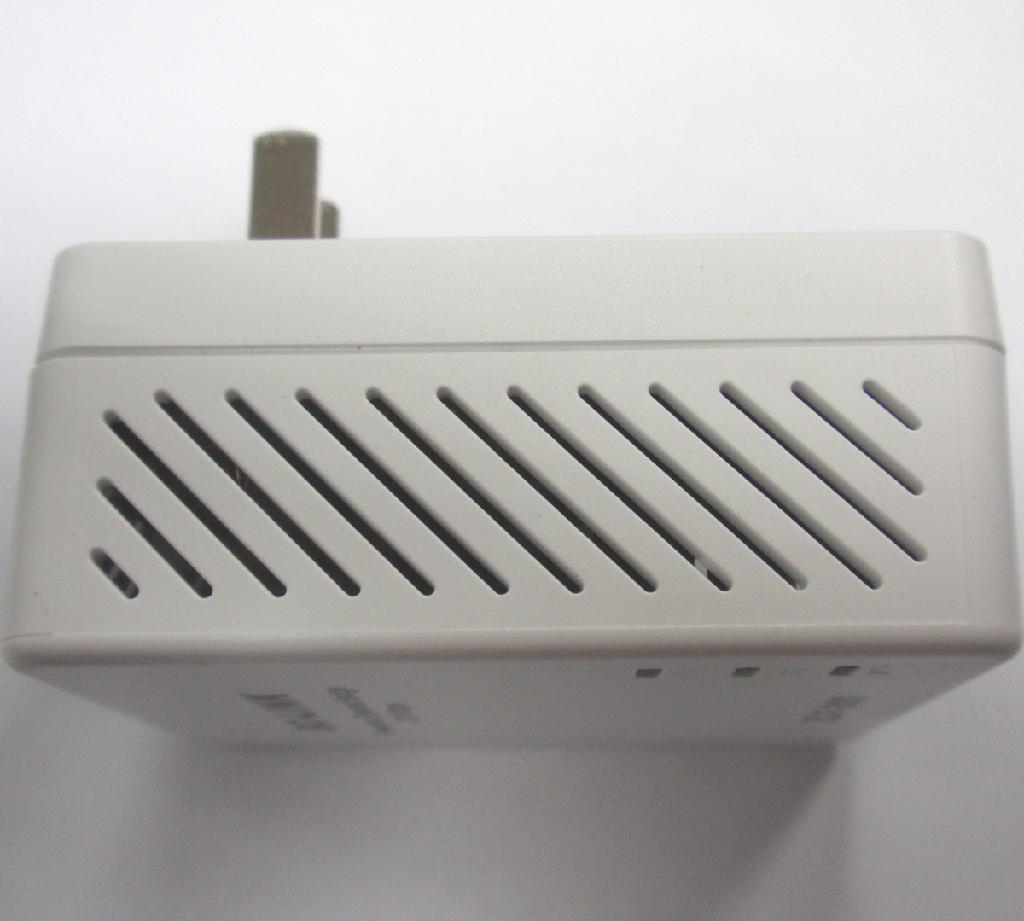

Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
