KTV equipment full range speaker box

Model:CV-6.5 CV-112
Brand:CVR PRO AUDIO
Origin:Made In China
Category:Computers & AV Digital / AV Equipment / Audio & Sets
Label:ktv equipment , speaker box , ktv speaker
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Guangzhou CVR pro-audio factory

Free MemberGuang Dong - China
Live Chat:Last Online:22 Jul, 2013

Product Description

DESCRIPTION and APPLICATION

CV-6.5 is a coxial array system which is made of a 6.5"woofers, a 1.4" titanium neodymium compression driver. a CV-6.5 will integrate seamlessly with CV-112 array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. CV-6.5 is veryversatile and scalable for a wide range of applications in touring performance,
corporate and fixed installation fields. CV-112 is a dedicated high performance sub-bass system designed to augment the low frequency output of  CV-6.5. CV-112 is a sub-bass enclosure which must be flown with CV-6.5. So its physical dimensions are identical to the CV-6.5 and it is equipped with the same proprietary rigging system. It features with a 12"woofers with magnet structure and suspensions engineered for maximum linear excursion.



 Model  CV-6.5 & CV-112
 Type  Coxial array system
 Array sub-bass system(CV-112)
 Frequency Response  80Hz-20KHz±3dB
 42Hz-150Hz±3dB(CV-112)
 Directivity index(Dl)  12(±2)1.2KHz-16KHz
 Power handing  LF 150W(RMS)300W(PEAK)
 HF 30W(RMS)60W(PEAK)
 400W(RMS)800W(PEAK)(CV-112)
 Sensitivity  LF 95dB(1W@1M)
 HF 108dB(1W@1M)
 106dB(1W@1M)(CV-112)
 Max@S.P.L  LF 117dB(PEAK/1M)
 HF 120dB(PEAK/1M)
 132dB(PEAK/1M)(CV-112)
 LF section  6.5"(170mm) woofer
 50mm(2in)coil
 Components  12"(310mm) woofers
 100mm(4in)coil(CV-112)
 Nominal impedance  8 ohm
 8 ohm(CV-112)
 HF section  1×1.4"neodymium compression driver
 with 34mm titanium diaphragm
 Nominal impedance  8 ohm
 Output section  2-channel
 Dispersion pattern  90°
 Finish  Black paint
 Speaker cables  LF /HF 1(+)1(-)
 1(+)1(-) (CV-112)
 Rigging system  Please refer to the CV-6.5 user
 manual before any operation
 Input connectors  2×NL4MP speakon
 Recommend crossover  LF 60Hz-1200Hz
 HF 1200Hz-20KHz
 35Hz-120Hz(CV-112)
 Dimensions  190×380×315mm(W×H×D)
 384×380×476mm(W×H×D)(CV-112)
 Package dimensions  260×450×385mm/0.05cbm
 455×450×545mm/0.11cbm(CV-112)
 Enclosure  Plywood
 Net weight  10kg(CV-6.5 / 21kg (CV-112)
 Gross weight  12kg(CV-6.5) / 24kg (CV-112)



Payment Terms:T/T, 50% deposit start production, 50% paid off before shipping
Packing:quality carton
Lead Time:30 days
Standards Certificate:CE

Product Image

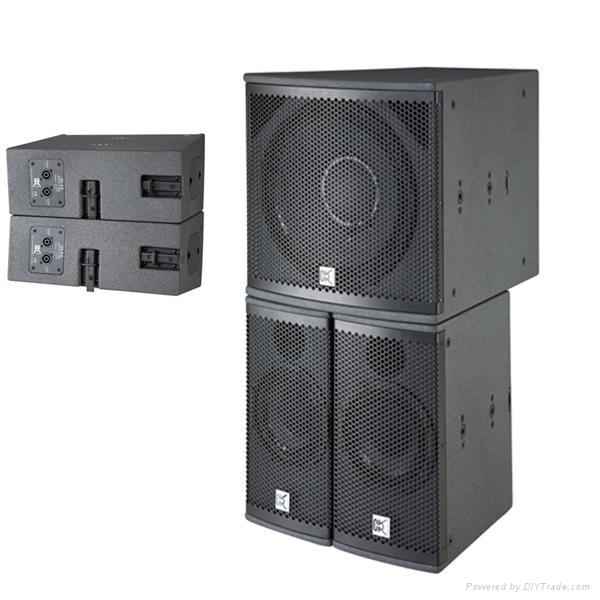

KTV equipment full range speaker box 1
