| Model: | KS-09Q |
|---|---|
| Brand: | KINGSING |
| Origin: | Made In China |
| Category: | Industrial Supplies / Electrical & Electronic Product Equipment |
| Label: | coax cable stripper , coaxial stripper , coax stripping |
| Price: |
US $25000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:01 Jul, 2015 |
Features:

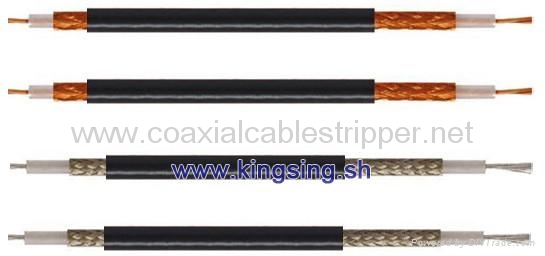

The full-automatic coaxial cable cutting and stripping machine have two rotary cutter, so it can strip wire head and wire tail at the same time, very high speed and accuracy. Color touch screen, very easy to operate.
Specifications:
Availabel wire size: 0.80 ~ 4.99mm
Cutting Length: 30.0 ~ 9999.9mmm
Max. Stripping Length of Wire Head: 40.0mm
Max. Stripping Length of Wire Tail: 20.0mm
Max. Stripping Layers: 5 layers
Cutting Depth Accuracty: 0.01mm
Stripping Method: High Accuracy Rotary Cutter
Operation Interface: Color touch screen.
Speed: 600~700pcs/hour (Example: Length=100mm, Both side strip 3 layers)
Power: 220V / 50Hz 400W
Dimension: 1150×1017×880mm
Net. Weight: 130Kg
| Payment Terms: | 100% TT in advance |
|---|---|
