Movable Partition Wall

Model:80
Brand:dahong
Origin:Made In China
Category:Construction & Decoration / Decoration Materials / Other Decoration Materials
Label:Movable Partition , Partition Wall , Active partition
Price: US $80 / pc
Min. Order:10 pc
Inquire Now Add to Basket

Member Information

Detail

Foshan Dalai Partition Co., Ltd.

Biz MemberGuang Dong - China
Live Chat: Chat Now
点击这里给我发消息Last Online:25 Aug, 2019

Product Description

Painting Finishing 53dB Soundproof Movable Partition Wall For Hotel


Movable Partition Wall’ solution is to keep efficient open spaces by the use of movable walls. Let us help you find the best flexible solution for your environment and turn the room you have into the space you need.

Application

·         Executive boardrooms

·         Employee workspaces

·         Reception areas

·         Other interior locations

·         Hotel

·         Executive offices

·         Managerial offices

·         Administrative areas

·         Conference rooms

·         Training rooms

·         Call Center

Features&Benefit

·         Strong aluminium frame construction for demanding condition.

·         Hinged panels or single panel for quick and easy operation.

·         Wide range of surface finishes.

·         Passdoor insert in panel enabling access to adjoining rooms.

·         Parking one or both ends.

·         Top hung and floor with Rubber seals achieving excellent soundproof effect.

We offer:

1.    A full professional design service

2.    Using top quality materials and components

3.    Survey and installation guide and assistance

4.    A fully experienced work team

5.    Maintenance contracts- to ensure your valuable asset remains in full work order

General Description

Panel Width:

Each panel 600mm-1200mm.

Track:

Aluminum Track

Roller on panel:

Single or double roller.

Panel Frames:

Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.

Top&bottm seals:

Top and bottom pressure retractable seals ensure effortless moved and locked.

Module:

700mm - 1200mm maximum.

Panel stacking:

Numerous panel stacking options for complete flexibility.

Panel face:

MDF,Plywood, woven fabric, Leather,Faux wood veneer, Melamine,, etc.

Finishes:

Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.

Product Selector

TYPE

865

880

8100

Panel suspension

Top hung only

Top hung only

Top hung only

Track system

Single or twin point

Single or twin point

Single or twin point

Panel thickness

65mm

88mm

100mm

Panel height

Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept

Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional

Max height

4000mm with heavy duty track

6000mm with heavy duty track

18000mm with heavy duty track or steel track

Panel width

600-1200mm

600-1200mm

600-1200mm

Frame construction

Aluminium/steel

Aluminium/steel

Aluminium/steel

Face material

12mm

12/15/18mm

12/15/18mm

Fire safety

optional Class I or O

optional Class I or O

optional Class I or O

Vertical profiles

Aluminium,anodised with sealing profiles,painted-optional

Aluminium,anodised with sealing profiles,painted-optional

Aluminium,anodised with sealing profiles,painted-optional

Retractable seals

Aluminium,black with double rubber seals

Aluminium,black with double rubber seals

Aluminium,black with double rubber seals

Operation of seals

Manual,with supplied operating handle

Manual,with supplied operating handle

Manual,with supplied operating handle

Locking

Optional lock to pass doors

Optional lock to pass doors

Optional lock to pass doors

Pass Doors

Single open in oanel or double open in two panel

Single open in oanel or double open in two panel

Single open in oanel or double open in two panel

Sound insulation

40,44,47,50dB Rw

40,44,47,50,53dB Rw

40,44,47,50,53,58dB Rw

Weight

Approx 33-40kg/sq M

Approx 43-50kg/sq M

Approx 63-70kg/sq M







dnmovablepartition


Product Image

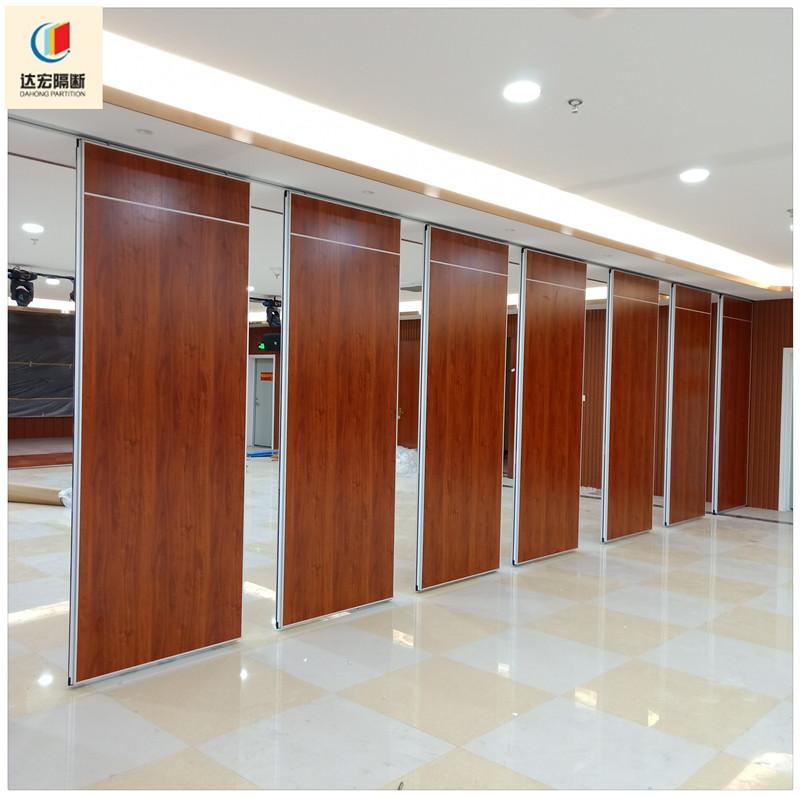

Movable Partition Wall 1
