elbow hot forming hydraulic press machine Гидравлический толкать система колен

Model:YWT-4
Brand:Fengliyuan
Origin:Made In China
Category:Industrial Supplies / Other Industrial Supplies
Label:hydraulic , medium frequency , welded
Price: US $40000 / set
Min. Order:1 set
Inquire Now Add to Basket

Company Information

Detail

Hebei Yanshan Fengliyuan Pipe Fittings Equipment Manufacture Co.,Ltd

Free MemberHe Bei - China
Live Chat:
Last Online:24 Oct, 2017

Product Description

E-Mail: flygjsb@126.com

Skypeshonepole

Mobile:0086-13283260069

TEL:+86-317-6193236/6193226

Yanshancounty Fengliyuan Pipe Fittings Equipment Manufacture Co.,Ltd  CN

Skype shonepole

http://www.flygjsb.com/English/   http://www.made-in-china.com/showroom/flygjsb

http://www.tradesparq.com/users/87292/Empon-Shing#profile-product-list

video link:  http://i.youku.com/u/UNjEzNTc5OTE2

The Main Technical Parameters of The Machine

1  The oil cylinder:ID 360mm, the rod:Ф260mm ,the effective trip: 6.5m,  pressure:21Mpa,2 bars

The maximum thrust of the 2 cylinders:420 tons;   The working speed: 0—80cm/min ,

The max backward speed: 380cm/min.

2  The pump station:

63scy-plunger pump :2 set, 18.5KW  Motor:  2sets (the main working pump)

   PV2R13-23-116 double vane pump 1 set,15kw motor 1 set.

The hydraulic valve is integrated oil rout, hydraulic back fork gate. Automatic feeding.   an adjustable shelf (height and width)for the heating coils

3.  The frame for the machine body: 30# channel steel, welded  with 43kg steel   rail

4  The panel for the main engine: welded with 40-50mm medium steel sheet.

5  Distribution cabinets, operation box 1 set

6  Intermediate-frequency power (power 600KW  380v、220v、50/60Hz)


Product Image

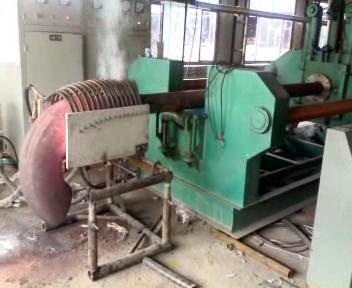

elbow hot  forming hydraulic press machine  Гидравлический толкать система колен 1
Img 1

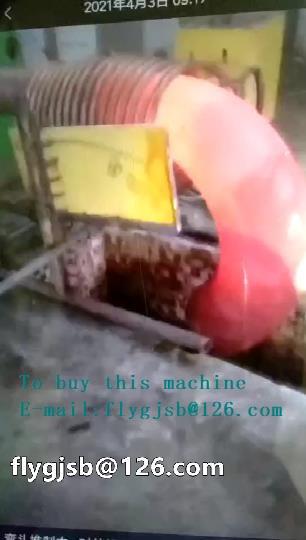

elbow hot  forming hydraulic press machine  Гидравлический толкать система колен 2
Img 2
elbow hot  forming hydraulic press machine  Гидравлический толкать система колен 3
Img 3
elbow hot  forming hydraulic press machine  Гидравлический толкать система колен 4
Img 4
elbow hot  forming hydraulic press machine  Гидравлический толкать система колен 5
Img 5
