| Model: | JL-25KW |
|---|---|
| Brand: | Jinlai |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Welding Machinery |
| Label: | induction heating , induction heater , induction welding |
| Price: |
US $1500
/ pc
|
| Min. Order: | 1 pc |
| Last Online:07 Feb, 2015 |
HF-25 High frequency welding machine
Main characteristics:
1. Adoping MOSFGT and IGBT inverting device, tracking frequency automatically
2. High frequency, heated quickly, its powei consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.
3. Security and reliability, the equipments have the secure voltage and it's secure to operate
4. Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc
5. It has no open-fire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company

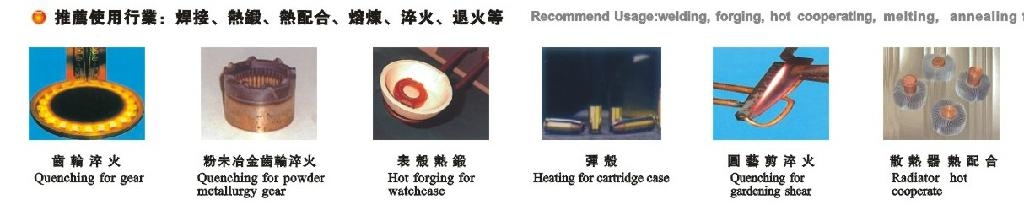

6. Recommend usage: Weld, forging, hot cooperate, melting, quenching, anneat etc
Specifications:
|
Model |
JL-25KW |
|
|
Input power desire |
3 phase 380V 50-60HZ |
|
|
Oscillate power max |
25KW |
|
|
Oscillate frequency |
30-100KHZ |
|
|
Cooling Water desire |
>0.2MPa 2-5L/Min |
|
|
Duty cycle |
80% 30°C |
|
|
Cubage |
Generator |
480x240x400mm |
|
Transformer |
||
|
Net Weight |
28kg |
|
|
Cable length |
2-6(Meters) |
|
|
Packing |
Wooden case |
|
|
Model |
JL-25KW |
|
|
Input power desire |
3 phase 380V 50-60HZ |
|
|
Oscillate power max |
25KW |
|
|
Oscillate frequency |
30-100KHZ |
|
|
Cooling Water desire |
>0.2MPa 2-5L/Min |
|
|
Duty cycle |
80% 30°C |
|
|
Cubage |
Generator |
480x240x400mm |
|
Transformer |
||
|
Net Weight |
28kg |
|
|
Cable length |
2-6(Meters) |
|
|
Packing |
Wooden case |
|
Our Jinlai Induction Heating Machine is divided into four series according to output frequency:
1) Medium Frequency Series(JLZ): 1KHZ-20KHZ
2) Ultrasonic Frequency Series (JLC) : 10KHZ-30KHZ
3) High Frequency Series (JL) : 30KHZ-100KHZ
4) Ultrahigh Frequency (JLCG) : 100KHZ-1.1MHZ
