| Model: | 30AWG- 16AWG |
|---|---|
| Brand: | AKITA HILL |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Optical Fiber, Cable & Wire / Electric Wire & Cable |
| Label: | XLPVC Wire , XLPVC WIRE , XLPVC WIRE |
| Price: |
¥0.5
/ M
|
| Min. Order: | 610 M |
| Live Chat: |  | Last Online:30 Apr, 2024 |
Production Description
★ Rating:105℃ 300V

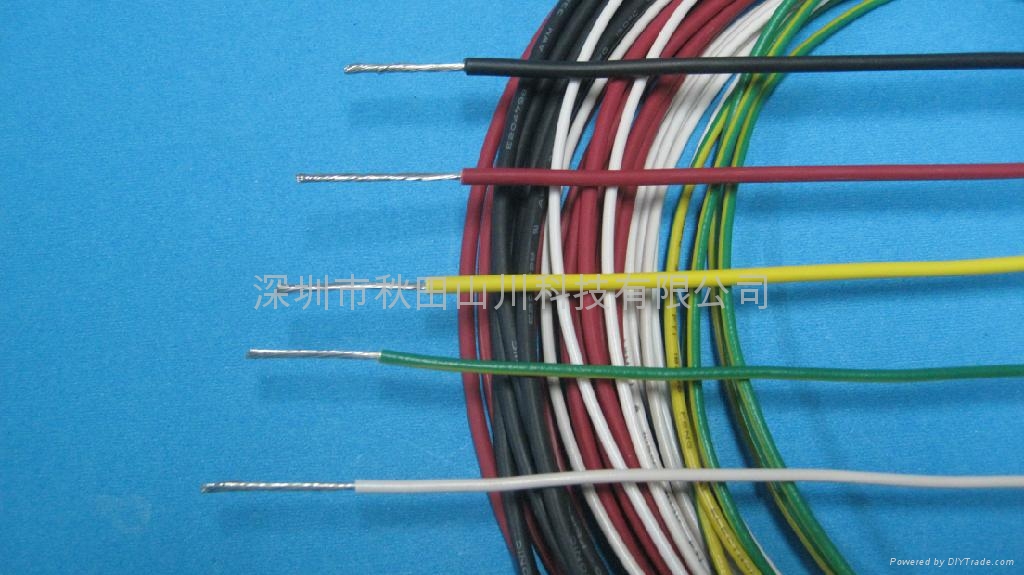

★Insulation:XLPVC
★ Conductor:single,stranded tinned or bare copper
★ Good excellent resistance to chemical aggressions
★ Excllent resistance to flammable:passed VW-1(UL) and FT1(CUL) flame test
★ Color:all colors,including transparence
★ Use:Internal wiring of electrical appliances,electronic
devices and computers
Spcecification
|
Conductor |
Insulator |
Resistance |
Packing |
||||
|
SIZEAWG |
Sectionmm2 |
No/mm |
Diameter mm |
Avg. Thickness mm |
OD. mm |
（20℃）Max.Ω/km
|
m/roll |
|
30 |
0.0507 |
1/0.254 |
0.254 |
0.40 |
1.06 |
361 |
610 |
|
7/0.10 |
0.30 |
1.10 |
381 |
||||
|
28 |
0.0804 |
1/0.32 |
0.32 |
1.12 |
227 |
||
|
7/0.12 |
0.36 |
1.16 |
239 |
||||
|
26 |
0.128 |
1/0.404 |
0.404 |
1.20 |
143 |
||
|
7/0.16 |
0.48 |
1.28 |
150 |
||||
|
24 |
0.205 |
1/0.511 |
0.51 |
1.31 |
89.3 |
||
|
11/0.16 |
0.61 |
1.41 |
94.2 |
||||
|
22 |
0.324 |
1/0.643 |
0.643 |
1.45 |
56.4 |
||
|
17/0.16 |
0.76 |
1.56 |
59.4 |
||||
|
20 |
0.519 |
1/0.813 |
0.813 |
1.62 |
35.2 |
305 |
|
|
26/0.16 |
0.94 |
1.74 |
36.7 |
||||
|
18 |
0.823 |
1/1.02 |
1.02 |
1.82 |
22.2 |
||
|
16/0.254 |
1.21 |
2.01 |
23.2 |
||||
|
41/0.16 |
1.18 |
1.98 |
23.2 |
||||
|
16 |
1.31 |
1/1.29 |
1.29 |
2.09 |
14.0 |
||
|
65/0.16 |
1.49 |
2.29 |
14.6 |
||||
