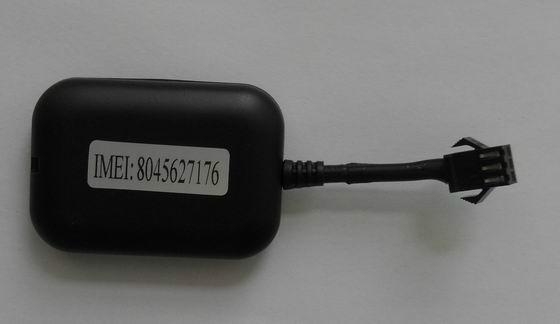

| Model: | RA05 |
|---|---|
| Brand: | Rilla |
| Origin: | Made In China |
| Category: | Transportation / Car Accessories / Car Safety Products |
| Label: | motorcycle gps track , tracker gps , cheap gps tracker |
| Price: |
-
|
| Min. Order: | 5 pc |
| Live Chat: | Last Online:13 May, 2013 |
1.Set alarm way:Editor the message : #720#(0-3)#0000## to SIM card of the device. (0 is not alarm, 1 dial-up alarm, 2 text messages, 3 dial-up + SMS warning alarm)
2.Mobile phone alarm: Binding master number, sent message: # # 711 number # 0000 # 1 # # (number immediately give priority to hand), each device can be set up nine number, from 1 to 9 order set mobile phone binding number.
3.Electronic fence: Send text messages: 681 + password (default: 0000) to equipment SIM card to open.
4.Cancel fence: Send text messages:6800000 to equipment SIM card to cancel.
5.Query: Position,Editor the message :8880000 to the locator,system will reply locator current position with SMS. Editor the message : 6660000 to the locator,system will reply locator current position with SMS,Mobile phone direct track online.
6.tamper alarm: The electric power lost will give host phone call.
7.Vibration alarm: 6830000 is open, the 6840000 is shut down vibrations. Vehicle vibration, will automatically send a message to binding number.
8.online query:website: m.gps588.com (the user name is a 15 IMEI
number in each device.the number is unique, account is last 8 IMEI number, password is 123456)
9.Set APN command:# 802 # APN# user name #password # last 4 password## (Example::#802#APN#000000#0000##)
10.Set server address command: #134# server address or domain name # port number # password ##( Example:#134#m.gps588.com#8469#0000##)
Matters needing attention:
1 Motor is usually 48V, in high speed running, up to 80V, equipment easy to burn, So when in installation must pick one to two blocks to the anode and cathode, can be safe to use.Because each battery is 12V, two battery series is 24V so we controllable voltage should not exceed 58V.
2 If not installed correctly, causing the device to burn at your peril.
Special statement:
1.the product have technology to change without prior notice
2.Product appearance and color is subject to change, in kind prevail.
3.Warranty card is only applicable to the IMEI number listed machines.
4.Please keep the card, show this card and the original purchase documents when guarantee.
5The specific scope under warranty please see table explanation.
