Product Description

PRODUCT DESCRIPTION

It has an independent computer control console, and it’s a high-precision dual-head automatic knife grinding machine, it is full-feature, its appearances are grand, its design is advanced and the operation of its equipments is humanized. It is the knife grinder equipment which represents advanced productive forces

It is made according to years of knife grinder’s precision manufacturing experience and absorbs the advanced technology from Germany. It is a new type of grinding machine which sets sharpening, polishing in one. The main electrical and main parts’ bearing adopt the imported original ones, and it has reached the technological level of imports of similar knife grinders.

Its gantry-type body adopts carbon constructional quality steel which has been heat treatment; its wheelhead transmission is rolling positioning linear guide. The water-cooled motor patented technology allows the cooling water spray from the wheel center so that the effect of cooling becomes better. The rotation speed of wheelhead and grinding wheel are controlled by the inverter, the speed of them are adjustable. The paste-type cylindrical grinding wheel can extend 1 / 3 service life more, the polishing woolwheel can fully debur the blade.

It is widely used in straight blade such as paper-cutting tools, plastic cutting tools and cloth cutting tools, wood working tools, doctor blade ,tools for press brake and shearing machine etc.

It is an ideal grinding equipment for the printing, paper, wood, plastic leather, making panels and other industries, and it is the best choice for the grinding centers.

MAIN FUNCTION CHARACTERS:

Wheelhead System

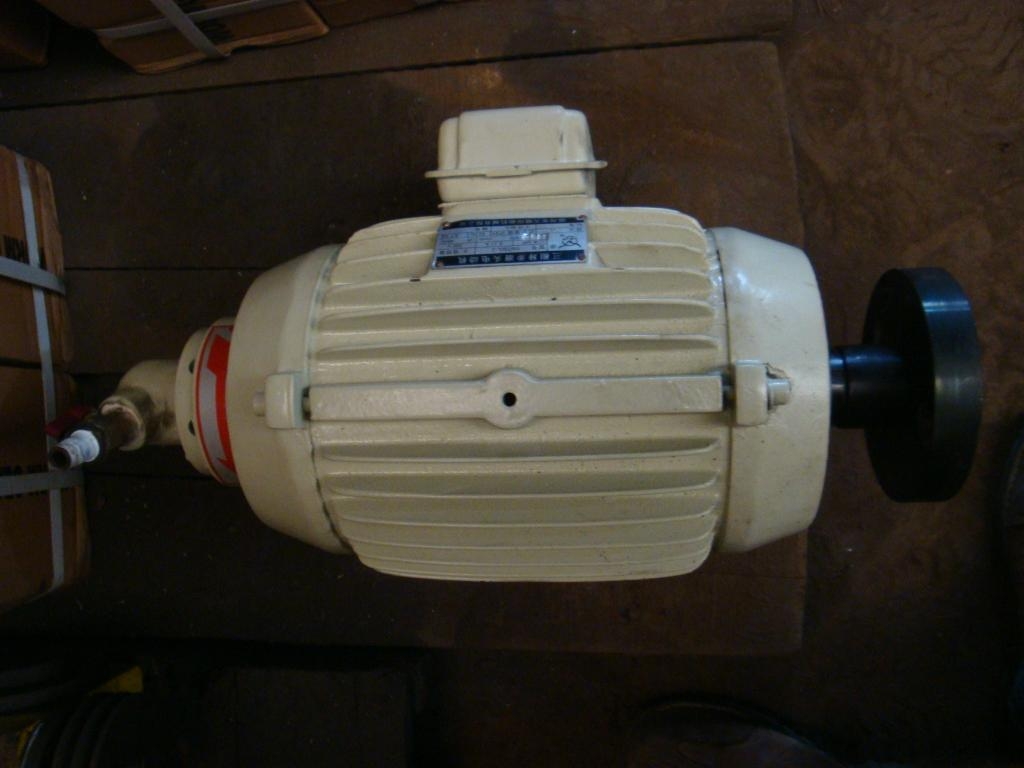

01. Water-cooled motor (patent): cooling water emitted from the central wheel, center so that the effect of cooling become better

02. Wheelhead can move back and forth

Drive Mechanism

01. Sprocket chain drive

02. Transducer timing devices: travel speed and the wheelhead speed adjustable

Machine Structure

01. Gantry-type body: carbon constructional quality steel which has been heat treatment

02. Rolling positioning linear guide: Rail can be replaced, the life of machine is more longer, the maintenance costs of machine is more lower, the travel transmission of machine is more stable

Loading Knife Structure

01. Electric magnetic chuck: uniform suction, milling knife is more straight-line, effectively improved the work efficiency

Main Function Deployment

01. Centralized refueling devices: lubricating the main box, lift pallet, elevated screws

02. Grinding wheel automatic feed: automatic feed to grind knife

03. The polishing wheel head removes the knife chip devices: using combined wool wheel polishing, can fully remove the knife chip

Optional Device

01. Imports of electrical components: Schneider electric (optional, costs excluded)

02. Scraper Clamp: dedicated for toilet paper device (optional, costs excluded)

MAIN TECHNICAL PARAMETERS

Items			Parameters
maximum size of workpiece (mm)	length		see maximum grinding length
	width		200㎜
	thickness		60㎜
rotation range of knife block	±90°
round-trip speed of grinding head	3-15 m/min (frequency control of motor speed)
grinding wheel speed	face grinding head(right)		10-60HZ
	polishing grinding head (left)		10-60HZ
tilt angle of grinding head	face grinding head(right)		0-5° (movable 50mm fore-and-aft )
	polishing grinding head (left)		3°
the largest amount of vertical movement of grinding head	face grinding head(right)		90㎜
	polishing grinding head (left)		60㎜
range of feeds	single-stroke automatic vertical		0-0.05
each grid of dial	2°
handwheel per tooth	vertical feed		0.01㎜/tooth
dimension of worktable	length		Subject to specification size
	width	1600mm-2400mm	140㎜
		2600mm-2800mm	165mm
		3000mm-6000mm	200mm
size of wheel	wheel of face grinding head		Ø200×Ø150×100
	wheel of polishing grinding head		Ø120×12×Ø18㎜
motor power(KW)	motor of grinding wheel head		4 KW
			polishing grinding head Y90L-4 1.5kw
	reciprocation motor		0.55KW
reciprocation motor power(KW)	cooling pump		0.25KW
magnetic chuck motor			0.5KW

Specification / Model	Max. grinding length( mm)	Outlook size( mm)	Machine net weight( Kg)
1600S	1650	*408010001550*	4200
2200S	2200	*468010001550*	4700
2600S	2600	*508010001550*	5200
2800S	2800	*528010001550*	5700
3000S	3000	*548010001550*	6200
3200S	3200	*568010001550*	6500
3500S	3500	*598010001550*	7000
4000S	4000	*658010001550*	7500
4500S	4500	*708010001550*	8000
5000S	5000	*758010001550*	8500
6000S	6000	*858010001550*	9500

Payment Terms:	TT
