| Model: | Z-800 |
|---|---|
| Brand: | Dolphin |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / New Energy / Wind Power |
| Label: | permanent generator , winmill , 1000w wind generator |
| Price: |
US $630
/ pc
|
| Min. Order: | 1 pc |
| Last Online:24 Nov, 2012 |

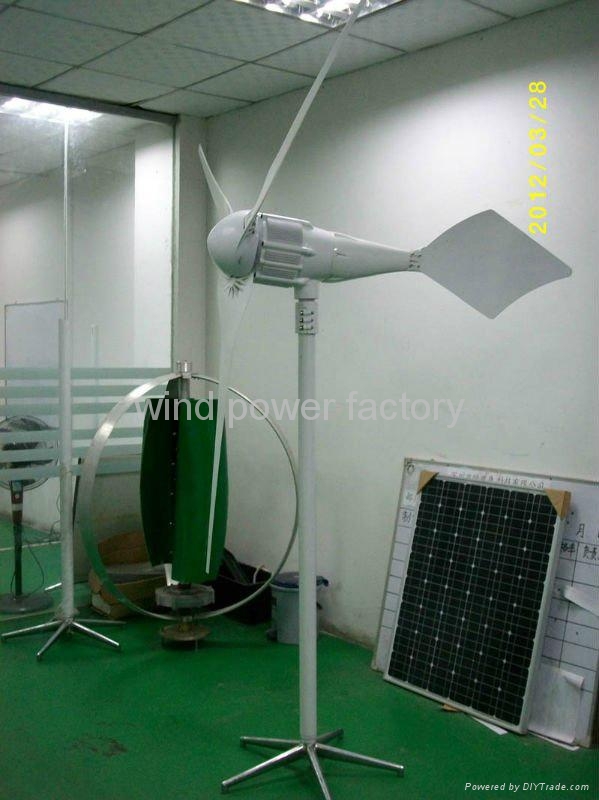

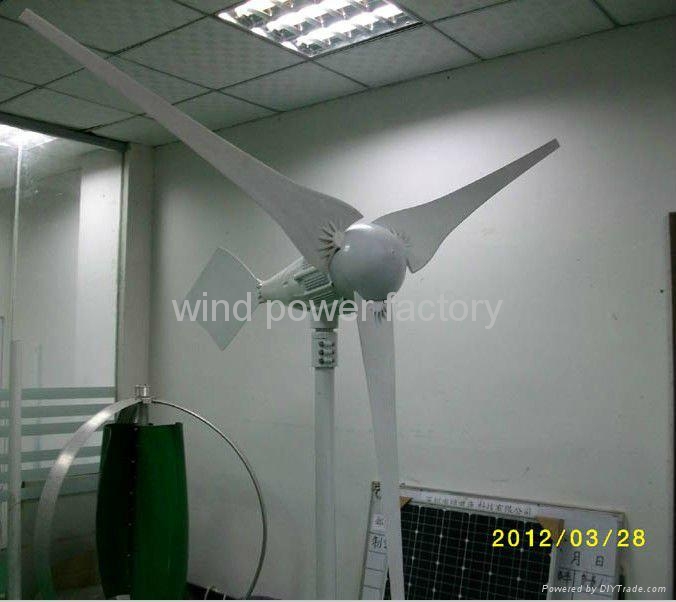

1. Rated Power: 1000 Watt
1. Rated Power: 1000 Watt2. Rated Volteg: 24V / 48V (optional)
3. 5 carbon fiber blades
4. 15 years use life and 1 year warranty
5. Small size, big power
6. Streamlined design,simple structure, running stably, power supply for city lamps, monitoring and home.
7. Small size and flexibility, lively Colors, beautiful curve, low noise, and environmental harmony.
8. Certified with: CE, RoHS and ISO 9001:2000
|
New Model |
Z-1000 |
|
Name |
Dolphin |
|
Rated power |
1000W |
|
Rated DC voltage |
24/48v(Optional) |
|
Rated current |
42/21A |
|
Rated speed |
650r/m |
|
Max power |
1200W |
|
Number of blade |
3 pcs (package Individually) |
|
Starting wind speed |
3m/s |
|
Cut-in wind speed |
3.5m/s |
|
Cut-out wind speed |
15m/s |
|
Security wind speed |
45m/s |
|
Rated wind speed |
12m/s |
|
Engine |
Three-phase permanent magnel generator |
|
Rotor diameter |
2200mm |
|
Blade material |
FRP (fiber glass- reinforced plastics) |
|
Output line anti-winding device |
Over all three-phase commutator |
|
Over-speed wind protection |
Tip stall protection + tumed protection + electomagnetic brake |
|
Life span |
15 years |
|
Equipment surface protection |
Aluminum oxide + plastic coating |
|
Working temperature |
-40°C-70°C |
|
N.W. |
25kg |
|
Packing material |
Carton case and foam material |
|
packing dimension |
850*550*460mm |
|
G.W. |
27kg |
