TZJD-1390 High precision Laser Engraving Cutting machine

Model:1300mm*900mm
Brand:TZJD
Origin:Made In China
Category:Industrial Supplies / Machinery / Engraving & Etching Machine
Label:laser engraving , 1390laser engraver , laser machine
Price: US $2600 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Tengzhou Jianda CNC Machine Co.,

Free MemberShan Dong - China
Live Chat:
Last Online:14 Jul, 2023

Product Description

Product Features:


1. Continuous & rapid curve cutting function; selecting shortest path function.


2. Adopts the new high-efficiency laser tube, the laser beam is more stable than the traditional type,

and the life time of the laser tube can be over 10000 hours.


3.The mechanical structure is strong and stable, making the machine to run at high precision.


4.The electrical ability is stable, the engraving speed is high, and the precision is high.


5. Advanced DSP control system, professional motion control chip, consecutive high speed curve cutting

and the shortest path selection function improve the working efficiency a lot.


6. LaserCut software compatibility with AutoCAD/Coredraw/Cam/Photoshop/Taijima designing program, output designs directly.


7. USB Interface, with mass storage device; improve working-speed & working efficiency.


8. Taiwan HIWIN linear guide rail & high-speed stepper motor drivers, the engraving/cutting edges were

all smoothly enough.



Technical Specification:

Model

TZJD-1390

Working area

1300mm*900mm

Laser power

60w/80w/100w/130w/150w,

Laser type

CO2 Sealed laser tube , 10.6μm, water-cooled

Cooling type

Water-cooling/Water chiller

Engraving speed

0-60000mm/min

Cutting speed

0-50000mm/min

Total power

2KW/H

Drive motors

Stepper/Servo(option)

Laser output control

0-100% set by software

Min. engraving size

Chinese: 2.0mm*2.0mm,   English letter:  1.0mm*1.0mm

Highest scanning precision

4000DPI

Locating accuracy

≤+0.01mm

Controlling software

DSP control system

Operating software

LaserCut

Graphic format supported

DST PLT BMP DXF DWG AI LAS,etc

Compatible software

CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.

Color separation

Yes

Drive system

High-precision 3-phase stepper motor

Auxiliary equipments

Exhaust fan and air exhaust pipe, red-dot position system, focus lens & reflection mirrors, auto-focus device, up & down device.

Power supply

Ac110v/AC220V±10%, 50HZ/60HZ

Working environment

Temperature:0-45℃, Humidity 5-95%(No condensate water)

Working table

Honeycomb table/Knife bar

Interface

PCI USB

Machine available

rotary device, etc.




Applicable industry:
Label processing,  Embroidery, advertising, decoration, arts and crafts, electronics, electric appliances, mould industry,

packing industry, etc.


Applicable Materials:
Acrylic, wood planks, label, fabric, paper ware, bamboo ware, double color board, paper, leather, shell, coconut shell,

ox horn, resin animal grease,ABS board, lamp shade, embroidery, leather, synthetic leather, artificial leather, glass, marble, crystal, etc.


Product Image

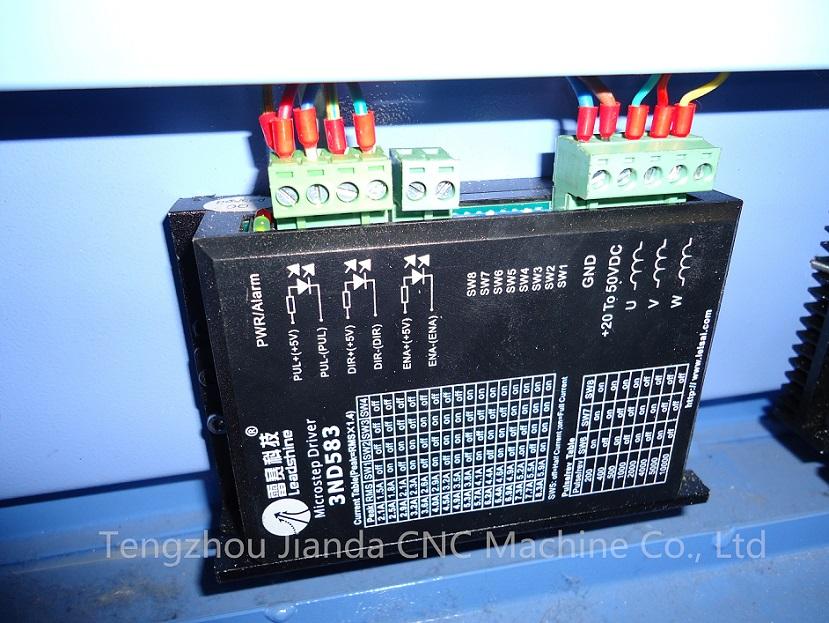

TZJD-1390 High precision Laser Engraving Cutting machine 1
Img 1

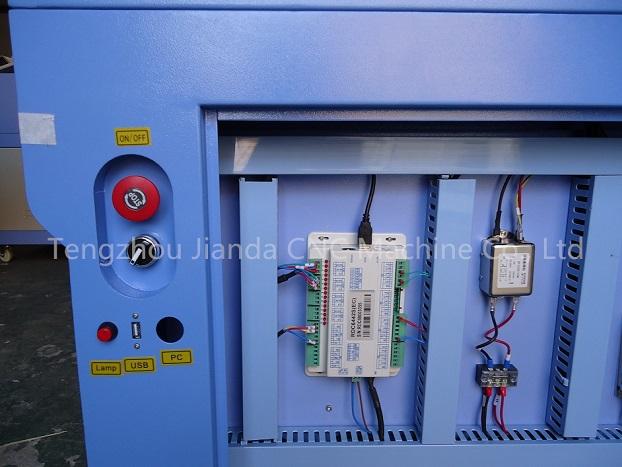

TZJD-1390 High precision Laser Engraving Cutting machine 2
