| Model: | SDMSA- |
|---|---|
| Brand: | SOWAY |
| Origin: | Made In China |
| Category: | Industrial Supplies / Electrical & Electronic Product Equipment |
| Label: | displacement sensor , liquid level sensor , Hydraulic sensor |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:19 Apr, 2024 |

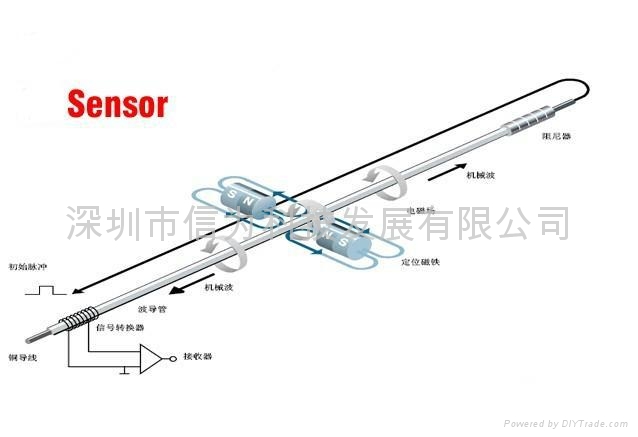

Magnetostrictive displacement sensor
Variety of output: Current, Voltage, SSI, Modbus;

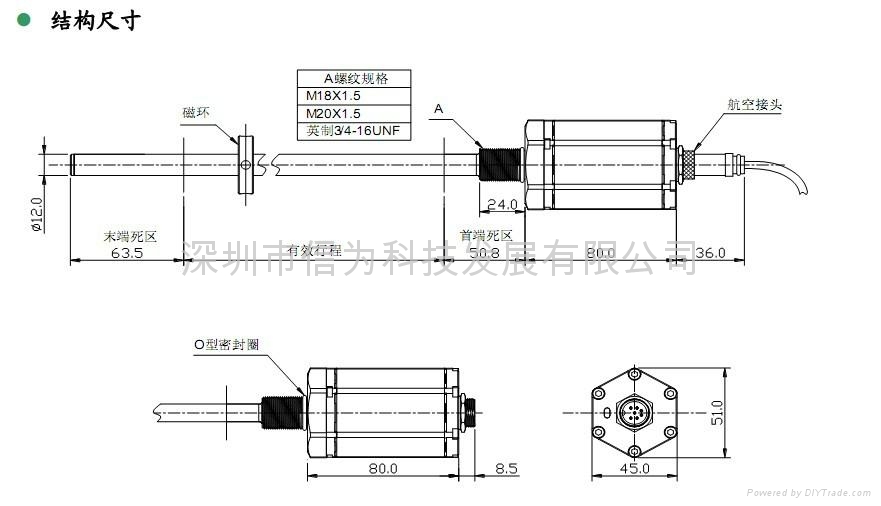

Easy install: Thread or Flange;
Non-contact measurement, no maintenance cost need;
High accuracy, high resolution , durable;
Specifications:
Linearity: ≤ ±0.05F.S (Maximum±10µm )
Repeatability: ≤ ±0.002% F.S
Resolution: 5µm
Update time: 1ms (range below 1meter); 2ms (range over 1 meter)
Operating temperature: -25℃ ~ +85 ℃
Applications:
Metallurgical industry;
Plastic industry;
Port facilities;
Building industry;
Oil equipment;
