China Hiigh Quality 1212 Cnc Router Aluminum Frame Machine Cnc Router

Model:HT-1212
Brand:Hopetool
Origin:Made In China
Category:Industrial Supplies / Machinery / Engraving & Etching Machine
Label:CNC router machine , CNC machine , CNC router
Price: US $2000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Jinan Hopetool CNC equipment Co.,Ltd

Free MemberShan Dong - China
Live Chat:
Last Online:17 Aug, 2022

Product Description

Product Description





Characteristic

1.high accuracy ball bearing guide screw of taiwan,minimize the slit.

2.imported linear rail,self lubricating glide.

3.our routers have the features of recarving after stop and the power failure may be restored.

4.unique preservation way of the zero point.

5.use for long time and no distortion.

6.this type is suitable for advertisement,wood engraving.

Performance parameter:

number

Description

parameter

1

XYZ working area

1200*1200*100mm

2

Table size

1300*1500mm

3

XYZ travel positioning accuracy

±0.05mm

4

XYZ repositioning positioning accury

±0.05mm

5

Table surface

Aluminum molding

6

lathe structure

Cast iron

7

drive system X-Y axis

Ball screw

8

drive system Z axis

Ball screw

9

Spindle power

2.2KW

10

Max velocity

8m/min

11

Max working speed

6m/min

12

Spindle speed

0-24000rmp

13

work mode

Stepper

14

Working voltage

AC220V

15

Command language

G code

16

Interface

USB

17

Operating system

Ncstudio(weihong)

18

Flash memory

128

19

X-Y resolution

﹤0.025mm

20

Software environment

Ucancam, type3 artcam

21

Running environment

Temperature:0-45℃

22

Paking size

1480*1650*1350mm

23

Net weight

300kg

24

Gross weight

350kg

rameter



Company Information

​FAQ

Q1.How to get the most suitable machine and best price ​Please tell the material you want to working on ? ​How to working on it ? Engraving ? Cutting ? Or other ? ​What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment? ​The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order? ​The proucing time is about 10-20 days depend on different machines.

Q4.If we don't know how to use the machine,can you teach us? Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if ​you are busy ,we will have the special engineer to your country,but you need to bear some fee,like ​tickets and hotel and meal.

Q5.How about your after-sales service? we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control: The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. ​The testing video and pictures will be available before delivery.

How to contact us:


Payment Terms:T/T

Product Image

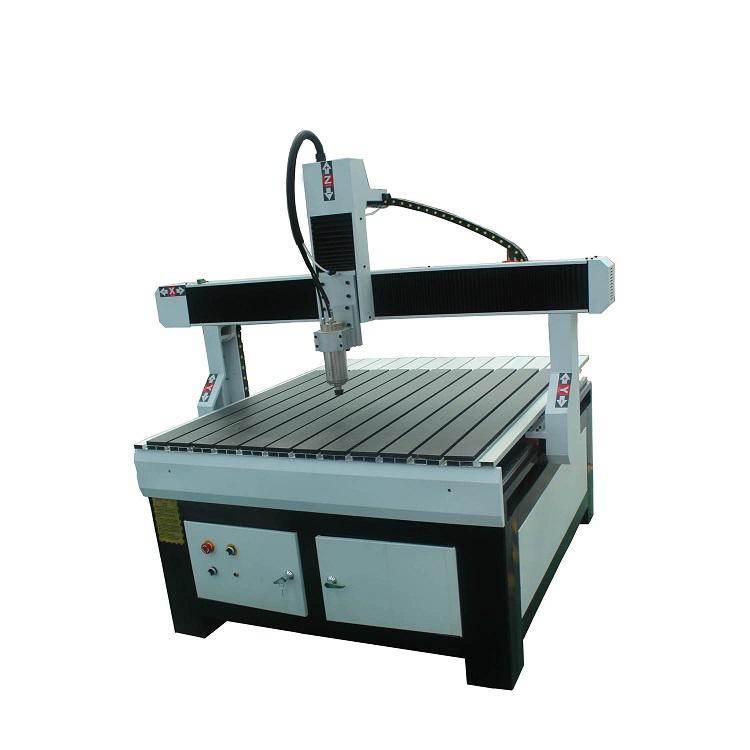

China Hiigh Quality 1212  Cnc Router Aluminum Frame Machine Cnc Router 1
