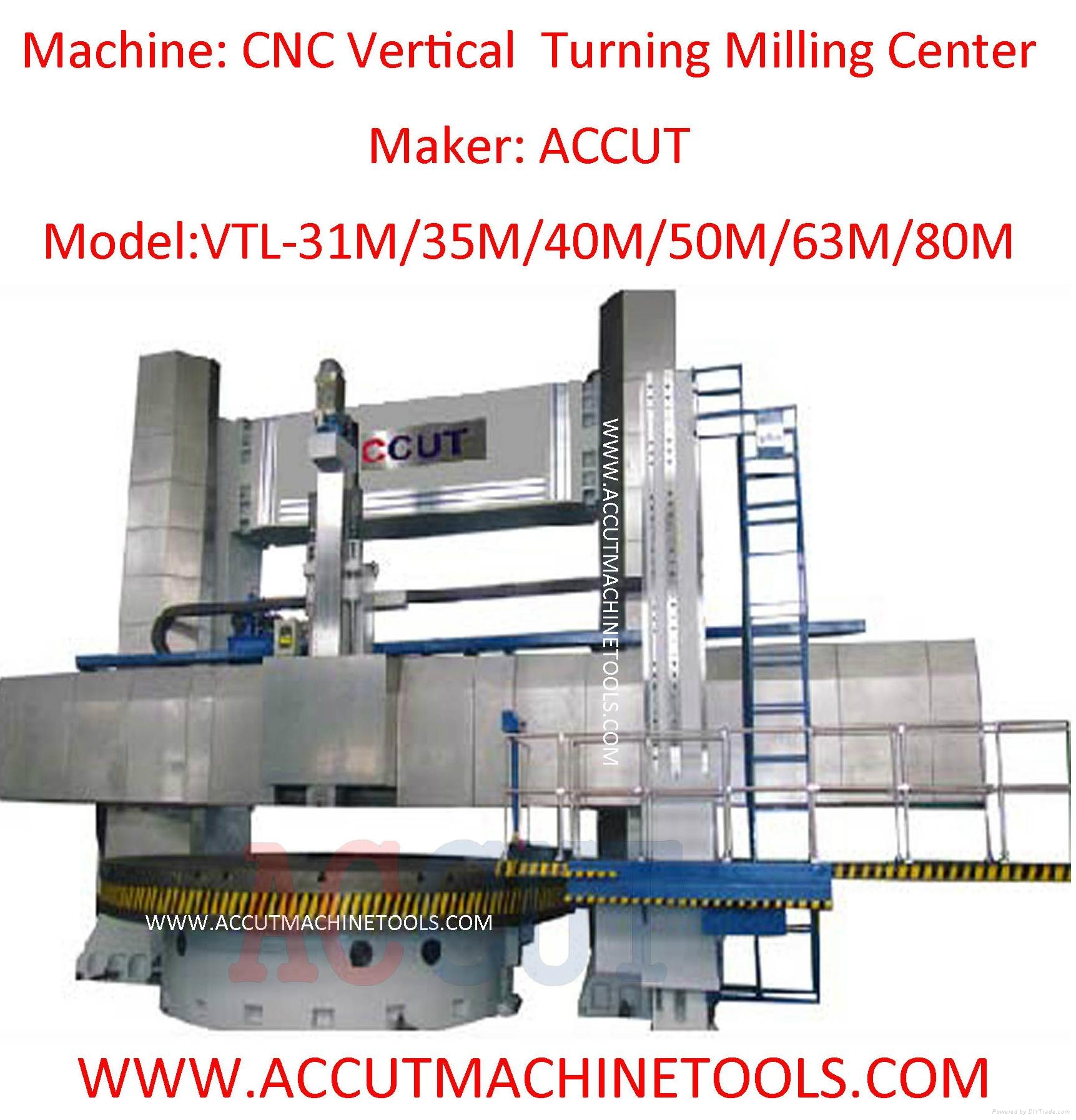

| Model: | VTL-M |
|---|---|
| Brand: | ACCUT |
| Origin: | - |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | VTL , C axis , milling |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:15 Oct, 2015 |
|
Technical Specification |
Unit |
VTL-10M |
VTL-14M |
VTL-16M |
VTL-20M |
VTL-25M |
|
Max. swing diameter |
mm |
1000 |
1350 |
1600 |
2000 |
2500 |
|
Table diameter * |
mm |
600 |
1000 |
1250 |
1600 |
2000 |
|
Max. Work piece height ** |
mm |
700 |
950 |
1250 (opt. 1600) |
1250 (opt. 1600) |
1600 (opt. 2000) |
|
Max. Work piece weight |
ton |
2 |
4 |
8 |
10 |
12 |
|
Max. milling spindle speeds |
rpm |
|
2000 |
2000 |
2000 |
2000 |
|
Taper of milling spindle |
|
|
BT 50 |
BT 50 |
BT 50 |
BT 50 |
|
Tool magazine capacity (opt.) |
|
6 (turret) |
6 / 12 |
6 / 12 |
6 / 12 |
6 / 12 |
|
Power of milling spindle motor (cont. / 30 min.) |
kW |
13 / 22 |
37 / 45 |
37 / 45 |
37 / 45 |
60 / 75 |
|
CNC system |
|
Siemens 828D s.l. / Siemens 840D s.l. / Fanuc 0i-TD / Fanuc 32i |
||||
|
Technical Specification |
Unit |
VTL-63M |
VTL-80M |
VTL-100M |
VTL-130M |
VTL-160M |
|
Max. swing diameter |
mm |
6300 |
8000 |
10000 |
13000 |
16000 |
|
Table diameter * |
mm |
4500 (opt. 5000 / 5700) |
6300 (opt. 7100) |
7100 (opt. 8000) |
8000 (opt. 9000 / 10000) |
8000 (opt. 9000 / 10000) |
|
Max. workpiece height ** |
mm |
3200 (opt. 4000 / 4500) |
4000 (opt. 4500 / 5000) |
4000 (opt. 5000 / 6000) |
5000 (opt. 6000 / 8000) |
5000 (opt. 6000 / 8000) |
|
Max. workpiece weight |
ton |
63 (opt. 80 / 100) |
100 (opt. 120 / 200) |
120 (opt. 200 / 300) |
200 (opt. 300 / 400) |
200 (opt. 300 / 400) |
|
Table speeds |
rpm |
0.32 - 32 |
0.2 - 20 |
0.5 - 12 |
0.5 - 12 |
0.3 - 6 |
|
Table indexing speeds (milling mode) |
rpm |
0.001 - 2 |
0.001 - 2 |
0.001 - 2 |
0.001 - 2 |
0.001 - 2 |
|
Horizontal stroke of vertical head |
mm |
3550 |
4400 |
5400 |
6700 |
8100 |
