150W CE approved high frequency digital smart soldering station BK3300A
Product Description
150W CE approved high frequency digital smart soldering station BK3300A
Performance
1.Special design for this heavy soldering station, Max power consumption:150W.
2.Switch power supply by design, Adopt powerful high-frequency vortex heating element.
3.Rapid temperature recovery, Easy to achieve perfect lead free soldering of big points, multilayer PCB and accessories.
4.The lead free soldering tips adopt vacuum-nanometer plated technique. High-temperature resistant, Oxidation resistant, corrosion resistant.
5.ESD by design, Optional tips from 2mm to 9mm.
6.Large LCD display, Micro computer control, digital temperature setting and temperature callibration,auto power-off functions.
7.Its perfect reliability is suitable for high-concentration soldering fields like producing solar panel, power cord soldering
Specifications
| Voltage |
AC220V 50HZ/AC110V 60HZ |
| Temperature range |
50~600°C |
| Power Rate(No load) |
≤10W |
| Max power rate |
150W |
| Temp.Stability(No load) |
±2°C |
| Resistance to ground |
<2Ω |
| Potential to ground |
<2mV |
| dimension |
(L)215x(W)126×(H)106mm |
| Temp.Adjust |
digital |
| password lock |
yes |
| Automatic sleep |
yes |
BK3300A Fittings
| Iron |
LF301 |
| Heating element |
VH300 |
| Iron cord |
1.8m |
| Tip |
BK500 |
| Holder |
BK507-G |

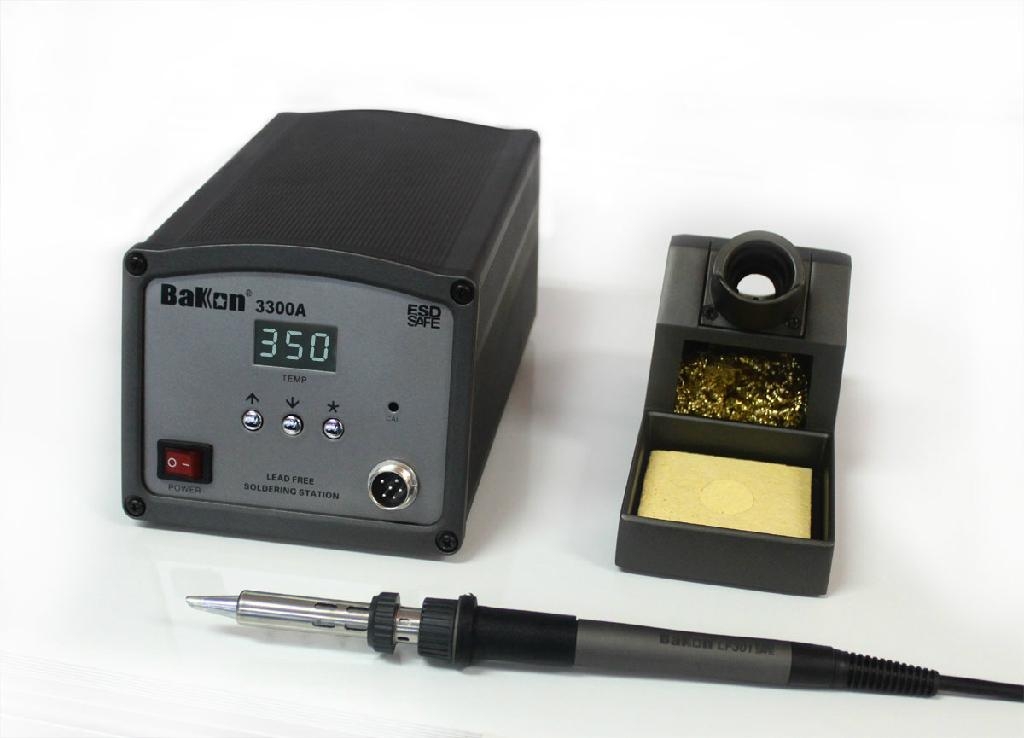

Product Image
