| Model: | USR-WIFI232-B2 |
|---|---|
| Brand: | USR |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Wireless Equipment |
| Label: | wifi module , serial to wifi , uart wifi module |
| Price: |
US $9.8
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:24 Aug, 2016 |
Introduction

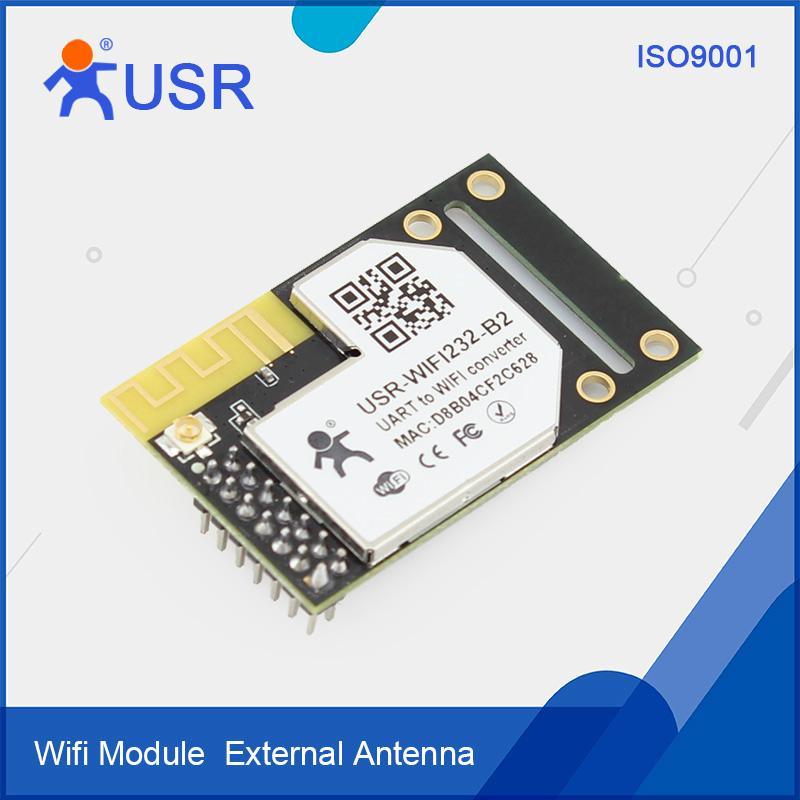

USR-WIFI232-B2 is an embedded 802.11 b/g/n wifi module. It can connect traditional serial device and MCU controlled device with wifi network to realize control and management.The module has an Ethernet port. It can realize mutual data transmission among wifi, serial and Ethernet.
Feature
Support 802.11b/g/n wireless standard
Support TCP/IP/UDP network protocol
Support UART/GPIO/Ethernet data interface
Support work as STA/AP/AP+STA mode
Support router and bridge mode
External antenna
Support transparent transmission mode
Provide AT+ instruction set for configuration
Provide friendly web configuration page
Support heartbeat signal and wifi connection indication
Support UART auto-frame function
3.3V power supply
Max transmission distance: 280 meters (open horizon, 3dbi antenna)
