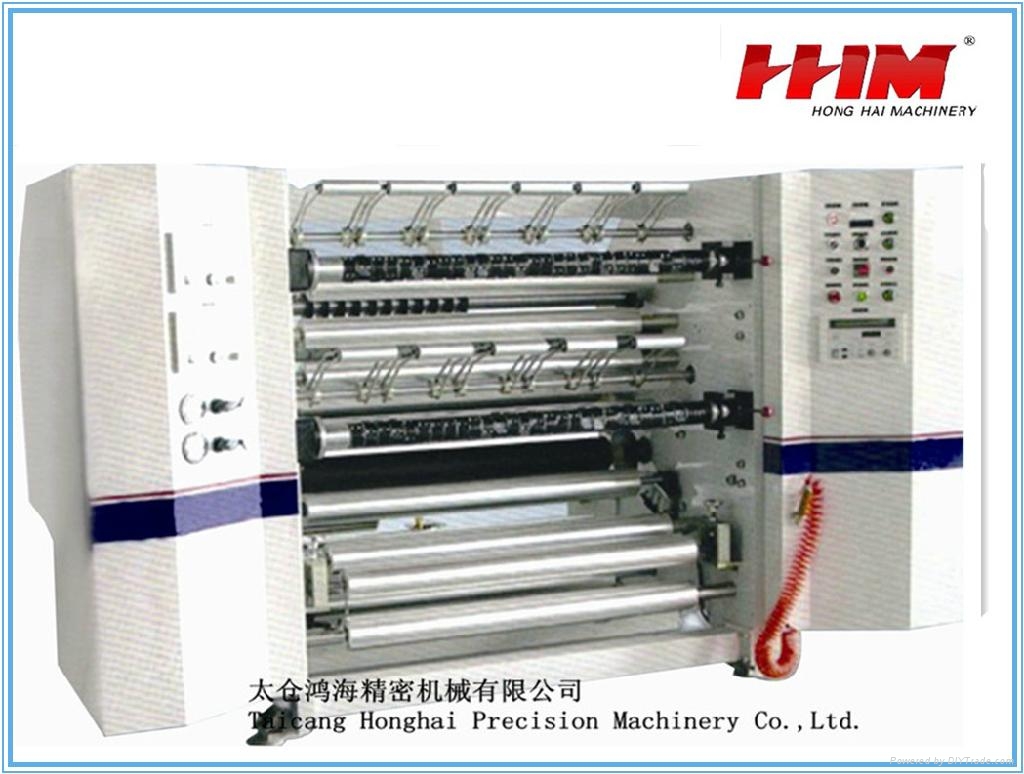

Model: | HH1300 |
---|---|
Brand: | honghai |
Origin: | Made In China |
Category: | Industrial Supplies / Packaging Related Machine |
Label: | High speed , Slitter rewinder , Slitting machine |
Price: |
-
|
Min. Order: | 1 pc |
Live Chat: | Last Online:07 Mar, 2013 |
Suitable for slitting paper,film,tape laminated film,etc.
Main motor device:AC motor with converter works as material transfer.They make a steady and rapid progression by acceleration and deceleration.
Main motor : Three motors,i.e.main motor and two rewind magnetic powder form constant control.The main motor is for we feeding and rewind magnetic powder are for tension control so that the finished products have stable tension and beautiful outlook.
Rewind unit:rewind shaft uses press roller to eliminate air to make finished products tense and nice outlook.
Rewind unit:Rewind shaft uses press roller to eliminate air to make finished products tense and nice lookout.
Finished product rewind:With bar type air shaft or differential shaft,suitable for more materials.The shaft exchange is by special design and easy to change.
Electricity unit:LCD touch panel is used for setting tension,length,etc.Th control system adopts PLC to control movements with detecting function so error can be found out easily.
Unwind unit:Separate unwind base for bigger unwind diameter.
Optional
Auto up-lifting device:Hydraulic type jumbo roll loading for saving labor force and working time.
Noise hood:For reducing production noise when machine is working.
Receiving device:For connecting materials at front and back sides to improve efficiency.
KH-K1300 KH-K1600 |
300-1000 mm 400-1300 mm 600-1600 mm |
800 mm 800 mm 800 mm |
Rewind width 25-1000 mm 25-1300 mm 25-1600 mm |
Rewind diameter 400 mm(max) |
Inside diameter of paper core 3'' |
Machine speed 0-200 M/min |
Power 220V/380V/440V 3-Phase 50/60 HZ |
