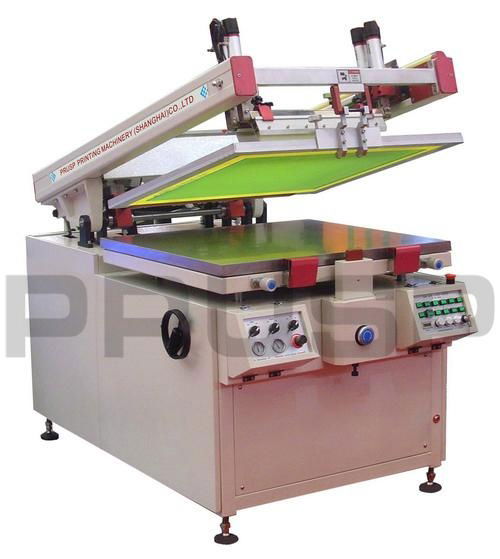

Suitable for nameplate, package boxes, ceramic transfer paper, decal, self-adhesive label, advertising and PCB ...
|
Model Data |
PX-6050SA |
PX-8060SA |
|
Max. Printing Area |
600×500mm |
800×600mm |
|
Max. Frame Size |
900×900mm |
1100×1000mm |
|
Printing Table Size |
750×710mm |
910×850mm |
|
Max. Printing Speed |
1100 cycle/h |
1000 cycle/h |
|
Stock Thickness |
0-50mm |
|
|
Squeegee Speed |
100-800mm/sec |
|
|
Air Consumption |
18L/min |
|
|
Air Pressure |
6kg/cm2 |
|
|
Power |
380(220)V×3Ph×1.4KW-2KW |
|
|
Dimension (W×L×H) |
800×1650×1480mm |
950×1700×1400mm |
|
Weight |
560kg |
610kg |
·Double safety device ensures the safe operate
·Powerful vacuum table provides accurate and consistent position for substrates
·Printing Stroke, speed, pressure and angle can be adjustable
·Table can be set up and down
·Imported switch, motor, rail and PLC make the performance perfect
·R ed built framework and anti-scrape lacquer improve its finishing
