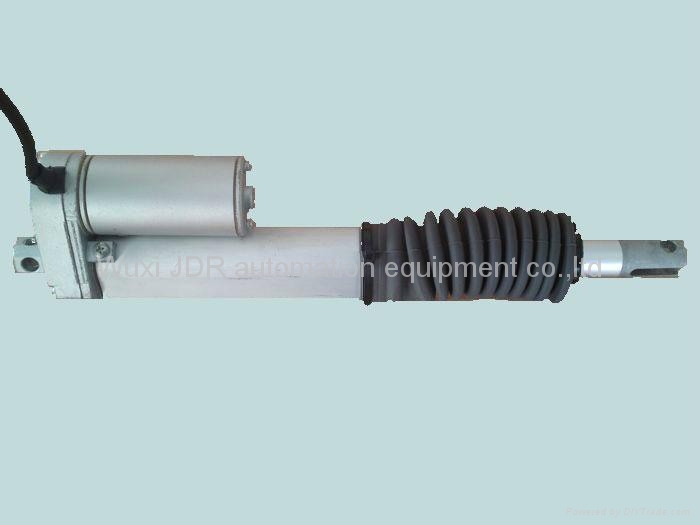

FY017 Mini Linear Actuator for chair ,bed and sofa

       *Designed for use with torque arm system
       *Compact size
       *Safe, low voltage operator, 24v or 12V

Specifications:
           1) Voltage: 24VDC or 12VDC
      2) Capacity: 250N /500N/750N
      3) Max Speed: 15mm/s
      4) Stroke: 50mm ~ 650mm
      5)Type of duty: 10% or 2 minutes continuous use followed

         by 18 minutes not in use
      6) Protection class: IP54
      7) Built-in limit switches, not adjustable after leave factory
      8) Certification: CE, RoHS

Features :

     1) Powder Coated Steel Outer Tube

   2) Lubrication for life time

   3) Aluminum extension and outer tubes
   4) Enhanced Corrosion Resistance
   5) Powder Coated Aluminum Alloy Housing
