| Model: | 2.5mm2 |
|---|---|
| Brand: | Hesheng Cable |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Optical Fiber, Cable & Wire / Electric Wire & Cable |
| Label: | twin and earth cable , twin cable , flat cable |
| Price: |
US $0.72
/ meter
|
| Min. Order: | 1000 meter |
| Live Chat: | Last Online:06 Dec, 2023 |

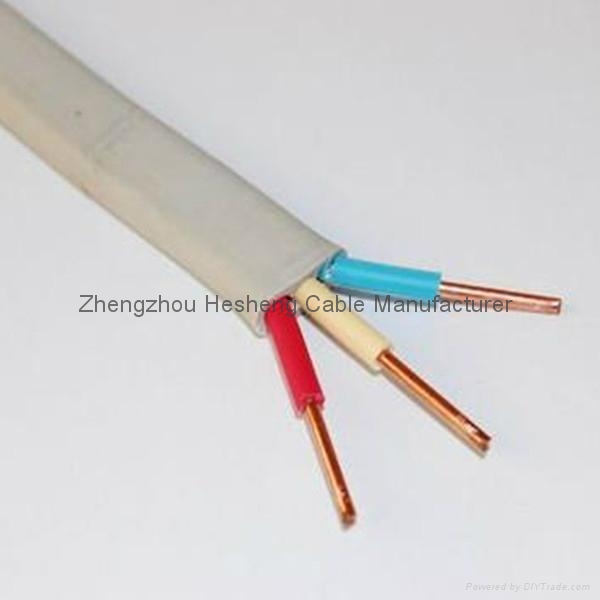

Zhengzhou Hesheng Cable Co.,Ltd is a professional manufacturer for PVC/XLPE/RUBBER or other special cables since 1998, and in the cable field, it is a famous one not only in China, but also the whold world.
1.Conductor MaterialOxygen-free Annealed Copper.
2.Conductor Construction7/0.67mm
3.Insulation Material:PVC, V-90.
4.Insulation Thickness:0.7 mm
5.Insulation Colour:Black, Red.
6.Earth Conductor Material:Oxygen-free Annealed Copper.
7.Earth Conductor Construction:7/0.67 mm
8.Earth Insulation Thickness:0.7 mm
9.Earth Insulation Colour:Yellow + Green
10.Sheath Material:PVC, 3V-90
11.sheath Colour:White
12.Sheath Thickness:1.0 mm
13.Norminal Overall Diameter:Φ 5.5 x 2.4 mm
14.Approx. Weight:160 kgs/km.
15.Normal Operating Temperature:75 oC
16.Standard:AS/NZS 5000.2
