| Model: | 1000W |
|---|---|
| Brand: | SAINTKIN |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / New Energy / Wind Power |
| Label: | 2kw Wind Turbine , 1kw Wind Turbine , WIND GENERATOR |
| Price: |
US $900
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:02 Jul, 2019 |
WIND TURBINE, WIND TURBINE SYSTEM,WIND POWER SYSTEM,WIND SOLAR HYBRID SYSTEMS, HIGHER EFFICIENCY, LOW NOISE, LONG SPAN LIFE, HIGHER PERFORMANCE PRICE RATION, COMPETITIVE PRICE, SUPERIOR QUALITY,

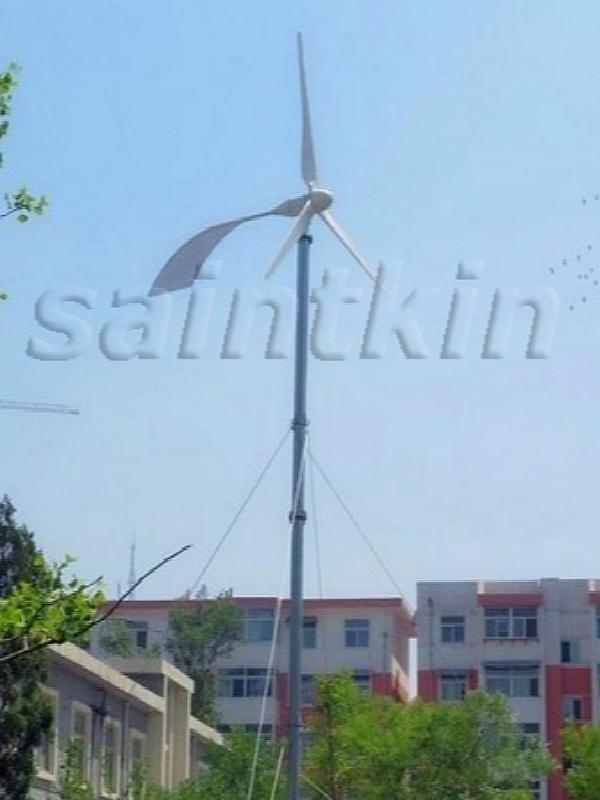

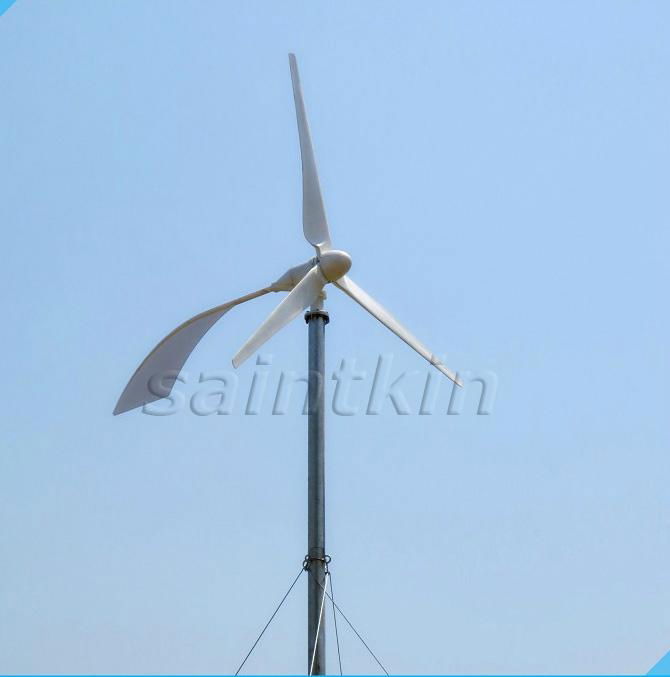

1kw wind turbine/1000w wind turbine generator/wind turbine system are well supplied. Specifications as followint,
|
rated power |
300w |
400W |
500w |
600W |
1KW |
2KW |
|
max power |
450w |
600w |
750w |
900w |
1500w |
3000w |
|
blade diameter |
2.2m |
2.5m |
2.7m |
2.8m |
3.2m |
3.8m |
|
rated rotor(r/min) |
400r/min |
400r/min |
400r/min |
400r/min |
360r/min |
300r/min |
|
rated speed |
7(m/s) |
7(m/s) |
7m/s |
8m/s |
8m/s |
8m/s |
|
start up wind speed |
2.5(m/s) |
2.5(m/s) |
2.5(m/s) |
2.5(m/s) |
3(m/s) |
3(m/s) |
|
work speed |
3-25(m/s) |
3-25(m/s) |
3-25(m/s) |
3-25(m/s) |
3-25(m/s) |
3-25(m/s) |
|
(security wind speed |
40(m/s) |
40(m/s) |
40(m/s) |
40(m/s) |
50(m/s) |
50(m/s) |
|
output voltage |
24v |
24V |
24V |
24v/36v |
48v |
72v/96v |
|
high of tower |
6(m) |
6(m) |
6(m) |
6(m) |
6(m) |
6(m) |
|
top quality |
30kg |
40kg |
45kg |
45kg |
60kg |
90kg |
|
Guyed tower type |
60mm*4mm（steel tube） |
60mm*4mm（steel tube） |
75mm*5mm（steel tube） |
75mm*5mm（steel tube） |
75mm*5mm（steel tube） |
89mm*5mm（steel tube） |
|
s ested battery |
2pcs 12v150ah |
2pcs 12v150ah |
2pcs 12v150ah |
2pcs 12v150ah |
4pcs 12v150ah |
6/8pcs 12v200ah |
Your partner: SAINTKIN
