pipe bender machine ATM-TFDW A50B
Product Description
pipe bender machine ATM-TFDW A50B
Applicability:

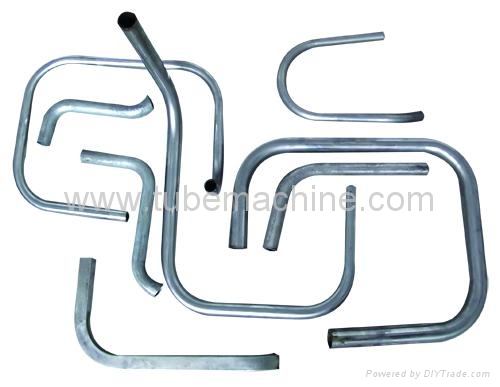

The machine is applied to all kinds of factories, such as Car fittings(oil pipe of brake,bumper,muffler,seat chair,and etc.)motorcycle manufacturing,gymnastic equipment,air-condition refrigeration,bicycle and balneal facility,and so on.
| Main technical data: |
| |
Max bending
diameter(mm) |
Pipe-wall
thickness(mm) |
Bending radius
range(mm) |
Max bending
angle |
Oil pressure
system motor(kw) |
Max
pressure |
Dimension(mm) |
Weight(kg) |
| DW-A38B |
38 |
1.8 |
30-170 |
190° |
4 |
120 |
700×1000×2450 |
900 |
| DW-A50B |
50 |
2.0 |
35-250 |
190° |
5.5 |
120 |
800×1250×3200 |
1250 |
| DW-A75B |
75 |
2.5 |
50-300 |
190° |
7.5 |
120 |
950×1259×3600 |
2600 |
|
Our company:
Our main products:spiral tube forming machine,flexible duct forming machine,auto roof forming machine,riveting machine,Pittsburgh seam lock machine.Hydraulic section steel bending machine,metal sheet flange forming machine,TDF hydraulic folder,auto cutting to length line,pipe bending machine,FN seam welder,notching and shearing machine.
Our certificate:
1.CE
2.ISO901:2000
Please contant us at any time available for you,if you want for more details.
Add:Building D,299 Tangming Road,Lita Hui,Songjiang District,Shanghai,China
Fax:+86-21-57841819
Tel:+86-21-57842040
Phone:+86-13817091187
