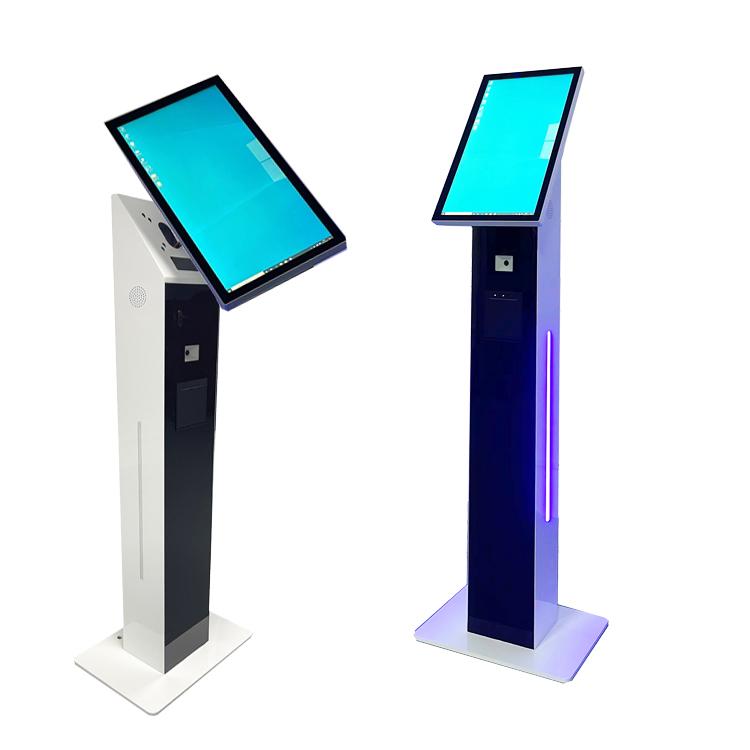

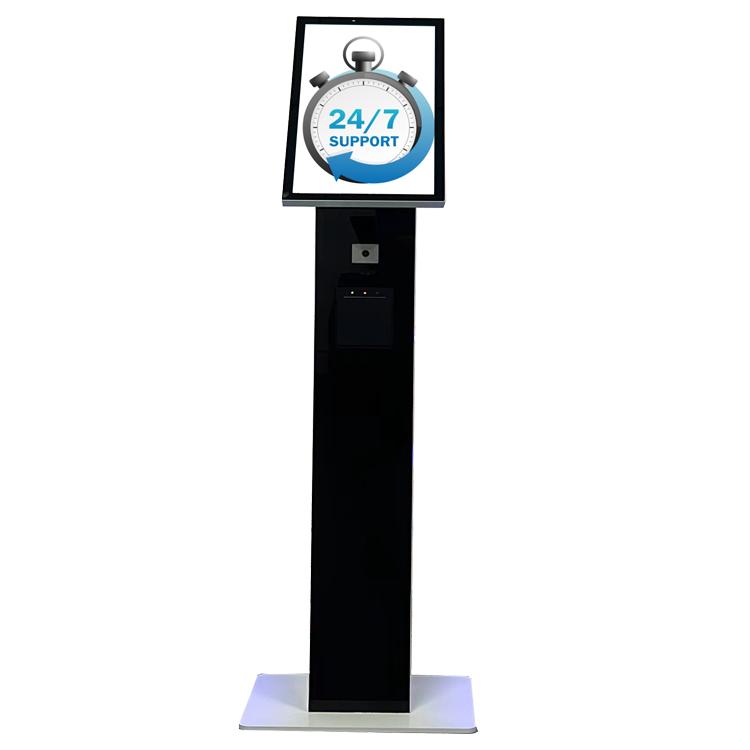

Usually you can install it for government service, Telecommunication service, Retail, Travel, Transportation, Hotel, University, hospital. Equipped with Magnetic card swiper, thermal printer, RDIF card, barcode scanner, this multifunction all in one kiosk usually used in hospital for patient to print report, check social ID card and so on. It also offers service of inquiry, data collection and so on. More information as below. We can design many kiosks according to your requirement. Please feel free contact me.
Overview:
1. 19''durable steel all in one kiosk cabinet
2. 19''100% new Grade A+ TFT LED monitor
3. 19’'water proof, anti dust, anti-vandal touch screen
4. Powerful Embedded PC, integrated in a steel box
5. Magnetic card swiper, thermal printer, RFID card reader, barcode reader.
5. operating system, internet access
Notes: the above components could be order seperately, you are welcome to order monitor only, or cabinet only. More information, please feel free to contact me.
Detail Specification:
1) Touch Panel
a. Resisstive, SAW and Infrared available.
b. Resolution: 4096*4096
c. Deviation of Error: ±<1.0%
d. Surface Hardness: Mohs' hardness rating of 7
e. Hitting Life Expectancy: 50,000,000 cycle times
f. Operating Force: Touch force less than 100g(adjust allowed)
g. Support software: Windows, Linux...
h. Transmittance: above 95%...
2) 19 inch LED monitor(100% new LG or Samsung monitor, Grade A+ monitor)
a. Resolution: 1280x1024
b. Brightness: 300cd/2
c. Contrast ration: 1000: 1
d. Contact Bounce: 5ms
e. Ratio: 4:3 or 16 : 9
f. lifelong: more than 50 000 hours
3) Powerful Computer
a. CPU: Intel J1900 2.0ghz CPU
b. low power and stable industrial mainboard
c. Storgae: 120GB SSD, HDD available
d. RAM: Kingmax DDRIII 4GB(optional)
e. Ports: USB ports, RS-232 ports
f. load speaker, cooling fan, power supply, Integrate graphics card...
4)Additional devices:
Magnetic card swiper, thermal printer, RFID card reader, barcode reader.
5) all in one kiosk Frame:
a. 1.2mm~1.5mm cold rolled steel, durable, 2.0mm CRS available.
b. build in power control panel, and hi-fi-speaker.
c. RJ45 interface for internet access
The following devices are available:
1. Bluetooth connection, 3G module, GPRS, Wifi connection
2. Card Reader: RFID card reader, Non touch card reader, IC card reader, Magnitci card swipe
3. high quality digital camera, webcam....
4. Finger print reader, pinpad
You are welcome to require to add one of the above devices, or some of the above devices or all of the above device.
Test process:
Before we send the kiosk to you, in order to make sure the kiosk run well after you get it, we will test at least 24 hours for each kiosk.
Packing:
There are 5 layers total for kiosk, the first one is antistatic film, the 2nd is foam, the 3rd is carton box, and last one is wooden case for exporting.
Aftersale service:
1. One year warranty for the whole machine.
2. You are welcome to contact us via online contact information any time you like, we will back to you as soon as we can.
More information, contact us freely, :).
