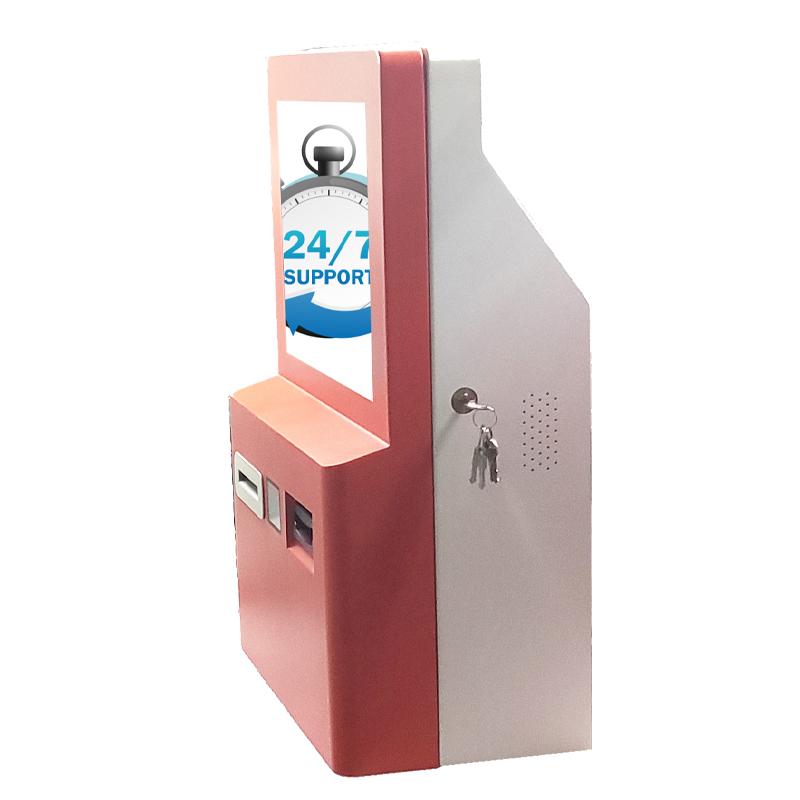

With thermal printer ticket vending kiosk machine

Overview:

1.15''durable steel ticket vending kiosk cabinet

2. Powerful Embedded computer

3. 15'' Grade A+ LED monitor plus touch screen

4. Operating System, internet access

5. Thermal printer

6. Coin acceptor

7. Banknote acceptor

Notes: the above components could be order seperately, you are welcome to order monitor only, or cabinet only. More information, please feel free to contact me.

Configuration:

1) Touch screen

a. Infrared Touch screen

b. Resolution: 4096*4096

c. Deviation of Error: ±<1.0%

d. Surface Hardness: Mohs' hardness rating of 7

e. Hitting Life Expectancy: 50,000,000 cycle times

f. Response time: 10ms

g. Transmittance: >95%

2)15″Grade A+ LED monitor

a. Resolution: 1024x768

b. Brightness: 300cd/m2

c. Contrast ration: 1000:1

d. Contact Bounce: 5ms

e. lifelong: more than 50 000hrs

f. Ratio: 16:9

3) Powerful Computer

a. CPU: Intel J1900 2.0Ghz cpu

b. Hard disk: 120GB SSD, HDD available

c. Industrial motherboard

d. RAM: KingMAX DDRIII 4GB

f. Ports: USB ports, RS-232 ports

Embedded PC for this touch screen kiosk is upgradeable available.

4) kiosk equipment Frame:

a. 1.2mm~1.5mm cold rolled Steel frame, 2.0mm CRS available.

b. build in power control panel, and hi-fi-speaker.

c. RJ45 interface, wired network card.

Optional devices available:

1. High quality Camera / Webcam

2. Bluetooth connection, 3G modem, GPRS, Wifi access

It will be appreciated if you tell me your specific requirement. We are able to customize the kiosks for you.

Test process:
Before we send the kiosk to you, in order to make sure the kiosk run well after you get it, we will test at least 24 hours for each kiosk.


Warranty
1. 1 year warranty for enclosure.
2. 1 year warranty for electrical parts
3. For mass goods, we will offer some free spare parts of electrical device.
Payment terms: We accept TT, Western Union, LC(above 30, 000 usd), Escrow, Paypal and Money Gram, usually 50% of the total payment as deposit.
Notes:
1. To Saudi Arabia and UAE, CO and SASO is necessary.
2. To Africa countries, there are few ships.
To get more information, warm welcome to cotact us, :).
