Vertical Milling Machine, Table 1700x400mm

Model:VM400
Brand:Songen
Origin:Made In China
Category:Industrial Supplies / Machinery / Machine Tool
Label:vertical miller , milling machines , milling machine
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Songen Machinery co.,Ltd

Free MemberShan Dong - China
Last Online:19 Jan, 2015

Product Description

Features
1. This vertical knee-type milling machine is high in rigidity and accuracy;
2. This vertical knee-type milling machine allows heavy cutting;
3. The power of milling machine main spindle motor is high and speed range is wide;
4. Vertical knee-type milling machine gives full play to the efficiency of tool post to process high-speed cutting;
5. The column of the vertical knee-type milling machine is manufactured from high quality cast iron;
6. The important parts of milling machine are manufactured from alloy steels, ensuring maximum stability for heavy duty cutting;
7. Milling machine adopts integrated automatic lubricating system;
8. Digital readout (DRO) can be offered according to customers’s requirement;
9. This vertical knee-type milling machine is driven by ball screw.

Specification
Unit
VM400
TABLE
Table size
mm
1700 x 400(67″x 16″)
T slot ( width×num ×spaces)
mm×No×mm
18 x 3x 90
Max. load of Table
kg
800
MACHINING RANGE
Longitudinal travel of Axis X (manual/auto)
mm
900/880 (36″/35″)
Cross travel of Axis Y (manual/auto)
mm
315/300 (13″/12″)
Vertical travel of Axis Z (manual/auto)
mm
385/365 (15″/14″)
MAIN SPINDLE
Spindle taper

ISO50 7:24
Quill travel
mm
85 (4″)
Spindle speed /step
rpm
30-1500/18
Distance from spindle axis to column surface
mm
450 (18″)
Distance from spindle nose to table surface
mm
130-515 (5″-20″)
Max.swivel of headstock
degree
±45º
FEEDS
Feed speed of Axis X/Y (Longitudinal/cross)
mm / min
23.5-1180/18
Feed speed and step of Axis Z (Vertical)
mm/min
8-394/18
Rapid Traverse of AxisX/Y (Longitudinal/cross)
mm / min
2300
Rapid Traverse of Axis Z (Vertical)
mm/min
770
POWER
Main motor
kw
11
(X/Y/Z) Feed motor
kw
3
Coolant motor
kw
0.125
OTHERS
Package dimension
mm
2400x2200x2250(94''x 87''x 89'')
Overall dimension
mm
2556x2159x2298(101''x85''x90'')
N. W.
kg
4250

Standard accessories
1. Drawbar;
2. ISO50 Mill chuck;
3. ISO50 cutter arbor;
4. 7:24 taper sleeve;
5. Oil gun;
6. Foundation bolts;
7. Double head wrench;
8. Single head spanner;
9. Inner hexagon spanner.

Optional accessories
1. Dividing head;
2. Rotary table;
3. 3-axis Digital Readout(DRO);
4. Precision machine vice 160mm;
5. Universal machine vice 125mm.


Product Image

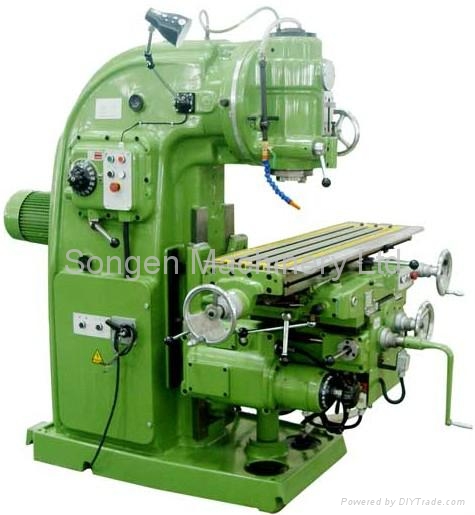

Vertical Milling Machine, Table 1700x400mm 1
