941/941F Forged Steel & S.S316. IB Steam Trap
Size: 1/2”~1”
Features:
Max. Capacity: 400 Kg/HR
Working Pressure: 69Kg/Cm2
Material:
|
Cap & Body |
ASTM A-105 |
|
Mechanism |
Stainless Steel |
|
Bucket |
Stainless W/Cast Iron WT. |
|
Seat & Valve |
Hardened S.S 400C |
|
Inlet Tube |
Steel Pipe |
|
Gasket |
640 & 940 Series SS304 W/Graphite |
|
Bolts |
ASTM A-193. GR.B7 |
|
Nuts |
ASTM A-194. GR.2H |

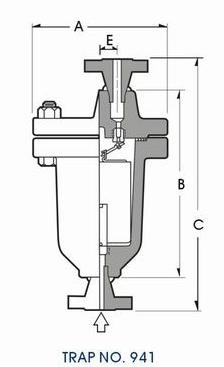

Trap No. 941/941F Dimensions (mm). MOP(kg/cm2). WT(kg)
|
Trap No. |
CONN. SE. |
A |
B |
C |
D |
E |
MOP |
WT.SE.SW |
WT.FLG |
|
941.941F |
15.20 |
161 |
225 |
354 |
|
19 |
69 |
11 |
12 |
