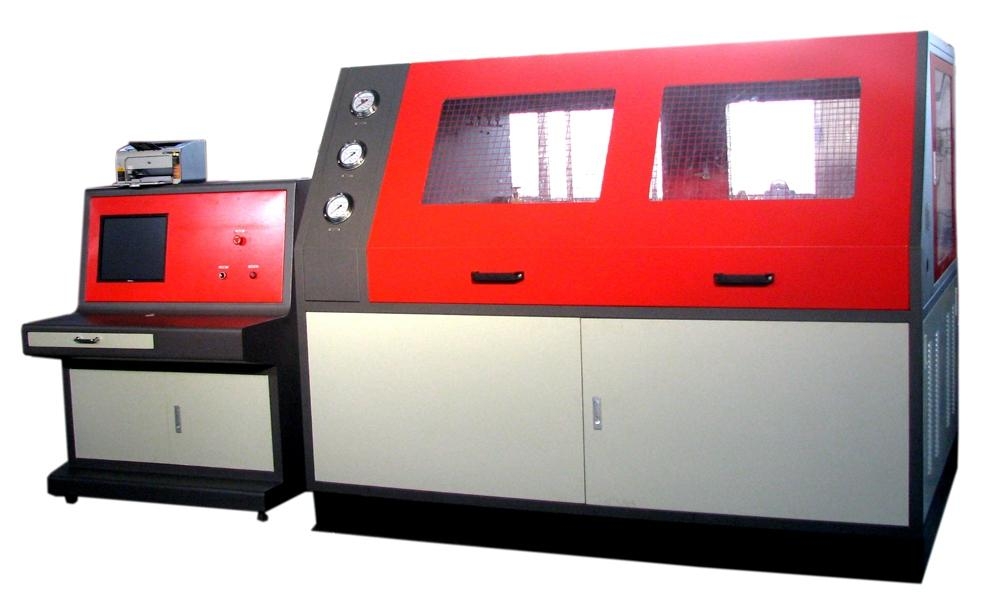

Sister hydrostatic testing machine is mainly used for testing is widely used in cylinders, piping, fittings, valves, pressure vessels, oil tools, products such as hydraulic pressure, sealing detection, blasting test.

Hydrostatic testing machine using compressed air as power source, with the pneumatic pump for pressure source, gas source pressure and the output pressure proportional to. The air pressure adjustment, can output pressure stepless regulation.

Hydrostatic testing machine features:

In 1, the sister of pneumatic booster pump pressure source, test pressure is high, up to400MPa;

2, by adjusting the drive air pressure to regulate the system pressure, wide regulating range;

3, all the lines are made of stainless steel, suitable for water, oil, emulsion, most liquid medium;

4, system using a solderless connection, a conical seal, repeated disassembly, is safe and reliable, suitable for the vast majority of sealing in hydraulic system requirements;

In 5, manual control, can be expanded with the pressure sensor and digital display table, paperless recorder or mechanical disc recorder test data display and processing; ( manual control optional)

6, using the high speed sampling card ( the United States NI ) sampling test data, high accuracy, stable. The LABVIEW operation software makes operation more simple. The entire test process can be computer operation is complete, automatic generation, pressure time curve, and the various data storage, ready to print the test report. Can also be through the button switch manual control of the test process.

Hydrostatic test machine standard:

1, follow the standard: GB16897/ ISO6803/ TL8415 / TL875/ SAEJ-2044 / SAE J-188/ SAE J-1401/ ES6G91-3A719-AA / ESA-M2D17-B / ES-3M51-3A212-AB.

2, applicable to the automotive air conditioning and radiator hose pressure test or pulse test.

Follow standard: TL82253/ PF-8813 / EDS-T-7524/ HG / T2491-93/ HT / T2718-1995/ QC / T664-2000.

3, applicable to the hydraulic equipment, engineering machinery, mining machinery such as pressure test or pulse test.

Follow standard: GB7939-92/ HG / T2540-93 / GB10542-89/ GB / T7127. 1-2000/ GB / T7127.2-2000 / GB / T5568-94 / ISO6802-1991/ ISO6803-1994/ ISO6805-1994.

In 4, brake hose burst strength test stand for" the implementation of the standard" content change to the following:

Suitable for automobile brake pipe, power steering, clutch tube and other automotive hose pressure test or pulse test, provided with matching bending, vibration, volume expansion and other related testing equipment.

Follow the standards: GB16897-1997, ISO6803, TL8415, TL875, SAE J-2044, SAE J-188, SAE

J-1401, ES6G91-3A719-AA, ESA-M2D17-B, ES-3M51-3A212-AB.

Hydrostatic testing machine technical parameters

A, output pressure:0-640MPA can be optional

B, pressurization rate : manual / automatic regulation of optional

C, test temperature and medium temperature range:0-150

D, test pressure : the pressure gauge observation, computer software automatically records the test pressure is optional

E, at the same time multiplex line at the same time measurement

H, driving the air pressure:0.8MPa ( manual, digital instrumentation, computer, PLC touch screen control4level selection

Hydraulic test machine scope of application:

Automotive hose: steering, brake pipe, air duct, the fuel pipe, cooling pipe, radiator hose, air hose, air filter hose, turbocharging system hose; hydraulic hose;

In 2, hydraulic equipment, engineering machinery, mining machinery, hydraulic tube burst test;

3, air hose and pipe;

4, other hard pipe or joint and automobile brake pump, cylinder block
