| Model: | TW |
|---|---|
| Brand: | HAIYU |
| Origin: | Made In China |
| Category: | Industrial Supplies / Construction Machine |
| Label: | concrete slab , concrete beam making , concrete machine |
| Price: |
US $10000
/ SET
|
| Min. Order: | 1 SET |
| Live Chat: | Last Online:09 Jun, 2022 |
The machine is mainly used to make the beam of house or building. The machine is making the beam through mechanical squeezing. It use the vibrator to compaction the beam and make the cement, sand and stone etc. fastening together.
We are having many types of the Beam Slabs Forming Machine, different model can produce different kinds of beam to make different building.
TW120X370

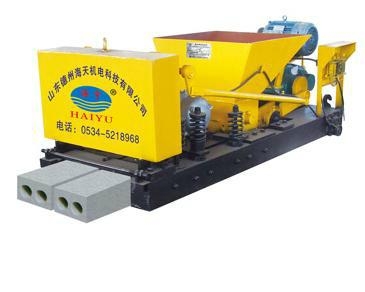

Floor Beam Forming Machine
It can produce one beam in one time. The beam size is 120mm (thickness) X370mm (width)
TW120X370X2
Floor Beam Forming Machine
It can produce two beams in one time. The beam size is 120mm(thickness)X370mm
(width)
TW120X240X2
Floor Beam Forming Machine
It can produce one beam in one time. The beam size is 120mm(thickness)X240mm
(width)
TW120X240X2
Floor Beam Forming Machine
It can produce two beams in one time. The beam size is 120mm (thickness)X240mm (width)
We can also design and make different size according to your requirements.
SPECIFICATION
|
Floor Beam Forming Machine |
Forming speed (m/min) |
Holes no. |
Dia. Of holes |
Materials and mxture ratio |
|
TW120X370 |
1.2-1.4 |
3 |
Φ70 |
Cement, sand and stone 1:2:3 |
|
TW120X370X2 |
1.2-1.4 |
6 |
Φ70 |
|
|
TW120X240 |
1.2-1.4 |
2 |
Φ70 |
|
|
TW120X240X2 |
1.2-1.4 |
4 |
Φ70 |
|
|
TW120X240+180X240 |
1.2-1.4 |
2 |
Φ70 |
|
|
TW120X370+180X370 |
1.2-1.4 |
3 |
Φ70 |
|
|
Others |
The slab can put in the reinforcing bar |
|||
