Mimi Led flashing name message badge board(Direct Manufacturer)

Model:B1248AB
Brand:NCG LED
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Display Parts
Label:LED name card , LED scrolling badge , LED moving sign
Price: US $1 / pc
Min. Order:100 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen NCG Technology Co., Ltd.

Free MemberGuang Dong - China
Live Chat:
Last Online:29 Sep, 2017

Product Description

Brand Name Lan Brand
Usage Taking on the upper clothes, t-shirts. Good for ceremony and marketing event.
Model Number (this model) B1248AY
Model Number (the other models) B1248AR / B1248SR / B1248AB / B1248APG / B1248AW
LED Chip Color Yellow
Number of display color Yellow Single Color
Pitch (mm) 1.85
Pixels 12 x 48
Number of LED chip per pixel 1 pcs
LED Type SMD
Waterproof IP level IP54 (life level waterproof)
  Dimension
Frame Size (mm) 102 x 32 x 5
Screen Size (mm) 98 x 28
Unit Module Size (mm) 100 x 30 (single module)
Net Weight (Gram, excluding accessories) 30
  Features
Input method USB Cable from PC / notebook
Support Language English / Chinese (Simple & Traditional) / Japanese / Spanish / German / French / Korean / Thailand / etc..
Max input letters (Western) 1,500 characters
Max input letters (Oriental) 750 characters
Max. number of letters In one screen Western : 6 (text mode), 8 (graphic mode) Oriental : 4 (text mode), 6 (graphic mode)
Display Effects 4 (Scroll from right to left / Snow / Flash / Hold)
Max Row Lines 1
Customized Image (BMP) Support Possible
Switch/Port on the body On/off, Brightness, Message Selection, USB Port (mini-5 pin)
Brightness Control 4 levels (25%, 50%, 75%, 100%)
Auto Brightness Control N/A
Clock support N/A
Power Supplying Method Lithium-Polymer Battery Inside
Time for Full Charging 3~4 Hours
Lasting time by Full Charge 12~14 Hours at 25% Brightness
Charger Type USB Adapter Enclosed (100~220V AC Input, DC 5V / 400 mA Output )
Auto on/off Support N/A
Supporting OS Window 7, Window Vista, Window XP / 98,/ 2000
Optional Accessories N/A

Basic Information
Brand Name iBadge
Usage Taking on the upper clothes, t-shirts. Good for ceremony and marketing event.
Model Number (this model) B1236SR
Model Number (the other models) B1236AR / B1236AY / B1236AB / B1236APK / B1236APG / B1236AW
LED Chip Color Red
Number of display color Red Single Color
Pitch (mm) 1.85
Pixels 12 x 36
Number of LED chip per pixel 1 pcs
LED Type Bonding LED * SR use smaller LED chips than AR model, so the brightness is about 90% of AR model.
Waterproof IP level IP54 (life level waterproof)
  Dimension
Frame Size (mm) 80 x 32 x 5
Screen Size (mm) 76 x 28
Unit Module Size 78 x 30 (single module)
Net Weight (Gram, excluding accessories)
  Features
Input method USB Cable from PC / notebook
Support Language English / Chinese (Simple & Traditional) / Japanese / Spanish / German / French / Korean / Thailand / etc..
Max input letters (Western) 1,500 characters
Max input letters (Oriental) 750 characters
Max. number of letters In one screen Western : 4 (text mode), 6 (graphic mode) Oriental : 3 (text mode), 5 (graphic mode)
Display Effects 4 (Scroll from right to left / Snow / Flash / Hold)
Max Row Lines 1
Customized Image (BMP) Support Possible
Switch/Port on the body On/off, Brightness, Message Selection, USB Port (mini-5 pin)
Brightness Control 4 Levels (25%, 50%, 75%, 100%)
Auto Brightness Control N/A
Clock support N/A
Power Supplying Method Lithium-Polymer Battery Inside
Time for Full Charging 3~4 Hours
Lasting time by Full Charge 8~10 Hours at 25% Brightness
Charger Type USB Adapter Enclosed (100~220V AC Input, DC 5V / 400 mA Output )
Auto on/off Support N/A
Supporting OS Window 7, Window Vista, Window XP / 98,/ 2000
Optional Accessories N/A
  Packing
Packing Size (mm) 125 x 95 x 37
Accessories Enclosed Badge 1 pcs USB Cable (70 cm) 1 pcs USB Adapter 1 pcs CD (program / manual) 1 pcs Plastic pin 1 pcs for Fixing on Clothes (Attached on Backside) Magnets 1 pcs for Fixing on Clothes (Attached on Backside)
Packing Picture (See the picture above)
Gross Weight (Gram) 135

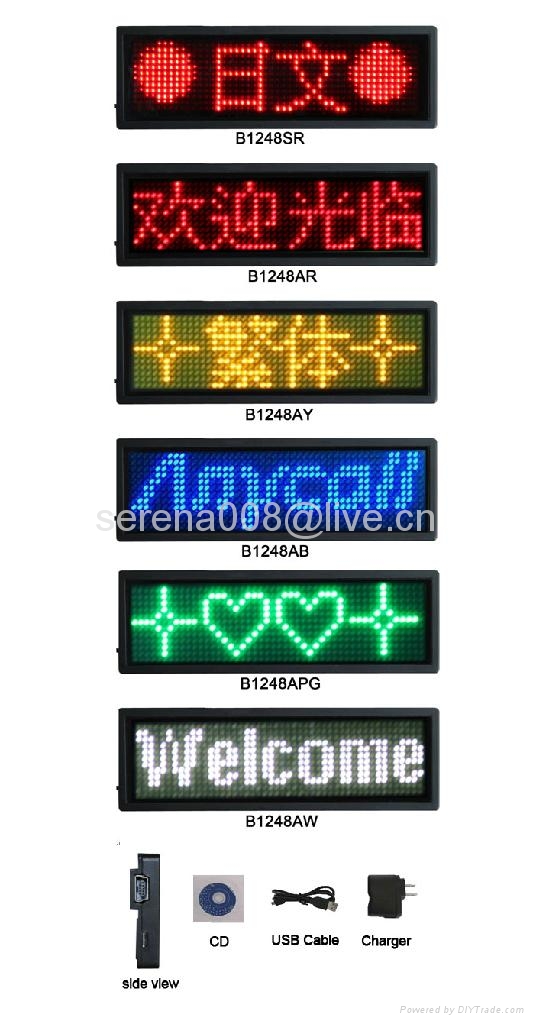

Product Image

Mimi Led flashing name message badge board(Direct Manufacturer) 1
Img 1
Mimi Led flashing name message badge board(Direct Manufacturer) 2
Img 2
Mimi Led flashing name message badge board(Direct Manufacturer) 3
Img 3
Mimi Led flashing name message badge board(Direct Manufacturer) 4
Img 4
Mimi Led flashing name message badge board(Direct Manufacturer) 5
Img 5
