China manmade thermal graphite sheet

Model:QTN015
Brand:QT
Origin:Made In China
Category:Electronics & Electricity / Insulation Material
Label:thermal material , graphite sheet , graphite film
Price: US $1.2 / pc
Min. Order:50 pc
Inquire Now Add to Basket

Member Information

Detail

Suzhou Qiantai Electronics Tech co.,LTd

Free MemberJiang Su - China
Live Chat:Last Online:05 May, 2017

Product Description

Typical Characteristic
Model Number QTN003 QTN005 DSN508 QTN010 QTN013 QTN015
Compostion Flexible Graphite  Flexible Graphite  Flexible Graphite  Flexible Graphite  Flexible Graphite  Flexible Graphite
Colour Dark Grey  Dark Grey  Dark Grey  Dark Grey  Dark Grey  Dark Grey
Thickness 0.03mm 0.05mm 0.08mm 0.10mm 0.13mm 0.15mm
Thickness Tolerance ±0.005mm ±0.005mm ±0.01mm ±0.02mm ±0.02mm ±0.03.mm
Density 2.15g/cm³  2.1g/cm³ 2.05g/cm³ 1.8g/cm³ 1.75g/cm³ 1.7g/cm³
Hareness 85 ShoreA 85 ShoreA 85 ShoreA 85 ShoreA 85 ShoreA 85 ShoreA
Tensile Strength 650psi 650psi 650psi 650psi 650psi 650psi
UL Flammability Rating 94VO 94VO 94VO 94VO 94VO 94VO
Temperature Range  -40℃to 400℃  -40℃to 400℃  -40℃to 400℃  -40℃to 400℃  -40℃to 400℃  -40℃to 400℃
Thermal Conductivity(X-Y direction 1500W/Mk 1200w/mK 800w/Mk 700w/mK 550w/mK 500w/mK
Thermal Conductivity(Z direction 20-30W/Mk 20-30W/Mk 15-20W/Mk 10-15W/Mk 10-15W/Mk 10-15W/Mk
ThermalResistance  100psi 681Kpa 0.07℃-in² /W 0.42℃-c㎡/W 0.08℃-in²/W 0.51℃-c㎡/W 0.09℃-in²/W 0.57℃-c㎡/W 0.1℃-in²/W 0.66℃-c㎡/W 0.16℃-in²/W 0.95℃-c㎡/W 0.2℃-in²/W   1.07℃-c㎡/W
Volume Resistivity 11*10-4ohm-cm 11*10-4ohm-cm 11*10-4ohm-cm 11*10-4ohm-cm 11*10-4ohm-cm 11*10-4ohm-cm
Outgassing TML 0.15% 0.15% 0.15% 0.15% 0.15% 0.15%
Outgassing CVCM 0.09% 0.09% 0.09% 0.09% 0.09% 0.09%

Payment Terms:TT/LC/DP

Product Image

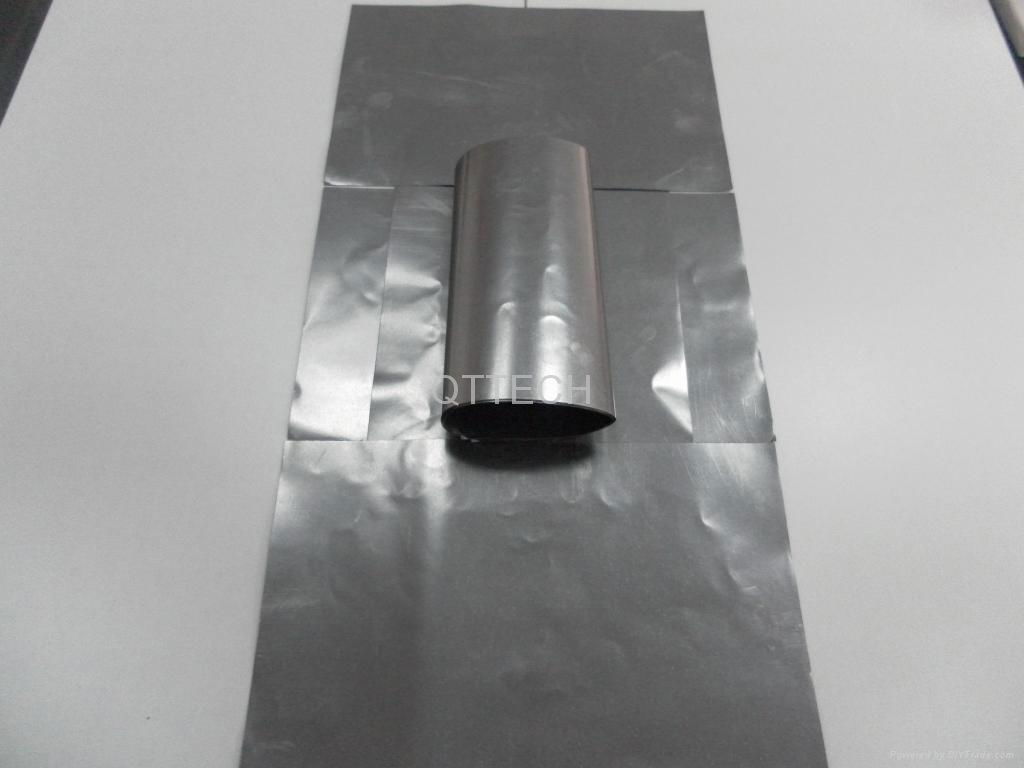

China manmade thermal graphite sheet  1
Img 1
China manmade thermal graphite sheet  2
Img 2
China manmade thermal graphite sheet  3
Img 3
