| Model: | JD-2600A |
|---|---|
| Brand: | - |
| Origin: | - |
| Category: | Electronics & Electricity / Electronic Instrument / Optical Lens & Instrument |
| Label: | Digital lensmeter , auto lens meter , auto lensometer |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: | Last Online:17 Oct, 2023 |

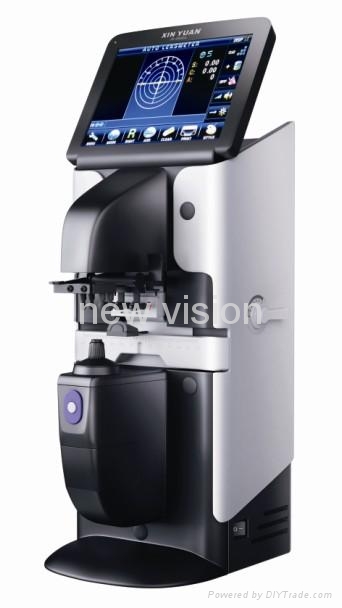

Auto Lensmeter
Model: NV-2600 plus
CE & FDA
Features
Adjustable LCD color screen
Sensitive touch
Faster measurement with greater accuracy and reliability
Automatic recognition of single and progressive lens
High speed UV measurement
Built-in thermal Printer and UV tester
Specifications
|
Measuring range |
Sphere －25D～＋25D 0.01/ 0.12/ 0.25D steps |
|
Cylinder －9.99D～＋9.99D 0.01/ 0.12/ 0.25D steps |
|
|
Prism degree 0～15 at 0.01/ 0.12/ 0.25 steps |
|
|
Addition 0D～＋9.99D at 0.01/ 0.12/ 0.25 steps |
|
|
Axis 0～180° at 1° steps |
|
|
Diameter of Lens |
20-108mm |
|
Pupil Distance |
40mm～90mm, 0.5 step |
|
Speed of measurement |
0.1s |
|
Display |
7" TFT LCD 758x480 pixels |
|
|
Thermal Printer |
|
Dimension |
222(H)x161(W)x372(H)mm |
|
Package |
515(H)x320(W)x390(H)mm |
|
Net Weight |
Approx 5kgs |
|
Power supply |
100～240V, 50/60 Hz |
