| Model: | ABL |
|---|---|
| Brand: | FAE |
| Origin: | Made In China |
| Category: | Industrial Supplies / Industrial Supplies Stocks |
| Label: | Polishing machine , Deburring machine , Surface treatment |
| Price: |
¥140000
/ set
|
| Min. Order: | 1 set |
| Live Chat: |  | Last Online:27 Dec, 2023 |
Ø Applications
Ø It is applicable to surface Polish for Machining parts or Overmolding parts, die
casting parts, Plastic,…etc
Ø Features
ØThe buffing line consist of chain conveyor, 2 compartment, 40 fixtures, over 30
motors and buffing wheels,…etc
Ø40 pcs fixture seated on the Chain base move along the guide rail,
the parts are polished by the wheel during this movement.
ØThe cutter mark, the burrs, residues and sharp edges can be
removed completely through this buffing process, visually the parts
become more perfect and more consistent on its surface.
ØThe fixtures move speed can be set from 0 to
mechanism make the all the fixture revolved at certain position to
meet different polishing needs, all these can be set just by click the
button on Touch screen.
ØIsolated compartment and individual exhaling system make the work
area more clean.
ØHigh UPH, cost saving
Ø Specifications
Item | Spec. | Item | Spec. |
Conveyer speed control | 0~ | Buffing motors | DC90V / 90W / 1800rpm |
Number of Fixtures & Buffing motors | 40PCS（Min） | Power supply | AC380V / 3KW |
Main motor and gear box | 2HP/1:60 | Size/Weight | 3000*1200* |
Ø Software
ØControl Panel

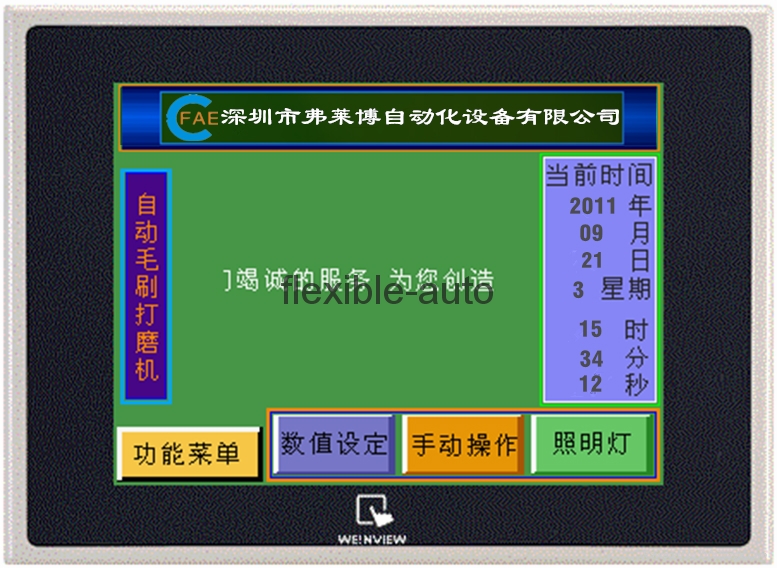

Main interface of touch screen
ØParameter setting interface
Parameter and Program can be set and edit freely on the touch screen
