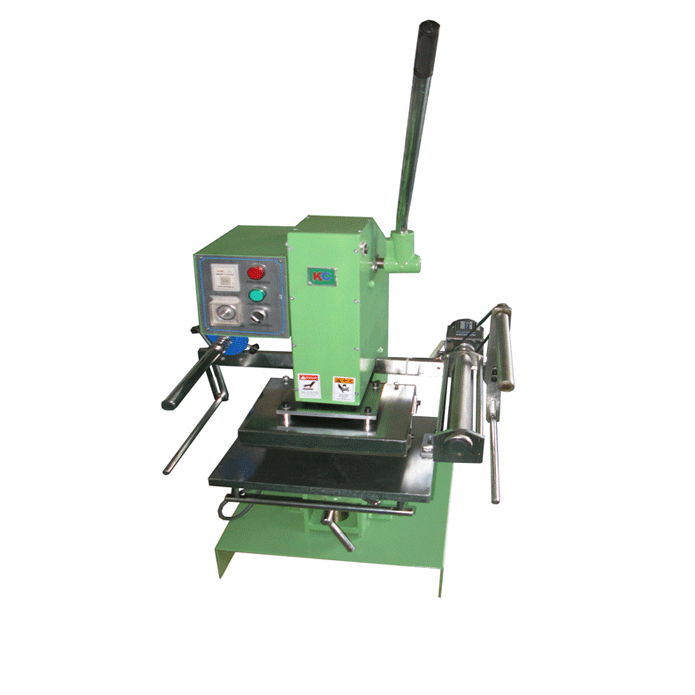

Manual Hot stamping machine-HM-TC1520

Model:HM-TC1520
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:hot stamper , hot stamping machine , hot foil stamping
Price: US $1150 / pic
Min. Order:1 pic
Inquire Now Add to Basket

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:11 Jan, 2023

Product Description

The semi-automatic hot stamping machine is mainly composed of the up and down of the hot stamping head, the conveying of the hot stamping paper, etc. We mainly name the hot stamping machine based on the control method of the hot stamping head up and down. Manual hot stamping machines are the simplest type of hot stamping machine. The conveyance of the hot stamping paper and the heating of the heating plate of the manual hot stamping machine still need electricity. The manual hot stamping machine is widely used in hot stamping processing in stores and small-scale factories, and can hot stamp most products such as paper, leather, plastic, and wood.

Manual hot stamping Machine //Structure

Working table

Manual in-out , size: 320*400mm.

Stamping Head drive

Manual , Level keeping pressure

Foil collecting method

 Motor-drive , Collecting time adjustable

Press

Vertical press

Temperature control

Heater tube, automatically controlling

Foil collecting

Automatically collecting

Press adjustment way

Up-down of working table

Manual hot stamping machine //Usage and characters

Guide

  • Gilding - paper, leather, wood, plastic, glass,
  • Baked - wood products, baked painting, gift box packaging;
  • Embossing - paper, leather, cloth.
  • Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
  • Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
  • Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.

Application fields

  • Paper Gilding, Leather Impression, Wood ware Baking
  • Paper Concave-convex embossing, Cloth hot stamping,
  • Plastics Bronzing ,Glass and metal Heat transfer

Manual hot stamping Machine //Parameter

Technical parameters

HM-TC1520

HM-TC2129

  • Size of Hot Plate :150×200 mm
  • Work Table Size :320 ×400 mm
  • Max. Pressure :4000Kg
  • Max. Head Stroke :40mm
  • Heater Capacity: 1200 W
  • Foil Controller :motor Controller
  • Temperature adjustment :0-300oC。
  • Size of Hot Plate :210×290 mm
  • Work Table Size :320 ×400 mm
  • Max. Pressure :4000Kg
  • Max. Head Stroke :40mm
  • Heater Capacity: 1200 W
  • Foil Controller :motor Controller
  • Temperature adjustment :0-300oC。
HM-TC1927 HM-TC3025
  • Size of Hot Plate :190×270 mm
  • Work Table Size :320 ×400 mm
  • Max. Pressure :4000Kg
  • Max. Head Stroke :40mm
  • Heater Capacity: 1200 W
  • Foil Controller :motor Controller
  • Temperature adjustment :0-300oC。
  • Size of Hot Plate :300×250 mm ]
  • Work Table Size :320 ×400 mm
  • Max. Pressure :4000Kg
  • Max. Head Stroke :40mm
  • Heater Capacity: 1200 W
  • Foil Controller :motor Controller
  • Temperature adjustment :0-300oC

Works supply

  • 110V-220VPower supply;

Package list

  • Package list: 0.750 x 0.670 x 0.960 mm
  • Gross weight: 180kg
  • CBM: 0.4824

H.S.Code

8443198000

Certificate

CE

Manual hot stamping machine //Advantage

Function

  • Table can be manually pulled out for easy product to take on and off;
  • Table can be back-front, rotate adjustment, quick easy safe operation;
  • Table with screw height adjustment control, precision and stability;
  • Automatic temperature control system, temperature can be set freely;
  • Stamping time can be adjusted;
  • Automatic Stamping foil feeding, Foil collection, foil collection time can be adjusted;
  • Heating pipe heating systems, long life, easy to replace;
  • Manual stamping operation, self-locking mechanism Pressing constant pressure;
  • High-strength steel plate and cast gilt table, flatness

Application:The semi-automatic hot stamping machine is mainly composed of the up and down of the hot stamping head, the conveying of the hot stamping paper, etc. We mainly name the hot stamping machine based on the control method of the hot stamping head up and down. Manual hot stamping machines are the simplest type of hot stamping machine. The conveyance of the hot stamping paper and the heating of the heating plate of the manual hot stamping machine still need electricity. The manual hot stamping machine is widely used in hot stamping processing in stores and small-scale factories, and can hot stamp most products such as paper, leather, plastic, and wood.

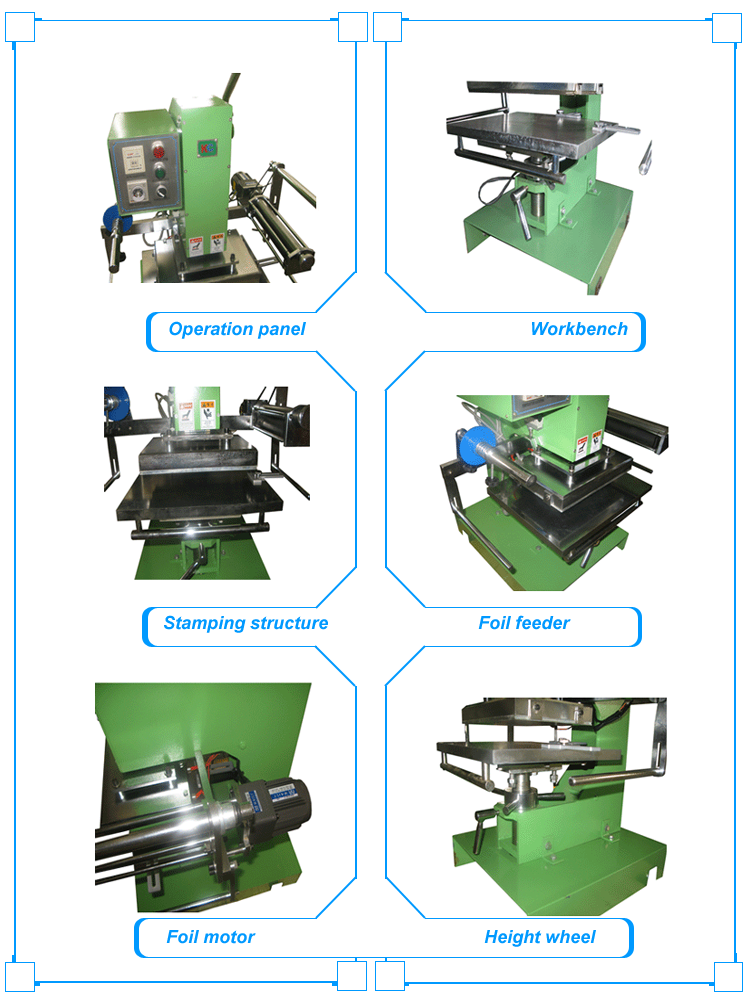

Product Image
