Emergency break glass exit button push button switch DW-B05

Model:DW-B05
Brand:Dwell
Origin:Made In China
Category:Electronics & Electricity / Switch / Push Button Switch
Label:exit button , push button , Emergency break glas
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Company Information

Detail

Shenzhen Dwell Eelectronics Co.,Limited

Biz MemberHong Kong
Live Chat: Chat Now
点击这里给我发消息Last Online:25 May, 2018

Product Description



Introduction

Glass broken button, also called the emergency push button, it is a series in the electric lock loop, to prevent the entrance guard system of card reader, push button or controller hardware failure inside personnel dozen don't open the door. Locked in the room, when faced with the above situation to press the emergency push button and the lock power will be disconnected, the door is opened.



Features

Use the Fireproof Material, Accord with the Safe Request

Sandblast Panel with Elegant Style

Different colors (Green,red,yellow,white) options for different occasions





Dimensions: 86Lx86Wx50H(mm)

Standard Structure: Fireproof Material, Easy to install
Current Rating:  3A@36VDC Max
Output Contact:  NO\NC\COM
Suitable for Door: Exit Door, Emergence Door
Optional Accessories:  Glass, Cover
Operating temp: 10~+55℃(14-131F)
Operating Humidity: 0-95% (relative humidity)
Material  Selection: Fireproof Material, Sandblast Finished


Payment Terms:TT/Western union/Paypal/Escrow/Cash

Product Image

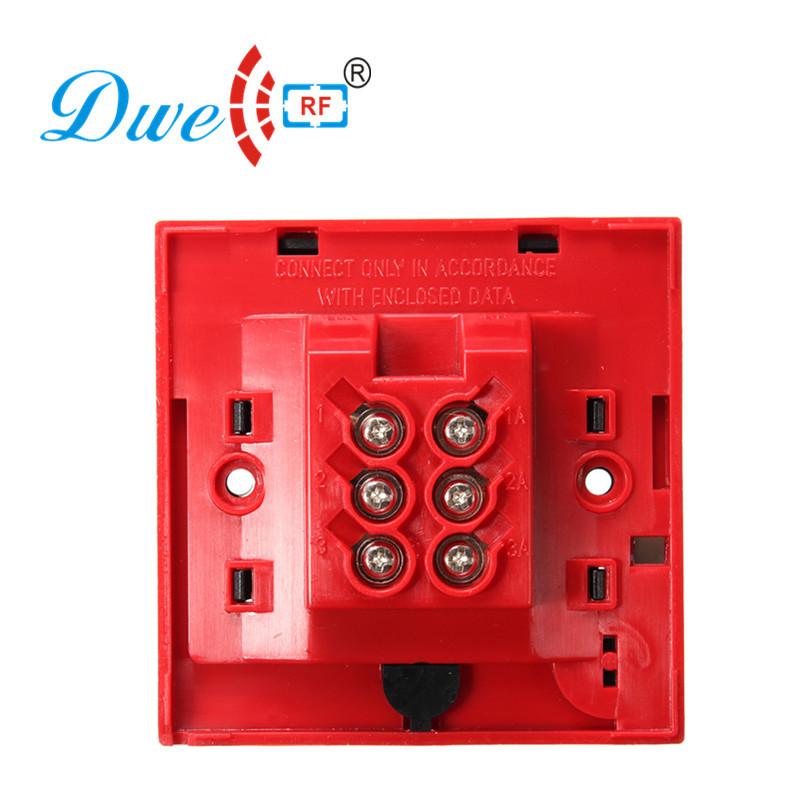

Emergency break glass exit button push button switch DW-B05 1
