Outflow Pressure Screen in Paper Processing Machinery

Outflow Pressure Screen in Paper Processing Machinery 1

Model:	EAS-1108
Brand:	EASTTAI
Origin:	Made In China
Category:	Industrial Supplies / Paper Machinery
Label:	pressure screen drum , pulping equipments , Outflow screen
Price:	US $8000 / pc
Min. Order:	1 pc

Inquire Now

Member Information

Easttai Industrial Limited

Free MemberShan Dong - China

Last Online:21 Oct, 2014

Product Description

Outflow Pressure Screen

Specification:

Item		EAS
Screen Area(m²)		0.3	0.5				1.0				1.2				1.5				2				2.5						3						4
Inflow Consistency (%)		1.0-1.8
Hole Screen	Diameter of Hole(mm)	Φ1.6-3.2
	Production(t/d)	25-40	40-70				50-90							65-120				90-150			140-200		170-250			190-290					210-400
Slot Screen	Slot Width(mm)	0.45-0.75
	Production(t/d)	15-30	25-50				45-80							60-90				75-110			90-145		100-180			120-200						140-300
Power(KW)		22	45				45							75				75			90		110			110-132						132-160
Inflow Consistency (%)		0.8-1.5
Hole Screen	Diameter of Hole(mm)	Φ1.2-2.4
	Production(t/d)	10-40	25-70				30-80							40-100				50-125			75-160		90-200			110-220					150-350
Slot Screen	Slot Width(mm)	0.25-0.55
	Production(t/d)	8-25				15-45				25-60				30-90				55-100			40-130		50-160						80-180			120-300
Power(KW)		15				30				30				45				55			75		90					90-110						110-132
Inflow Consistency (%)		0.5-0.8
Hole Screen	Diameter of Hole(mm)	Φ1.2-2.0
	Production(t/d)	10-30				15-50				20-60				30-90				35-110			45-130		90-200					100-220						120-280
Slot Screen	Slot Width(mm)	0.25-0.55
	Production(t/d)	5-20			10-40				15-50				20-80				25-110				28-120			60-160			80-180						100-250
Power(KW)		15		30				30				45				45				55		90			110					132

Supply scope:
Main machine(1 pc), motor(1 pc), diaphragm pressure gauge(2 pcs), V-belt(1 group),anchor bolt(4 sets), motor plate(1 pc), big belt pulley(1 pc), small belt pulley(1 pc)

Material:
The bar material of the screen basket is SUS316L. The parts touching with the pulp are stainless steel(SS)304. The inner surface is polishing treatment and the outside surface is sand blast. The base is Q235 steel welding. The shaft is 40 Cr thermal refining.

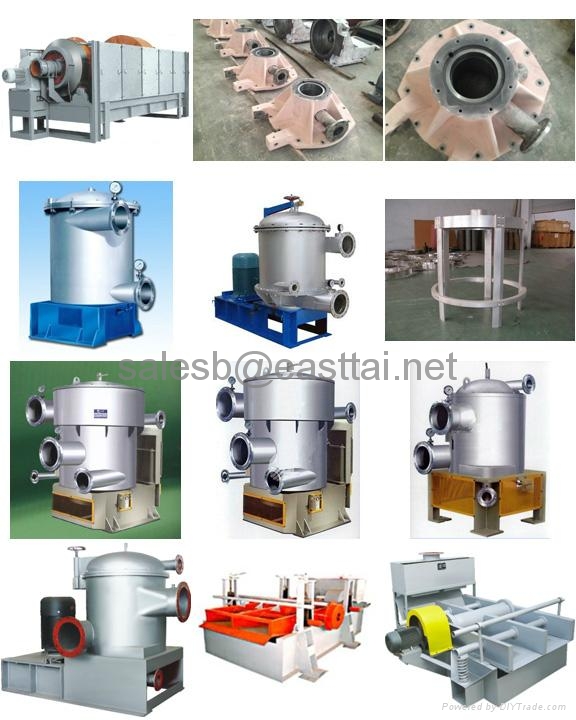

Product Image

Img 1

Img 2

Img 3
