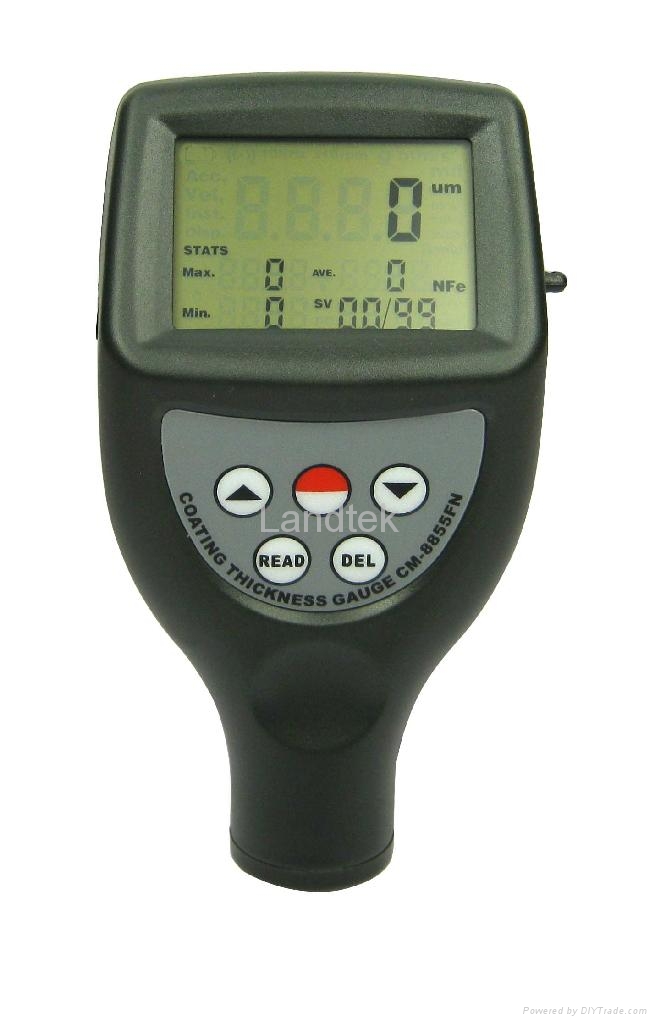

COATING THICKNESS METER   CM-8855
1.FEATURES
* It meets the standards of both ISO2178
and ISO 2361 as well as DIN, ASTM
and BS. It can be used both in the
laboratory and in harsh field conditions.
* The F probes measure the thickness of
non-magnetic materials (e.g. paint,
plastic, porcelain enamel, copper, zinc,
aluminum , chrome etc.) on magnetic
materials (e.g. iron, nickel etc.) . often
used to measure the thickness of
galvanizing layer, lacquer layer,
porcelain enamel layer, phosphide
layer, copper tile, aluminum tile, some
alloy tile, paper etc.
* The N probes measure the thickness of
n o n - m a g n e t i c c o a t i n g s o n n o n -
m a g n e t i c m e t a l s . I t i s u s e d o n
anodizing, varnish, paint, enamel,
plastic coatings, powder, etc. applied
to aluminum, brass, non-magnetic
stainless steel, etc.
* Automatic substrate recognition.
* Manual or automatic shut down.
* Two measurement mode: Single and
Continuous
* Wide measuring range and high
resolution.
* Metric/Imperial conversion.
* Digital backlit display gives exact
reading with no guessing or errors.
* Can communicate with PC computer
for statistics and printing by the
optional cable.
* Can store 99 groups of measurements.
* Statistics is available.
2.SPECIFICATIONS
Display: 4 digits LCD, backlit
Range: 0~1250 μm/0~50mil
(other ranges can be specified )
Min.radius workpiece: F: Convex 1.5mm/Concave 25mm
N: Convex 3mm/ Concave 50mm
Min. measuring area: 6mm
Min.Sample thickness : 0.3mm
Resolution: 0.1 μm (0~99.9μm);
1 μm (over 100μm)
Accuracy: -+1~3%n or 2.5 μm or 0.1mil
(Whichever is the greater)
Bttery Indicator: Low batter indicator.
PC interface: with RS-232C interface
Power supply: 2x1.5 AAA(UM-4) battery
Operating condition: Temp. 0~50C .
Humidity <95% .
Size: 126x65x35 mm;  5.0x2.6x1.6 inch
Weight: about 81g(not including batteries)
Standard accessories:
Carrying case ...................1 pc.
Operation manual ............ 1 pc.
F probe in built .................1 pc.
NF probe in built...............1 pc.
Calibration foils ..............1set.
Substrate (Iron) ................1 pc.
Substrate (Aluminium)......1 pc.
Optional accessories: RS-232C cable & software:
1.USB adaptor for RS-232C
2.Bluetooth  interface
