Waterproof metal standalone access control D008-C2

Model:D008-C2
Brand:Dwell
Origin:Made In China
Category:Security & Protection / Access Control System
Label:standalone access , access control , door access control
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Dwell Eelectronics Co.,Limited

Biz MemberHong Kong S.A.R
Live Chat:
点击这里给我发消息Last Online:08 Oct, 2023

Product Description

The product is Contact-less inductive card Metal Password Access ControllerAccording to the model, respectively support EM, MIFARE cards It is one of the most advanced stand alone access controller. It uses unique metal exterior design, Dexterity keyboard panel operation, Built-in high-grade microprocessors, Strong anti-interference ability, Safety and reliability is extremely high, can provide a powerful security for 2,000 users. It has strong functions, such as low power consumption, Luminous keyboard, independent passwords, wiegand output, the output short circuit protection, door magnetic alarm, prevent demolition alarm, exit button, the doorbell interface, level of security Settings, etc. widely used in home, office, residential area and other public places.





2. Features



   Low power consumption: less than 30mA standby current



   Luminous keyboard: the night can also operate keyboard



 User capacity: support 2,000 users



Independent password: can use password which irrelevant with the card to open the door



User modification password: Users can revise the door password



Search speed: charge to open the door time less than 0.1 S.



Output short circuit protection: electric lock or alarm output circuit within 100 μS when shut down automatically output



Wiegand output: With Wiegand output interfaceWg26 card number



Usable keyboard delete card number: After card is lost, usable keyboard delete card Thoroughly eliminate safety lapses



The demolition alarm: Illegal dismantling machine, built-in alarm sound buzzer



The bell button and interface: key and circuit segregation, external any the doorbell.





3. Technical parameters



Work Voltage DC9-28V



Static Current:≤30mA



Reading Range38cm



Capacity: 2000 users



Ambient Temperature-2560



Ambient Humidity10%90%



Electricity lock output:≤3A



Alarm output:≤20A



Output short circuit protection time:≤100μS



Open time0 ~ 99 seconds (adjustable)



Size120 *56*18mm

Weight : 500g

Box Dimension: 19*13*6CM


Payment Terms:TT/Western union/Escrow/Paypal/Cash/Trade Assurance

Product Image

Waterproof metal standalone access control D008-C2 1

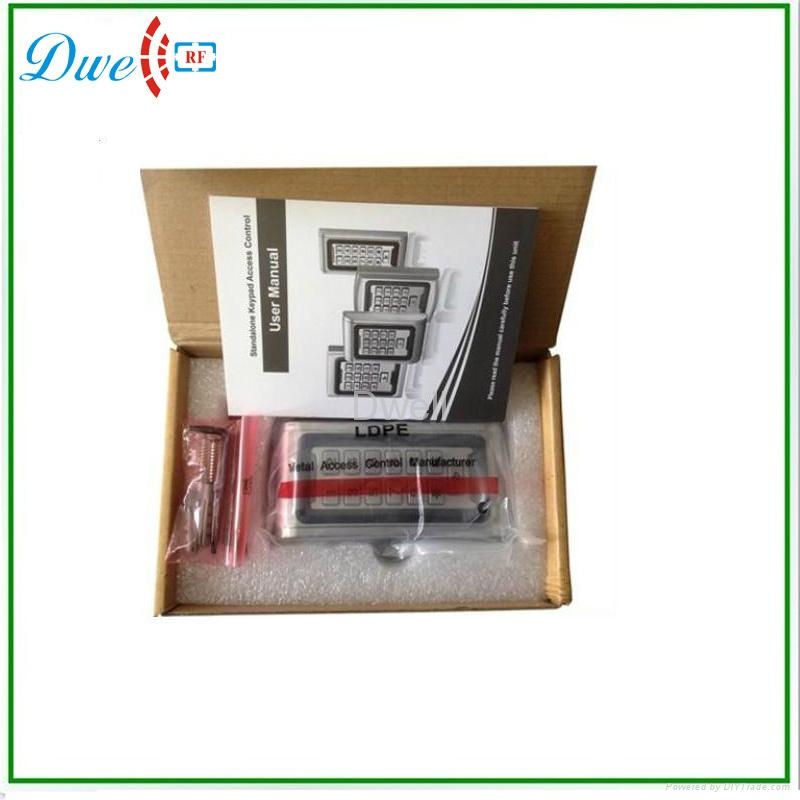

Img 1
Waterproof metal standalone access control D008-C2 2

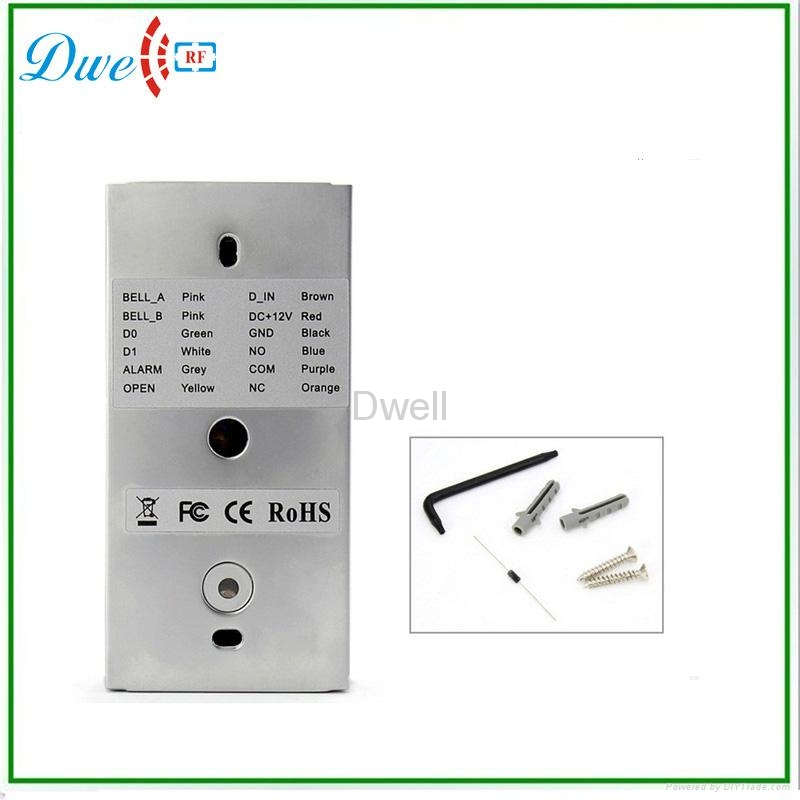

Img 2
Waterproof metal standalone access control D008-C2 3

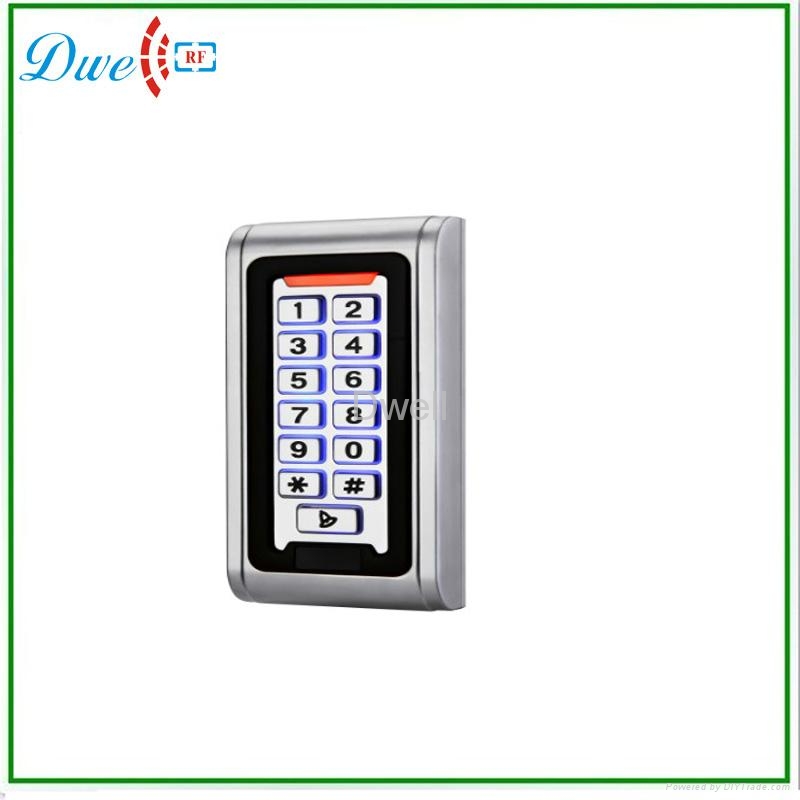

Img 3
Waterproof metal standalone access control D008-C2 4
Img 4
Waterproof metal standalone access control D008-C2 5
Img 5
Waterproof metal standalone access control D008-C2 6
Img 6
