| Model: | Series 100 |
|---|---|
| Brand: | Myuvled |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | Ink curing , UV Printer , UV Ink |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: | Last Online:03 May, 2017 |
Series 100 Air Cooled
The controller performance:
Power Supply: 100V~240V 50/60Hz
Dimension of controller: 412*192*238mm
Cable Diameter:7mm
Sever control:trigger signal

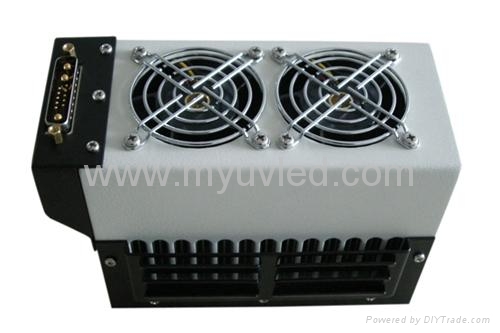

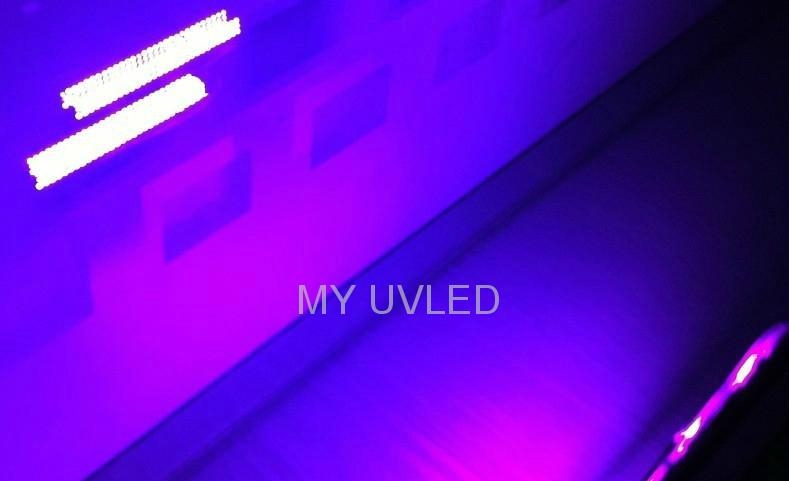

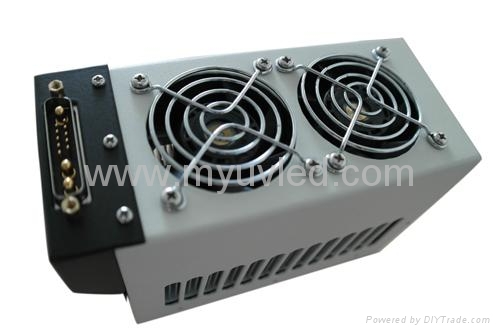

UV LED performance:
Dimension:190*175*108mm
Emitting window:100*33mm
Peak Irradiance: up to 3.2W/square cm
Wave length: UV385nm~400nm (special order for UV365nm and UV375nm)
Motivation speed:2.2m/second
Light adjustment: 30%~100% (adjust by sever)
Long service life typically >20,000hours
| Payment Terms: | TT |
|---|---|
| Packing: | one set /unit |
| Lead Time: | 7 weeks |
| SKU: | 4 |
| Standards Certificate: | CE,CCC |
