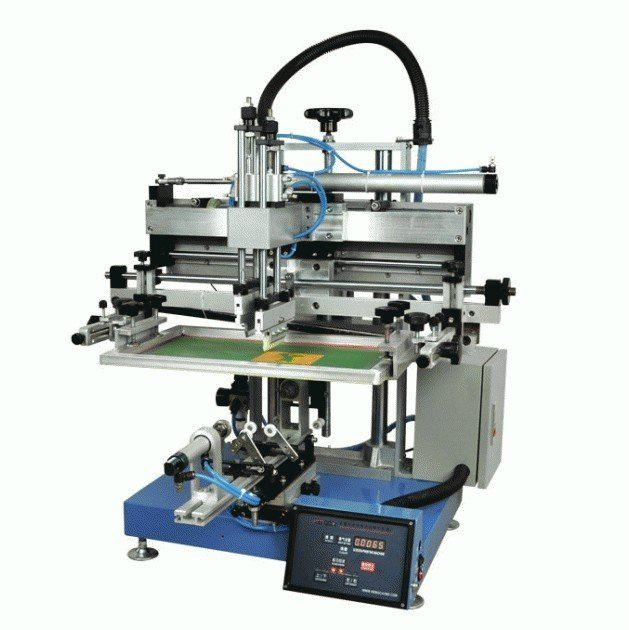

Desktop Cylindrical Screen Printing Machine
Product Description
The Mini cylindrical screen printing machine is adopted imported (Taiwan) pneumatic parts with quick speed, stable quanlity, lower noise, precise over-printing, 350mm stroke. It is suitable for printing the surface of round products with 100mm diameter, such as cosmetic products, chemical container, food packing cans and other related cylindrical products. As the volume is small, the application field is wide, the price is favourable, the machine is the most popular machine in the market. It is the best favourable machine.
Feature&Specification
1. Micro-computer controlling, high degree of automation, easy and convenient operation
2. Auto 4-digit counter built-in
3. it can print round and cone products
4. In order to meet kinds of printing requirements, the printing stroke and speed can be adjusted
5. the worktable can be fine-tuning by up and down, or left and right, and flat oscillative angle, high precise printing, conveniently and quickly to adjust
6. pneumatic printing controlling with adjustable pressure system
7. stable and reliable function mirco-computer controlling
8. unaided printing and ink reclaiming speed controlled
9. with huffing function, can print soft products
10. separate special mould for round and cone products
11. action mode option: fully-automatic|semi-automatic|manual
12: start-up method: panel|padel
13. drive method: pneumatic
14. left and right drive method: pneumatic
15: vertical stroke: 125mm
16: transverse stroke: 350mm
17: max printing area: 300mm(the length of circumference or cambered surface)*200mm (width)
18: printable diameter: 5~150mm
19: if printing whole circle, the maxium printing diameter is: 95mm
20: the maxium length of printed products: 250mm
Price Terms : FOB Shenzhen or Guangzhou
Payment Terms : Western Union ,T/T or L/C
Packing : Wooden case
Lead Time : Within 3 days
Standards Certificate : ISO9001-2000,CE
Machine Fittings:
1.One aluminium screen flame
2.One Manual in English
3.One set of tool
Package List
Wooden case :1050×850×1050mm
Gross Weight: 160kg
Ship Date
1.By sea
within 30 days after receive remittance
2.By air
within 6 days after receive remittance
Warranty
1.Cylinder can be changed for free within 1year,freight collect.
2.Other parts can be changed for free within 2years,freight collect.
3.Warranty period:3years
| Payment Terms: | Western Union ,T/T or L/C |
| |
Product Image
Img 1
