RS232 RS485 data radio modem

Model:DRF4432D20I
Brand:DORJI
Origin:-
Category:Electronics & Electricity / Remote Control
Label:data radio modem , wireless RS232 RS485 , Wireless PLC control
Price: -
Min. Order:-
Inquire Now Add to Basket

Member Information

Detail

Dorji Industrial Group Co.,Ltd

Free MemberGuang Dong - China
Live Chat:Last Online:11 Oct, 2018

Product Description

Features:

FSK transceiver Module
ISM frequency bands
38.4K bps data rate
Multiple channels
20dBm Max. output power
 Multiple channels
Baud rate configurable
4 bytes NetID & 2 bytes NodeID
Interface: TTL/RS232/RS485
Standby current < 5uA
Supply voltage 3.4~5.5V

DRF4432D20I is a low-cost sub-1 GHz transceiver module designed for operations in the unlicensed ISM (Industrial Scientific Medical) and LPRD bands. FSK (Frequency Shift Keying) modulation/demodulation, multi-channel operation, high bandwidth efficiency and anti-blocking performance make DRF4432D20I modules easy to realize the robust and reliable wireless link. The module can be configured to work in 40 channels with 1MHz channel space, which reducesthe interface from adjacent channels. It contains NetID and NodeID. Only modules with the same NetID can communicate. The NodeID of modules can be different and it doesn’t affect the normal
use. The ID is reserved for the future network module.

DRF4432D20I integrates 256 bytes buffer. When the buffer is empty, users can transfer 200 bytes data per time and even limitless data transfer can be achieved as long as RF data rate (RF module to RF module) is configured to be faster than UART data rate (MCU to RF module). The module provides standard UART/TTL interface for selection. Users can choose seven data rates and three parity checks which make DRF4432D20 possibly tailor-made for different applications. DRF4432D20I operates at 3.4~5.5V with extra low standby current which makes it suitable for battery powered-up applications.

Product Image

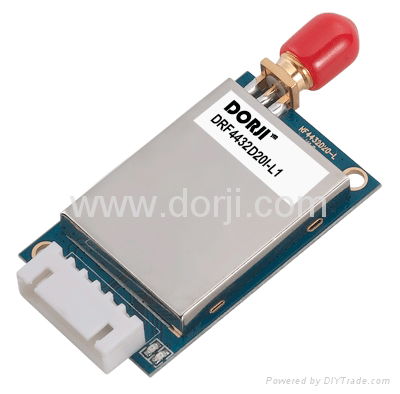

RS232 RS485 data radio modem 1
Img 1

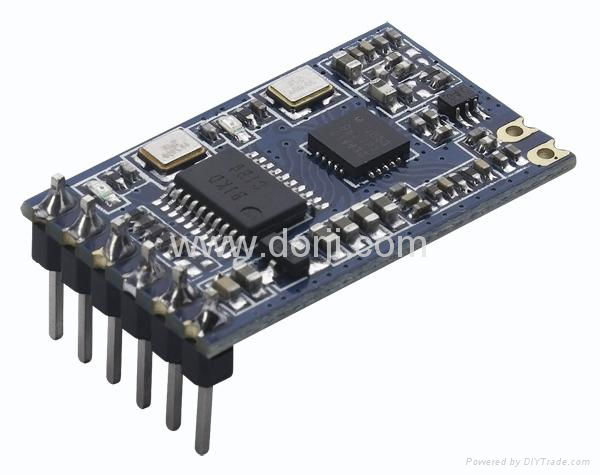

RS232 RS485 data radio modem 2
Img 2
RS232 RS485 data radio modem 3
Img 3
