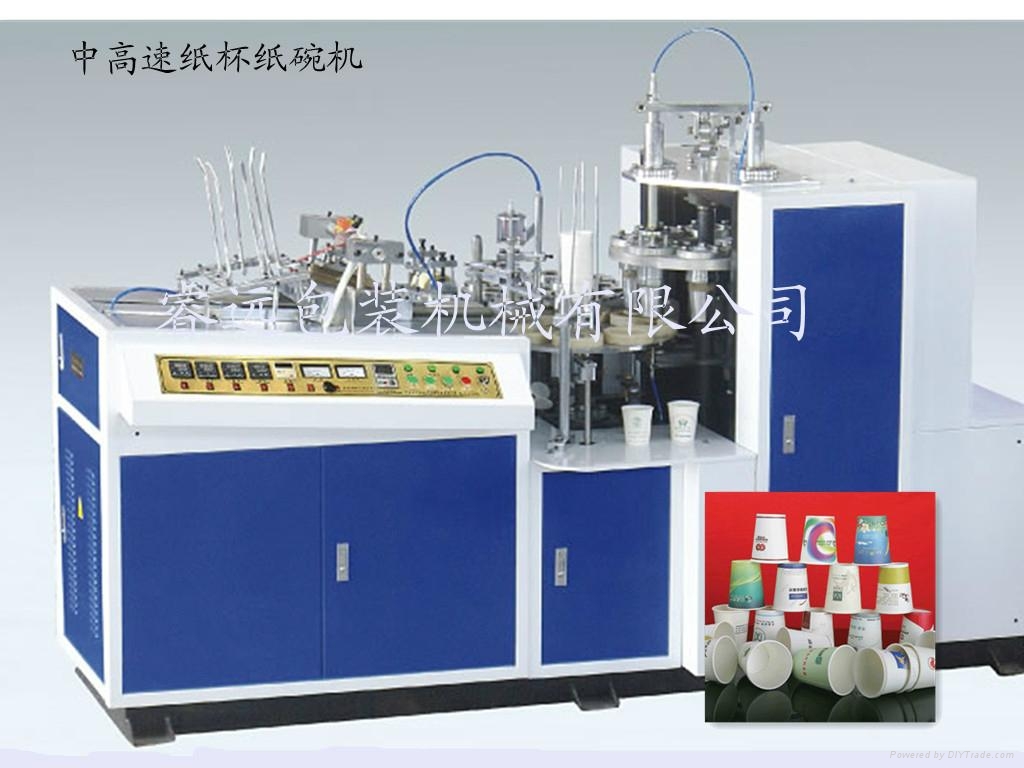

Paper Cup machine paper Bowl machine
Single shower film paper Cup machine is a more station automatically forming machine, it by automatically sent paper, and seal-in (seal-in cup wall), and note oil, and filled end, and heating, and roll spent, and volume edge, continuous process and photoelectric detection, and fault alarm, function, is production paper system of beverage Cup, and Tea Cup, and coffee cup, and advertising paper Cup, and ice cream Cup or other of food cone Taiwan described device of ideal device. Single-sided PE coated paper Cup machine is mainly used for the production of single-sided PE coating paper Cup (3 oz to 12 oz. If it is larger than 12 oz paper cups, then device designed to corresponding huge) feature detail and part forming process: continuously variable frequency conversion adjustment (speed easy adjustment), photoelectric control; automatic fault alarm according to the customer request design manufacture of mold, through reverse mould can produce various sizes of paper cups, one machine.
Main technical parameters: paper Cup specification (Paper Cup Size): 3, 4, 5, 6, 7, 8, 9, 10. 5, 12 ounces, and other specifications (if it is larger than 12 oz paper cups, then device designed to corresponding huge), other sizes
Paper materials (Suitable paper weight): side coated paper of 150-300g/square meters (more than 300G if single-sided PE PE coated paper, coated paper on both sides, plus ultrasonic device)
Fixed productivity (Speed of making parper cups): 45-60pcs/min
Power supply (Power source): may be used for 220V or 380V
Total power (Total Power): 4KW
Weight (Whole machine weight): 1500KG
Dimensions l x w x h (Appearance size l x w x h): 2500x1200x1400mm
