GSM-BH016(GSM magnetic antenna)

Model:GSM-BH016
Brand:Bohua
Origin:Made In China
Category:Electronics & Electricity / Antenna
Label:GSM antenna , APMS antenna , car antenna
Price: US $2.6 / pc
Min. Order:50 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Bohua electronic co.,ltd

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:04 Jan, 2023

Product Description

Specifications;
Center frequency 824MHz~894MHz(amps)
880 MHz~960MHz(GSM)
1710MHz~1990MHz, 2110-2170MHz
V. S. W. R 2.0: 1
Impendence 50 ohm
Typical gain 2dbi+/-1dB@850MHz; 2dbi+/-1dB@900MHz
1dbi+/-1dB@1800MHz; 1dbi+/-1dB@1800MHz
V. S. W. R <2.0
Weight <200 gram

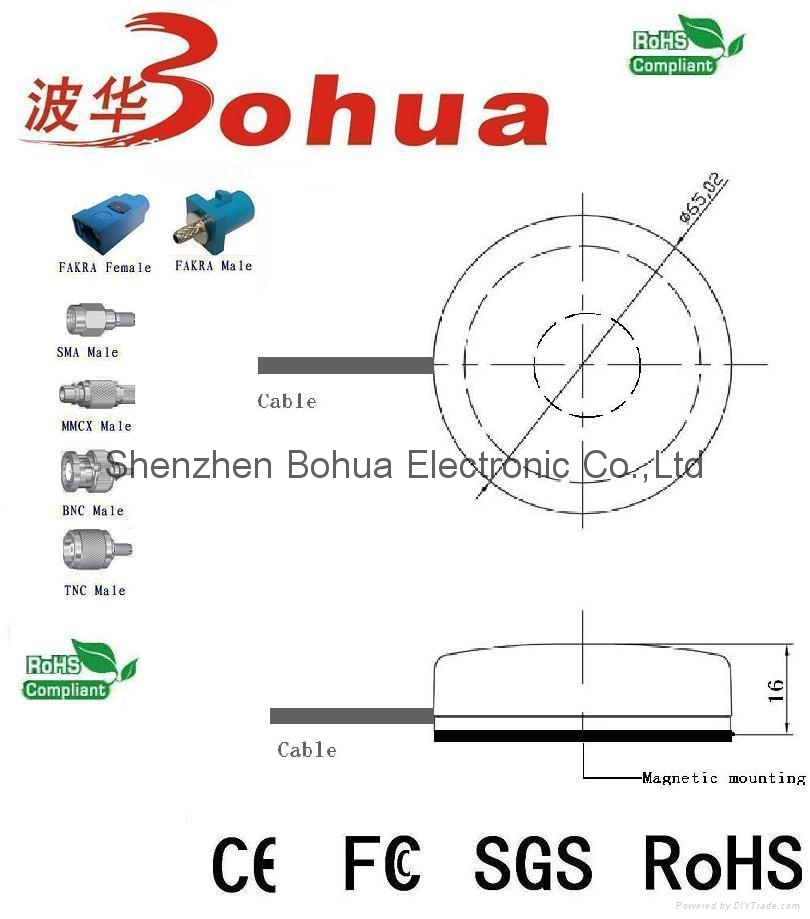

Size: 65(D)X15(H)mm
GSM---RG174 2meter, 5meter long or other
Connector: SMA/SMB/BNC/TNC/MCX/MMCX/SMC/FME/CRC9(Huawei) or other.
Mounting: Magnetic mounting.
Housing: Black or white or others Five. Environmental
Working temp. -40~+85
Storage temp. -45~+100
Vibration sine sweep 1g(0-p)10~50~10Hz each axis
Humidity humidity 95%~100%rh
Weatherproof 100% waterproof

Price Terms:FOB Shenzhen
Payment Terms:TT in advance
Packing:50pcs/box
Lead Time:3-5days
Standards Certificate:CE and ROHS

Product Image

GSM-BH016(GSM magnetic antenna) 1
Img 1
GSM-BH016(GSM magnetic antenna) 2
Img 2
