Flexible Stainless Steel Conduit Connectors/Fittings
Product Description
|
Flexible Stainless Steel Conduit Connectors/Fittings
Panel Mount Connector
The panel connector is designed to fit onto the squarelocked tubing and is secured with set-screw. Internal threads of connector match pitch of tubing.
Features
•For terminating tube into a panel or box
•Prevents damage to optical fibers
•Easy assembly and removal
•Resistant to high-heat environments
- Material: brass, nickel plated
- Includes lock nut
|
Model
|
B
(mm)
|
D
(mm)
|
E
panel thread
|
H
(mm)
|
I
(mm)
|
|
TF-1.8
|
14
|
8
|
M4 x 0.7
|
1.8
|
4
|
|
TF-2.6
|
14
|
8
|
M5 x 0.8
|
2.6
|
5
|
|
TF-3
|
14
|
8
|
M5 x 0.8
|
3.2
|
6.5
|
|
TF-4
|
14
|
8
|
M6 x 1
|
4
|
8
|
|
TF-5
|
14
|
8
|
M8 x 0.75
|
5
|
9
|
|
TF-6
|
18
|
10
|
M8 x 0.75
|
6.1
|
10
|
|
TF-7
|
18
|
10
|
M10 x 1
|
7
|
12
|
|
TF-8
|
17
|
9
|
M12 x 1
|
8
|
13
|
|
TF-9
|
20
|
12
|
M14 x 1
|
9.5
|
17
|
|
TF-10
|
20
|
12
|
M14 x 1
|
9.5
|
17
|
|
TF-11
|
23
|
14
|
M16 x 1
|
11
|
19
|
|
TF-13
|
23
|
15
|
PF 1/2
|
13
|
23
|
|

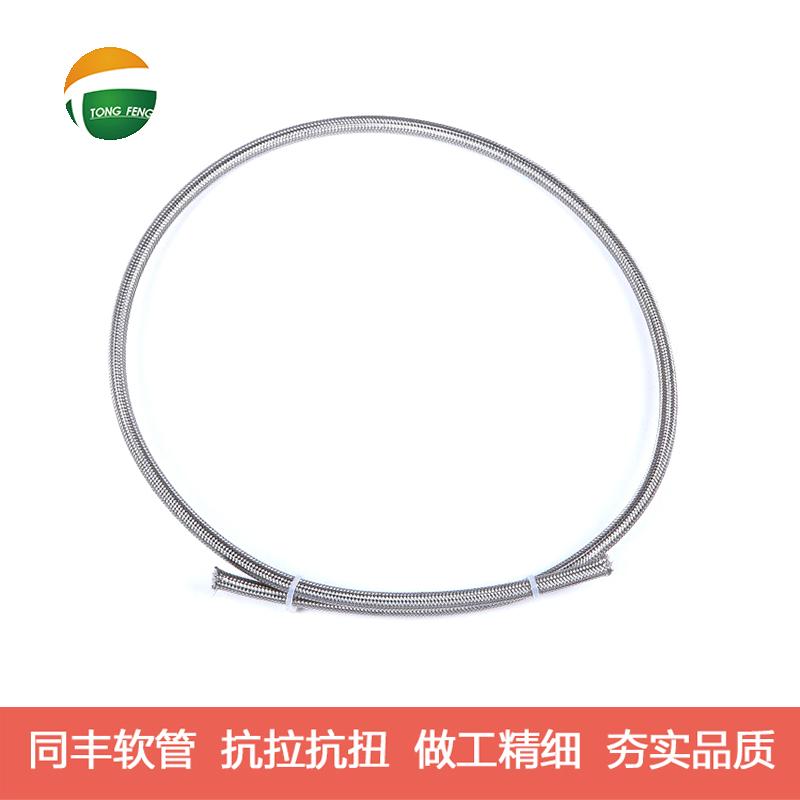

Product Image
