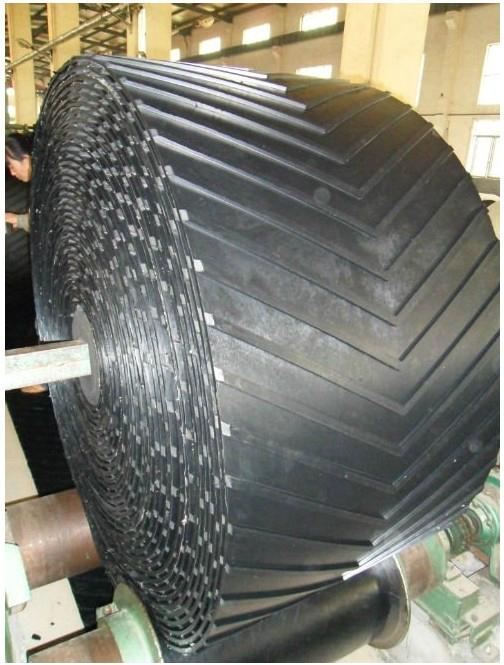

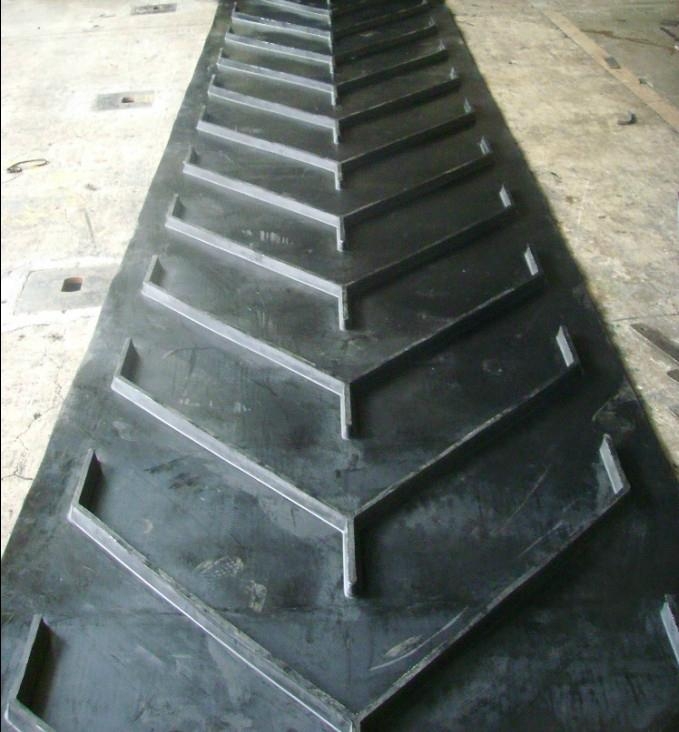

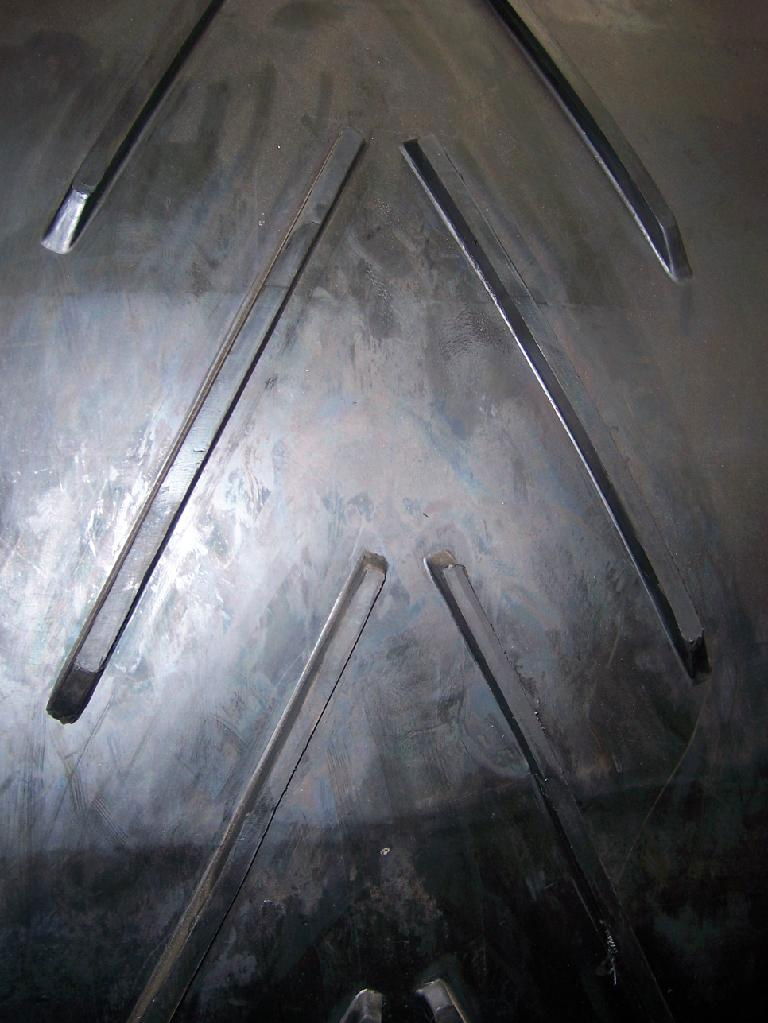

The chevron conveyor belt are used for carrying wet, loose sand and grain materials in bugs. The v-shape of the chevron cleats prevents the material from sliding back. The salient features of the belt are:

• Can carry loose materials at angle of 17-18 and bagged material at 30-35
• Cleat angle and pitch are designed for smooth travel over return idlers
• Cleats and the top cover rubber are mono block molding for strength
• Chevron conveyor belts are used primarily when the angle of incline becomes too steep for a smooth conventional conveyor belt. The belt is fitted with integrally moulded cleats which prevent the material from sliding backwards as would be the case with a smooth surface belt. Different cleat designs allow the carrying of many types of material, from bulk solids to unit loads.
• Application: There are open type and closed type, suitable for bulk or bagged materials such as powder and granule with incline less than 45 C.
• Technical Data of Rubber Cover:
  Tensile Strength: ≥10Mpa
  Elongation at Break: ≥350%
  Adhesive strength between carcass: ≥6.0N/mm
  Adhesive strength between cover and carcass: ≥3.0N/mm
   Elasticity: ≥32%
  Abrasion: ≤200mm3
