| Model: | RX-BKT28-3535 |
|---|---|
| Brand: | Xinelam |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Lighting / Light Box |
| Label: | mini LED module , Single led module , Module led lighting |
| Price: |
US $5.1
/ Set
|
| Min. Order: | 100 Set |
| Live Chat: | Last Online:07 Mar, 2024 |

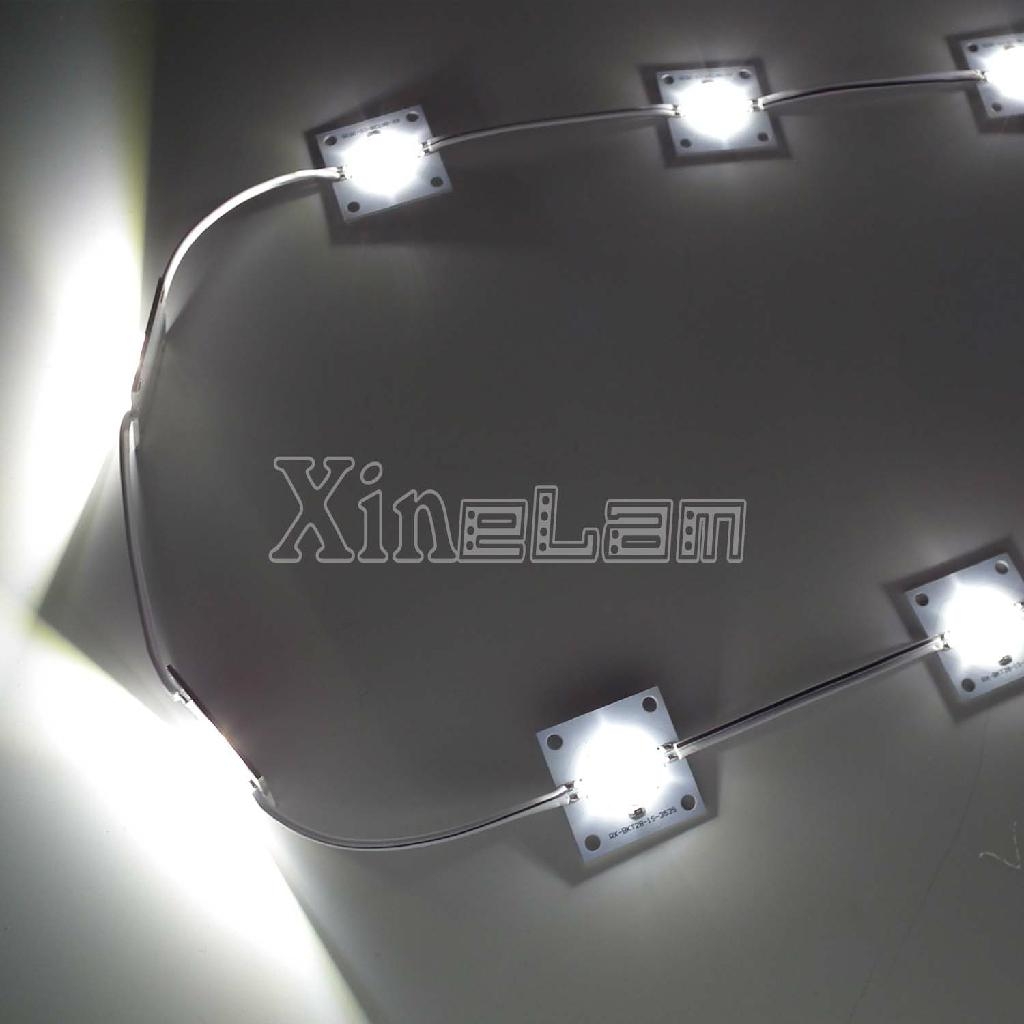

LENS Single LED module for channel letter,dc24v
| Product Description: |
Xinelam brand Single LED Module have the versatility of our SMD Modules but with the added feature of their extremely small nature they are ideal for use in places where there is not a lot of space such as:
Each Module has 3M Self-Adhesive backing pre-fitted for fast installation.
Available in White (6000-6500K), Warm White (2800-3200K), And Nature White(3800-4250k)
| Specifics: |

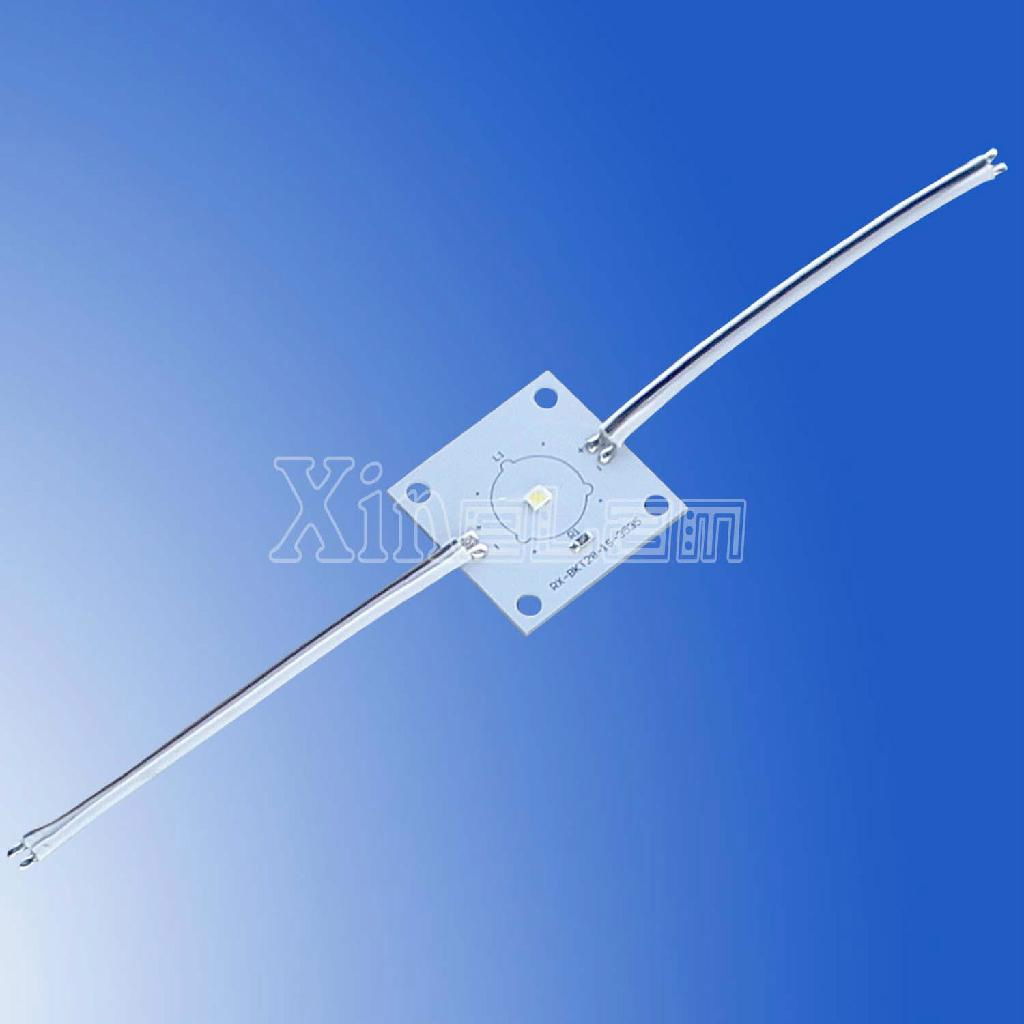

| Product: | RX-BKT28-1S-3535 One LED Module |
|---|---|
| Wattage | 0.65w/Module 1led=6chips |
| Voltage | 24v |
| Size | 35x35x2.6mm |
| Colours | White(6000-6500k),Available WW(2800-3200k),NW(3800-4250k) |
| IP Coating | No IP rated, available conformal coated Ip66 |
| Beam Angle | 120° (optional 160°) |
| SMD Chip | 2835 SMD chip |
| No. of LEDs | 1LED per Module |
| Lumens | 65Lm/Module (6000-6500k) |
| CRI | >80 |
| LED Life | 50.000hrs |
| Length of connecting Wire | 18cm |

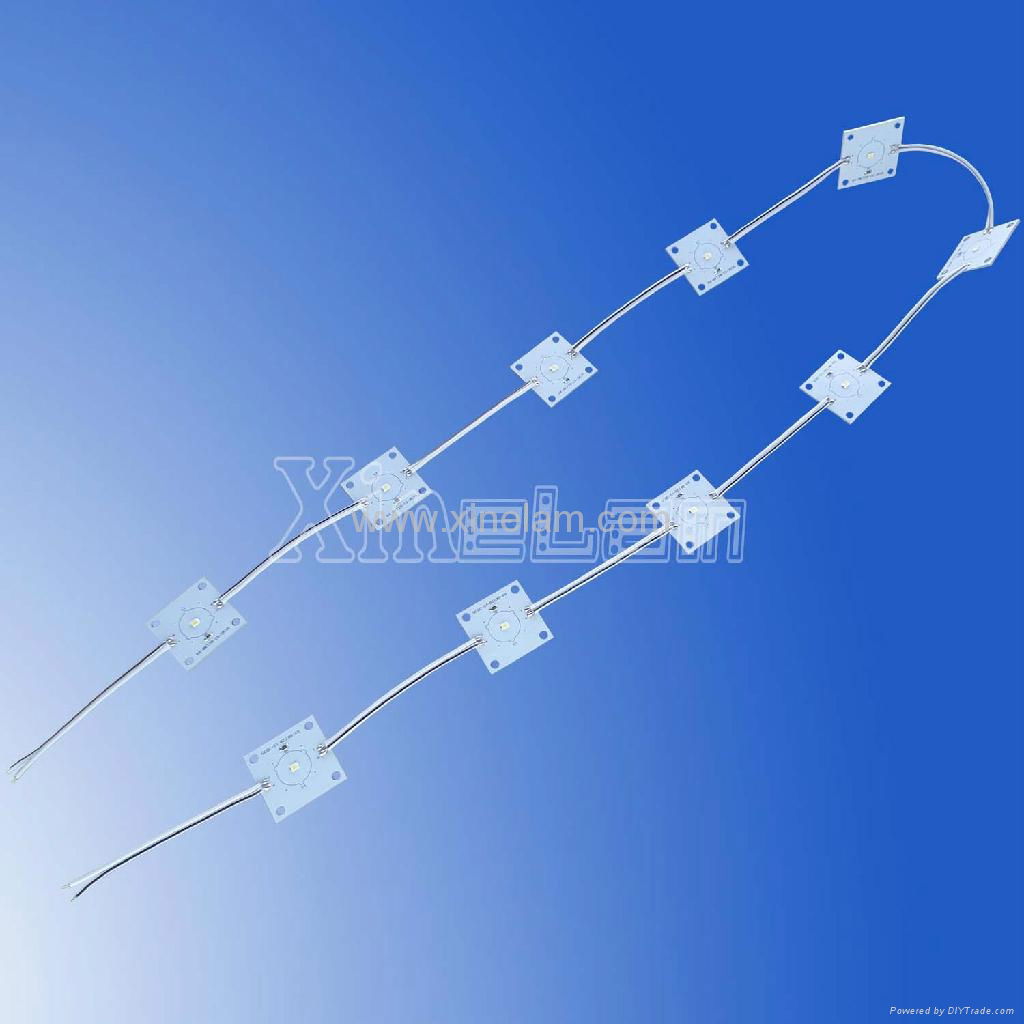

| Modules in complete chain | 10pcs standard,max 100pcs |
| Payment Terms: | TT in advance |
|---|---|
