Mini ITX Motherboard Based on Intel®NM10 Chipset

Model:MITX-6930
Brand:NORCO
Origin:Made In China
Category:Computers & AV Digital / Computers / Embedded Computer & SCM
Label:embedded motherboard , motherboard , Mini ITX Board
Price: -
Min. Order:4 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen NORCO Intelligent Technology Co., Ltd

Free MemberGuang Dong - China
Live Chat:Last Online:03 May, 2012

Product Description

 Key features:
1. Adopt Intel® NM10 chipset, onboard Intel® Atom N2800/D2700 processor 2. 1*SO-DIMM slot supports DDRIII 1066MHz memory up to 4GB 3. DVI-I, DS display output, DVI/VGA dual independent display supported 4. Provide 2*SATA;1*Mini-PCIe supports SSD 5. 6*serial ports,,6*USB 2.0,7.1 HD AUDIO,2*Gigabit Ethernet 6. 1*PCI, 2*Mini-PCIE, onboard SIM card socket for 3G module

detailed specification:

System
Motherboard Type Mini-ITX
Processor Onboard Intel Intel® Atom N2800/D2700 Processor
System Memory 1*DDRIII 1066MHz SO-DIMM SLOT , up to 4GB
Chipset Intel®NM10
I/O Chip ITE IT8783F
Ethernet Intel ®82574L, 10/100/1000Mbps,2x RJ-45
BIOS AMI EFI BIOS
Wake-on-LAN Support
Watchdog Timer Generates a time-out system reset
H/W State Monitoring Monitor the state of voltage, temperature and rotational speed of the fan
Expansion 2xMini-PCIe ; Mini-PCIe2 supports SIM Bus interface, Mini-PCIe1 supports SSD ; Onboard SIM card socket for 3G module
Battery Lithium Battery
Power Supply ATX
Dimension 170mm×170mm
Operating Temperature -20~70 Celsius Degree
Storage Temperature -40~80 Celsius Degree
Operating Humidity 0%~90% relative humidity, no condensation
Display
Controller Intel®N2800/D2700 integrated
Video Memory
Resolution VGA : max. resolution 2048x1536@60MHz
DS : max. resolution 1366x768@60MHz
DVI : max resolution 1920x1200@60Hz
Display Interface 1x VGA,1x DS,1x DVI,

Product Image

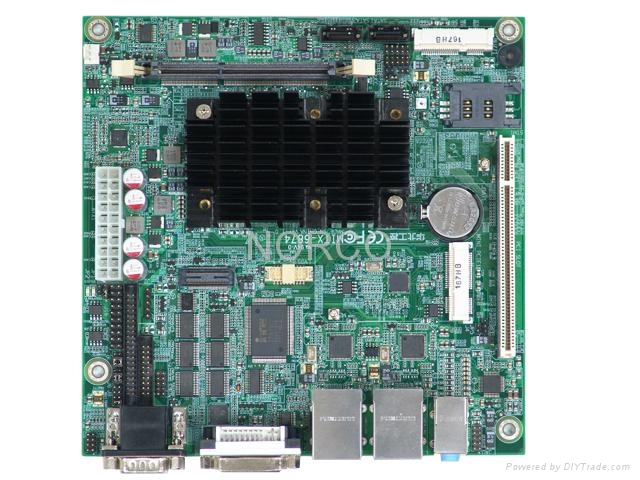

Mini ITX Motherboard Based on Intel®NM10 Chipset 1
Img 1
Mini ITX Motherboard Based on Intel®NM10 Chipset 2
Img 2
Mini ITX Motherboard Based on Intel®NM10 Chipset 3
Img 3
