3G-BH0005(3G magnetic base/screw antenna)

Model:3G-BH0005
Brand:Bohua
Origin:Made In China
Category:Electronics & Electricity / Antenna
Label:3G antenna , UMTS antenna , antenna
Price: US $2.5 / pc
Min. Order:10 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Bohua electronic co.,ltd

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:11 May, 2020

Product Description

Patent number:ZL 2011 3 0498471.1

Part number:3G-BH0005

3G antenna
Specification:
3G mobile data card antenna, GSM antenna, WiFi antenna, umts antenna
Specifications;
Center frequency 824MHz~894MHz(amps)
880 MHz~960MHz(GSM)
1710MHz~1990MHz, 2110-2170MHz
V. S. W. R 2.0: 1
Impendence 50 ohm
Typical gain 2dbi+/-1dB@850MHz; 2dbi+/-1dB@900MHz
1dbi+/-1dB@1800MHz; 1dbi+/-1dB@1800MHz
V. S. W. R <2.0
Weight <200 gram

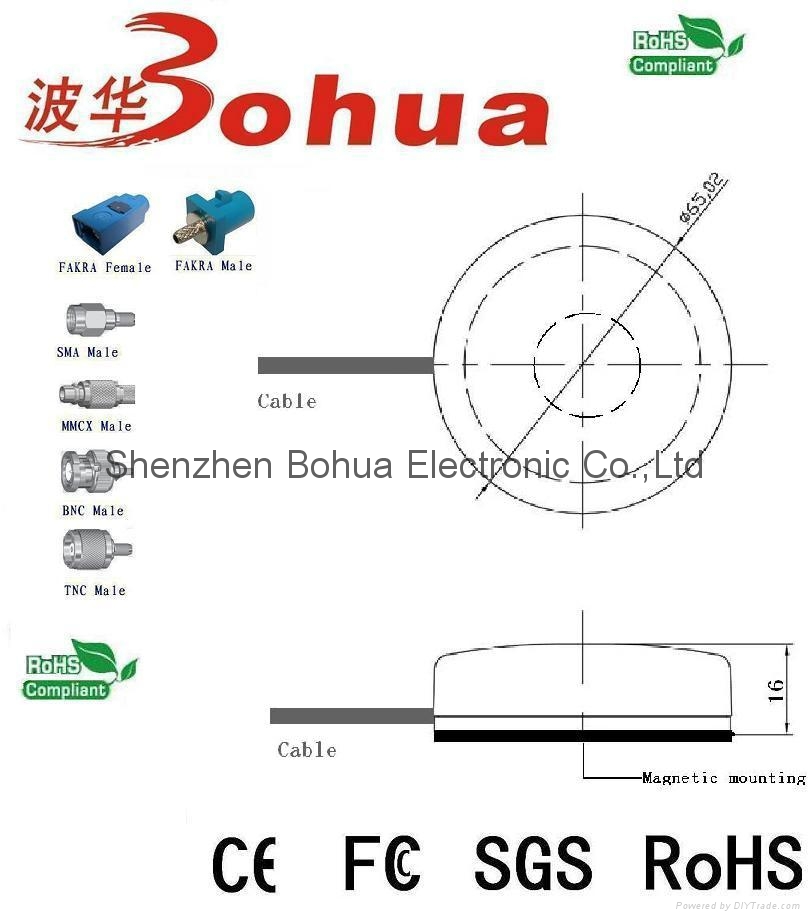

Size: 65(D)X15(H)mm
GSM---RG174 2meter, 5meter long or other
Connector: SMA/SMB/BNC/TNC/MCX/MMCX/SMC/FME/CRC9(Huawei) or other.
Mounting: screw mounting.
Housing: Black or white or others Five. Environmental
Working temp. -40~+85
Storage temp. -45~+100
Vibration sine sweep 1g(0-p)10~50~10Hz each axis
Humidity humidity 95%~100%rh
Weatherproof 100% waterproof

Price Terms:FOB Shenzhen
Payment Terms:T/T in advance
Packing:150pcs/box
Lead Time:3-5 days after getting payment
Standards Certificate:FCC,CE and ROHS

Product Image

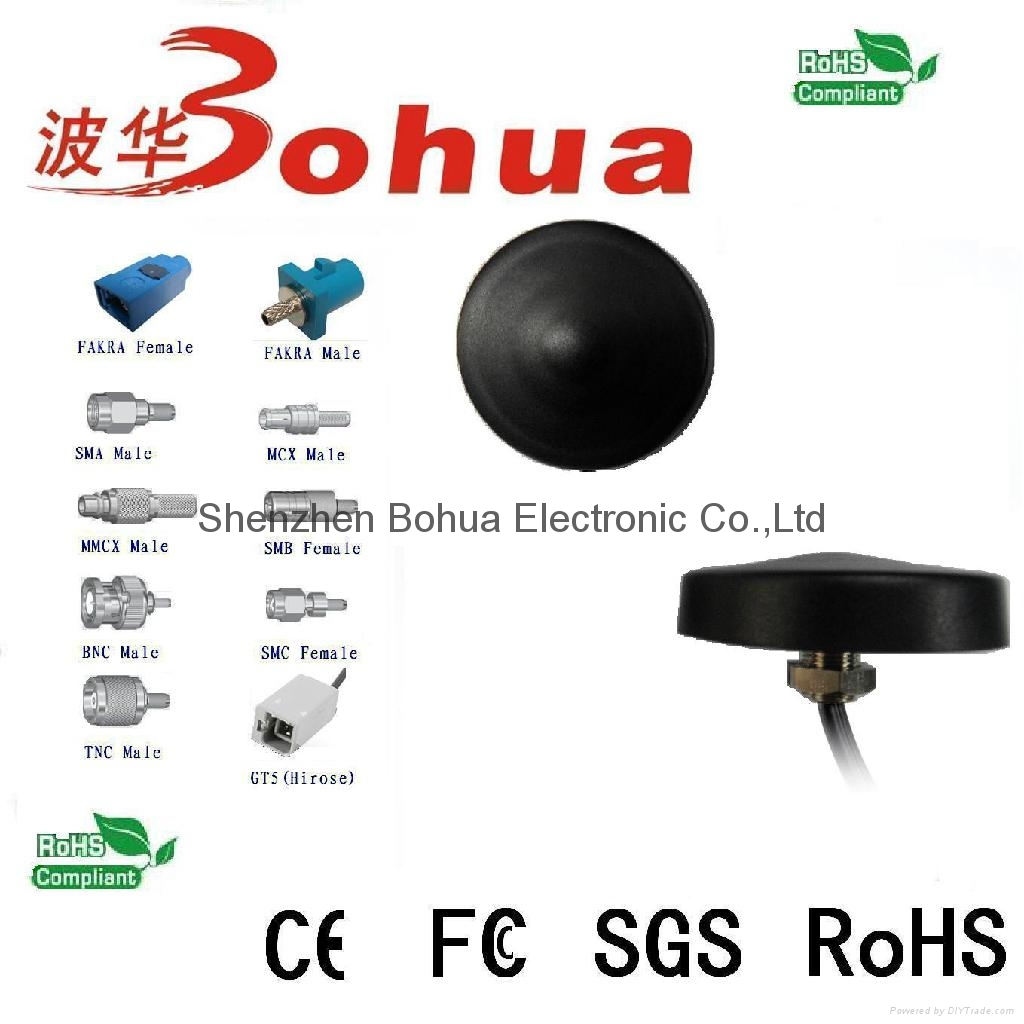

3G-BH0005(3G magnetic base/screw antenna) 1
Img 1
3G-BH0005(3G magnetic base/screw antenna) 2
Img 2
3G-BH0005(3G magnetic base/screw antenna) 3
Img 3
