| Model: | CS600 |
|---|---|
| Brand: | TianYing |
| Origin: | Made In China |
| Category: | Security & Protection / Surveillance Equipment |
| Label: | thermal camera , surveillance camera , security camera |
| Price: |
-
|
| Min. Order: | 5 pc |
| Live Chat: | Last Online:17 May, 2024 |

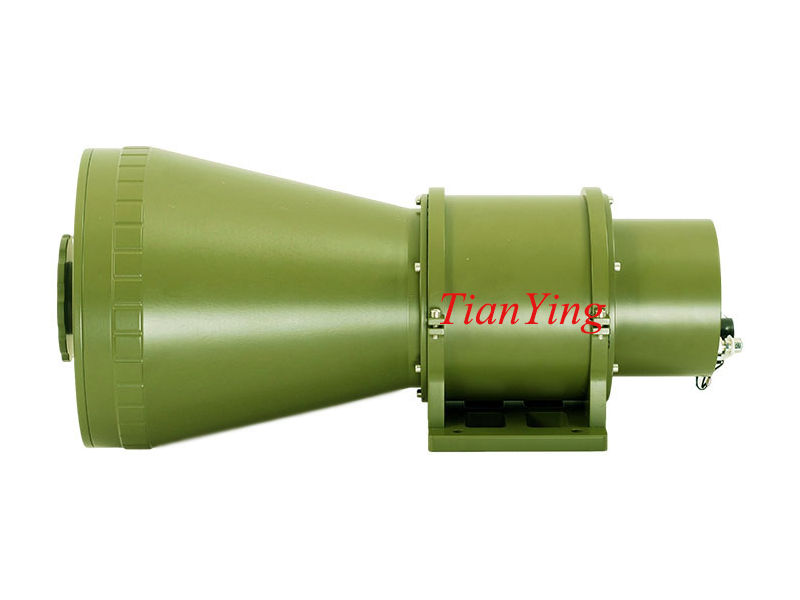

China TianYing CS600 30~600mm coaxial zoom cooled thermal imaging cameras were engineered to aim and align targets, deliver target do not move when zoom in -45°C to +70°C, especially designed for use by high accuracy tracking, measuring and aligning target system integrator.
The CS600 utilize maximum sensor range performance by using proprietary continuous fields-of-view lens, highly sensitive sensors and unique video enhancement algorithms. that offer 18 degrees FOV, high reliability, sharp clarity image, recognition human 7km and detection human 11km - 640x512.
The camera features a 20x accurate coaxial zoom long range high reliability cooled thermal camera with very compact size, that is very convenient alone use and easy integrated into airborne, maritime, and land tactical platforms system.
CS600 extreme long range surveillance coaxial zoom thermal imaging camera Recommended Use:
1. Long range accuracy measurement aiming.
2. Long range accuracy weapon sight.
3. Long range accuracy defense.
4. Long range accuracy target tracking.
5. Anti-missile.
CS600 long range surveillance coaxial zoom cooled thermal cameras Specifications:
| Model | C600 |
| Detector Parameters | |
| Detector type | Cooled FPA HgCdTe |
| Pixels | 640x512 15μm×15μm |
| Spectral Range | 3.7μm~4.8μm |
| NETD | ≤ 25mK ( F/4.0 6ms typical < 20mK) |
| Cooling type | Stirling Cycle Cooling |
| MTTF | >10000 hours |
| Optics Parameters | |
| Focus Length | 30mm to 600mm. |
| FOV | 0.91° x 0.73° ~ 18.3° x 14.7° |
| Through-zoom boresight | ≤ 5 pixels deviation (typical 3pixels), option other acuracy. |
| Image Presentation | |
| Analog video output | PAL, option NTSC. |
| Digital video output | CameraLink |
| Frame frequency | 30Hz, option 50Hz/60Hz,100Hz/120Hz. |
| Brightness Contrast | Auto/Manual |
| Polarity; | BH/WH |
| Interfaces | |
| Command and control | RS422, option RS232 |
| Power Parameters | |
| Power supply | 24V to 36V DC |
| Consumption | ≤15W at 25ºC |
| Environmental Parameters | |
| Operating temperature | -40ºC~+60ºC |
| Storage temperature | -50ºC~+70ºC |
| Quality | GJB150 |
| Physical Parameters | |
| Weight | ≤13kg |
| Length | ≤ 550mm, option ≤ 420mm |
| Color | Black |
| Range Performance | |
| Detection/ recognition human range | Approx 11 km / approx 7km. |
| Detection/recognition 3m x 6m vehicle | Approx 16 km / approx 14km. |
| * - Note: | *Technical information is subject to change without notice.
** - Depending on the region of sale. |
When working range is more than 15km, then theory range data will decline rapidly, this is why 750mm, 1000mm and 1200mm focus 640x512 cooled thermal cameras detect range that is approx. 20km(vehicle) in normal weather condition, we already test 750mm focus, 1000mm focus, 1200mm focus, and 1650mm focus 640x512 cooled thermal camera working distance.
Custom WFOV to Ultra Extreme NFOV Long Range cooled thermal MWIR mid wave lenses are available, including 300mm diameter big lens.
