Product Introduction

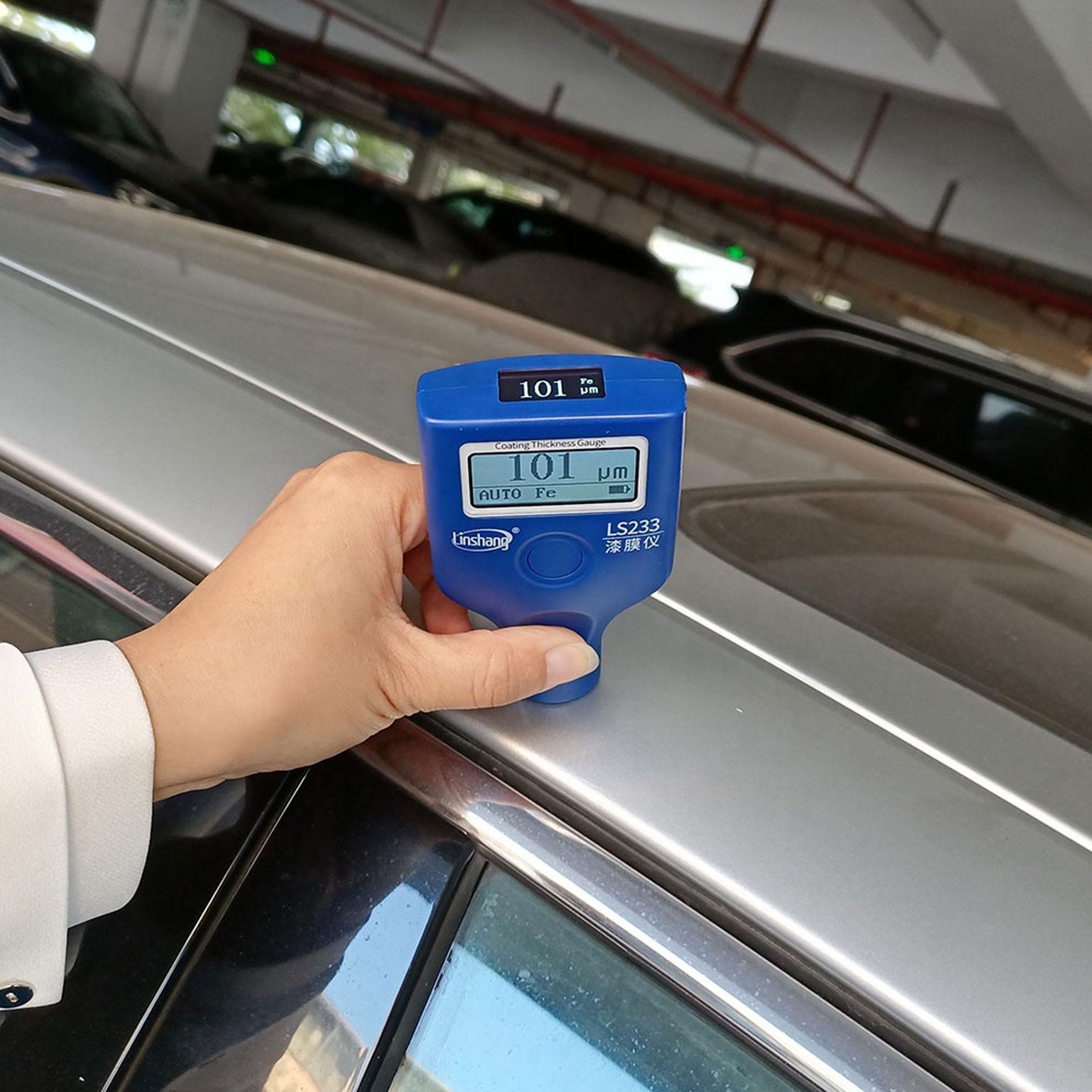

LS233 automotive paint meter is a low-temperature-resistant car paint thickness measuring instrument equipped with two displays. It can be used normally at an ultra-low temperature of -40℃. The dual-screen design can ensure that users can quickly read when measuring cars at any angle. The paint film measuring instrument adopts the dual principles of Hall Effect and eddy current. It is dual-use for both ferrous (iron) and non-ferrous (aluminum) metal substrate. It can automatically identify iron and aluminum substrates and non-metallic substrates. It is easy to operate, compact and portable. Using this automotive paint meter, car appraisers can easily solve their problems of car evaluation.

Product Characteristics

1. The reading is effortless. Adopting the front (LCD) and top (OLED) dual-screen design, the automobile paint thickness can be measured using any angles.

2. Available at low temperature of -40℃. The top is equipped with a low temperature resistant OLED screen, which can display the measured data normally at a low temperature of -40°C. (The working temperature of the front LCD screen is -20℃~50℃)

3. The measurement is fast. 0.5 s measurement interval, sensitive response, fast and efficient.

4. Dual use for both ferrous and non-ferrous mode. The instrument can identify iron and aluminum bodies and non-metallic substrates and automatically switch the measurement mode.

5. Wear-resistant and durable. The probe tip uses high-hardness ruby to ensure a long service life.

6. Accurate and stable. With digital probe and temperature compensation design, the measurement is not easily disturbed and provides excellent accuracy and repeatability.

7. Easy to use. Single-button operation, no calibration required, measurement can be started after simple zero adjustment.

8. "Fe", "NFe", "Fe/NFe" three modes, Chinese and English bilingual. μm/mil can be switched.

Technical Parameters
