| Model: | HB-FR607T |
|---|---|
| Brand: | QUANSHI |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Other Consumer Electronics |
| Label: | Thermometer , Attendance Machine , Face Recognition |
| Price: |
US $800
/ pc
|
| Min. Order: | 10 pc |
| Live Chat: | Last Online:31 Mar, 2020 |

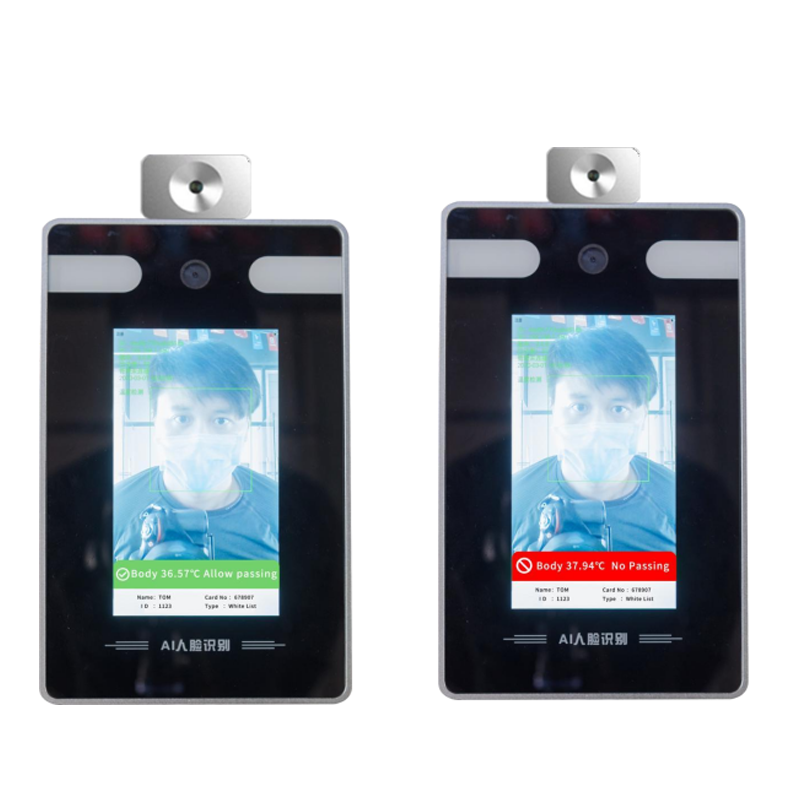

The new generation of body temperature detection technology has been well developed by us, it is based on AI face recognition to prevent Novel coronavirus and direct contact transmission. Our high-precision detection algorithm can accurately detect the body temperature whether wearing a mask or not.
It integrates image acquisition, face detection, face tracking and face contrast, and human body temperature detection. High rate, fast recognition speed and detectionspeed.
Accurate Temperature MeasurementAccuracy ±0.3ºC
Face Recognition with MasksHigh-precision face recognition rate
(>95%) with masks
Fast Recognition SpeedRecognition speed< 300ms per times
Automatic recording
Real-time recording of face+ temperature detection information
High Temperature Alarm
The device(sound/image) and Background will simultaneously warn when the detection temperature is higher than 37.3 degrees
Strong Algorithm Algorithm of liveness recognition, store up to 10,000 faces data
Smart Fill LightAdjust the brightness of the fill light according to the site and perform the second fill lightClient-end/Cloud Manage- mentComprehensive enrollment and management from PC, device,
APP, Cloud web server
| Type | Name | Specification |
Basic Parameters |
Model | HB-FR607T |
| CPU | Quad-core A17, 1.8GHz | |
| Sensor | 1/2.7'' CMOS Image Sensor | |
| Display | 7''TFT 1024 x 600, USBcamera with 3Mpixels,
support HDR |
|
| RAM | DDR-III 2GB (Maximum support 4GB) | |
| Built-in memory | EMMC 8GB (Maximum support 128GB) | |
Performance |
Hybrid recognition | Face/ Card |
| Dynamic recognition | Supports 10,000 human faces, 1:N | |
| Recognition Accuracy | ≥ 99% | |
| Recognition time | <300ms/person | |
| Recognition distance | 0.5m-4m | |
| Fill light | Support fill light | |
| Technology | Face Tracking, Face Verification, Face Anti-Spoofing,
Silent live detection |
|
| Software function | Personnel Management, Data Synchronization,
Access record query &export |
|
| communications | FTP | |
| USB interface | USB 2.0 | |
| Power Supply | Input: 100V-240V, Output: DC 12V / 2A | |
| OS | Android 5.1.1, Android 6.0 | |
General Parameters |
Dimension | 260*160*26mm |
| Material | Aluminum alloy (Sandblasting oxidation) | |
| Working Temperature | -20ºC~+70ºC | |
| Relative Humidity | <95% | |
| Protection Level | IP55 | |
Body Temperature Detection |
Detection distance | 0.3-1m |
| Deviation | ±0.3ºC | |
| Voice broadcast | Support body temperature abnormal alarm | |
| Temperature detection method | Non-contact infrared | |
| Range of application | Indoor | |
| fov | 90°*90° | |
| Thermopile array | 32x32 |
Application places
School Shopping center Hospital Residential area Supermarket Off ice buildings
